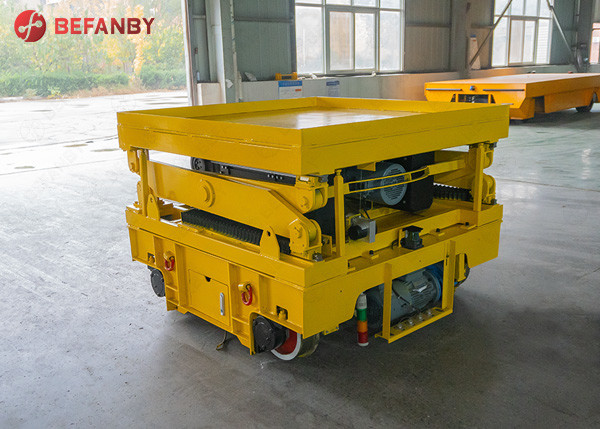

    Scissor Lift Low Voltage Railway Electric Transfer Cart

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPD
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 set/sets per year
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

    Scissor Lift Low Voltage Railway Electric Transfer Cart

    Scissor Lift Low Voltage Railway Electric Transfer Cart

    1. Product Introduce



    Low-voltage rail electric transfer trolley is a kind of transportation equipment widely used in industrial production. It adopts low-voltage rail and cast steel wheels, can bear heavy load, and runs smoothly with low noise. In addition, low-voltage rail electric transfer trolley also has flexible rotation and flexible turning on the track, which can better play its role.


    The running distance of low-voltage rail electric transfer trolley is not limited, because it can be designed with different battery capacities as needed to meet different transportation needs. Compared with traditional push-type transfer trolleys, low-voltage rail electric transfer trolleys have higher efficiency and better safety performance. A variety of safety protection devices can not only reduce the physical labor of workers, but also ensure the stability and safety of goods, and reduce the incidence of accidents. In modern industrial production, low-voltage rail electric transfer trolleys have become an indispensable transportation equipment.


    In short, low-voltage rail electric transfer trolley is an advanced, efficient and safe transportation equipment. It will greatly improve the production efficiency of industrial manufacturing, reduce production costs, and create more value for enterprises. We should actively promote and apply this technology to continuously promote the development of industrial production.


    2. Application

    1. All kinds of rollers (V-Groove Deck)

    2. Tanks (Size/Stability For Uniformly Distributed Loads)

    3. Assemblies lines (Fixture Cradle) For A Complete Build Or To Send A Partially Completed Product To The Next Station (Tractors, Heavy Equipment Machinery)

    4. Sub-Assembly Shuttle From One Line To Another Line

    5. Maintenance Cart For Motors And Pumps

    6. Equipment Support (Stand-Off Deck) For Navigating Loads To Locations With A Plant Facility

    7. Material Shuttle For Steel Tubing (Flat Decking With Guard Rails)

    8. Elevating Platform For Assembly Process (Integrated Screw-Jack Table)

    9. Sand blasting (Flat Decking)

    10. Mold Transfer

    f

    Please contact us if you's like to learn more details and get offer to us.


    BEFANBY have over 20 years' experience in the material handling fields.


    Scissor Lift Low Voltage Railway Electric Transfer Cart


    Scissor Lift Low Voltage Railway Electric Transfer CartScissor Lift Low Voltage Railway Electric Transfer Cart

    Scissor Lift Low Voltage Railway Electric Transfer Cart

    Welcome to inquiry us if you'd like to learn more

    3. Technique Parameter
    KPD series rail power transfer cart can be used in warehouses; KPX series is a battery electric motorized rail platform transfer trolley; KPJ series is a cable reel powered motorized rail trolley; KPT series is a tow cable powered electric rail trolley; KPC series is a safe sliding line Powered electric rail transfer trolley.
    ModelKPD-2tKPD-5tKPD-10tKPD-16tKPD-20tKPD-25tKPD-30tKPD-40tKPD-50tKPD-63t
    Rated load251016202530405063
    Table sizeLength(L)2000350036004000400045004500500055005600
    Width(W)1500200020002000220022002200250025002500
    Height(H)450450500500550600600650650750
    Wheel Base1200250026002800280032003200380042004300
    Rail Inner Gauage1200143514351435143514351435143514351435
    Wheel Diameter270300300350350400400500500600
    Wheel Quantity4444444444
    Ground Clearance50505050505050505075
    Running Speed0-250-250-250-200-200-200-200-200-200-20
    Motor Power11.21.622.233.5456.3
    Transformer Power3556.86.86.810101020
    Transformer Quatity1111111111
    Running Distance80808080808080605050
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4
    Reference Weight2.83.64.25.55.96.56.87.6810.8
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50

    Our Company


    Scissor Lift Low Voltage Railway Electric Transfer CartScissor Lift Low Voltage Railway Electric Transfer CartScissor Lift Low Voltage Railway Electric Transfer Cart

    Exported Company
    Scissor Lift Low Voltage Railway Electric Transfer Cart
    FAQ

    1) Q: How can I operate the transfer cart ?
    A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
    2) Q: How to ensure your product quality ?
    A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
    3)Q: Whether you can offer customized transfer car?
    A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
    4)Q: Whether there is professional technician assist our installation?
    A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
