    Customized Safety Rack Low Voltage Rail Transfer Trolley

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPD
    Certification : CE,SGS,ISO9001
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 set/sets per year
    Delivery Time : 20-30 days as usual delivery
    • Product Details
    • Company Profile

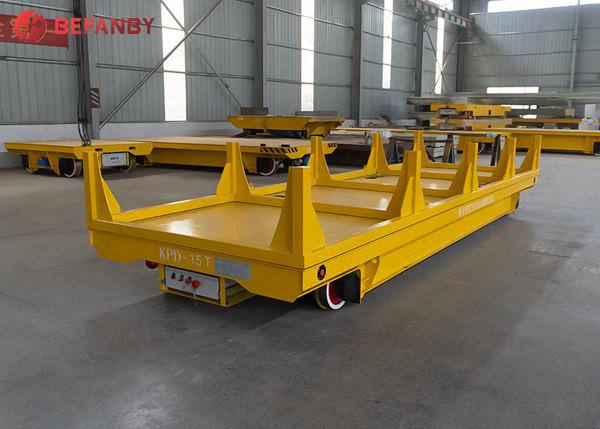

    Customized Safety Rack Low Voltage Rail Transfer Trolley

    Customized Safety Rack Low Voltage Rail Transfer Trolley

    1. Product Introduce


    Low-voltage rail electric transfer cart is an electric transfer cart commonly used for factory handling and has been widely used in various handling occasions. It has the advantages of small size, large load capacity, and flexible mobility, and can provide convenient services for industrial production and logistics operations.

    In its use, special attention should be paid to safety issues. The wheels and tracks of low-voltage rail electric transfer carts are insulated and can be used in turning situations.

    The emergence of low-voltage rail electric transfer carts not only improves work efficiency, but also saves manpower and material costs for enterprises. Its use not only improves work efficiency, but also brings more profits and returns to enterprises. And green environmental protection is a major feature, which will not pollute the environment and is in line with green and sustainable development.

    In short, the advantage of low-voltage rail electric transfer carts is that they are flexible and safe. As long as we pay attention to safety issues, strictly follow operating specifications, and actively explore technological upgrades and innovations, we can make better use of this tool to bring greater benefits to industrial production and logistics operations.


    Please contact us if you's like to learn more details and get the quotation.


    BEFANBY have over 20 years' experience in the material handling fields.

    Customized Safety Rack Low Voltage Rail Transfer Trolley


    Customized Safety Rack Low Voltage Rail Transfer Trolley


    2. Advantage

    The advantage of rail transport car is that it is not only safe, but also not afraid of hot, does not hinder cross-transportation, not afraid of smashing, easy to realize remote control and automation, can drive on curved roads and circular roads, and increase the number of step-down transformers properly. The limitation of the running distance of the rail ladle transport car is very convenient for the transportation plane layout of the plant.
    Sale Service Provided Cement Plant Cable Reel Transfer Trolleys

    Sale Service Provided Cement Plant Electric Rail Transfer Trolley


    3. Technique Parameter
    KPD series is a low-voltage power supply without towing cable electric transport car; KPX series is a battery electric motorized rail transport car; KPJ series is a cable reel powered transport car; KPT series is a tow cable powered electric transport car; KPC series is a safe sliding line Powered electric transport car.
    ModelKPD-2tKPD-5tKPD-10tKPD-16tKPD-20tKPD-25tKPD-30tKPD-40tKPD-50tKPD-63t
    Rated load251016202530405063
    Table sizeLength(L)2000350036004000400045004500500055005600
    Width(W)1500200020002000220022002200250025002500
    Height(H)450450500500550600600650650750
    Wheel Base1200250026002800280032003200380042004300
    Rail Inner Gauage1200143514351435143514351435143514351435
    Wheel Diameter270300300350350400400500500600
    Wheel Quantity4444444444
    Ground Clearance50505050505050505075
    Running Speed0-250-250-250-200-200-200-200-200-200-20
    Motor Power11.21.622.233.5456.3
    Transformer Power3556.86.86.810101020
    Transformer Quatity1111111111
    Running Distance80808080808080605050
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4
    Reference Weight2.83.64.25.55.96.56.87.6810.8
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50

    Applications

    Sale Service Provided Cement Plant Cable Reel Transfer Trolley
    BEFANBY Client
    Flaxible Operated Cement Plant Cable Reel Transfer Trolley
    Our Company
    Customized Safety Rack Low Voltage Rail Transfer TrolleyCustomized Safety Rack Low Voltage Rail Transfer TrolleyCustomized Safety Rack Low Voltage Rail Transfer Trolley

    FAQ
    1) Q: How can I operate the transfer cart ?
    A: Please don't worry, dear friend. The English user manual, parts manual will be delivered with your items together.
    2) Q: How to ensure your product quality ?
    A : We will free provide rail installation drawing, rail foundation construction drawing, free technical guide. And if necessary,our installation engineer will go to your factory to guide the installation.
    3)Q: Whether you can offer customized transfer car?
    A: Yep, of course, we are manufacturer, and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you tell us what you need.
    4)Q: Whether there is professional technician assist our installation?
    A :Yep. We have professional installation team, who have gone to many countries to assist the installation. If you need we send technician to your factory, please let us know in advance. So that we can arrange technicians.
