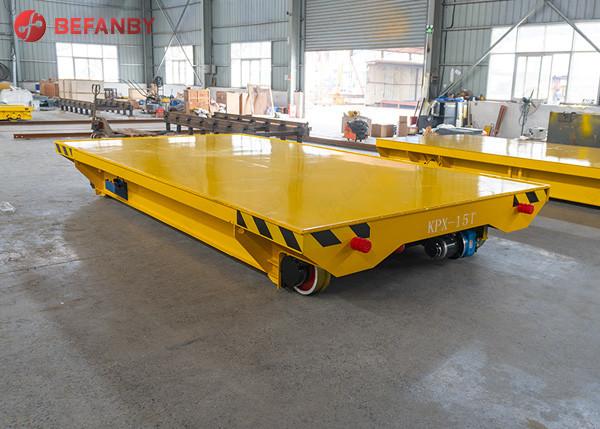

    Environmental Limit Switch Battery Rail Transfer Cart

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 600 set/sets, per year
    Delivery Time : 20-30 days as usual delivery
    • Product Details
    • Company Profile

    Environmental Limit Switch Battery Rail Transfer Cart

    Environmental Limit Switch Battery Rail Transfer Cart

    Railway electric transfer cart‌, also known as electric flat cart, rail flat cart, electric flatbed cart, etc., is a kind of rail-mounted electric transport cart in the factory. First of all, it is an electric cart that is driven by a motor and runs automatically; secondly, it is a cart that runs on rails and requires laying tracks on the ground‌.


    There are many types of rail electric flatbed carts, each with its own unique characteristics: Battery rail electric flatbed cart‌: high flexibility, not limited by power supply lines, suitable for large working areas and places where power supply lines are difficult to lay, but the endurance is limited and needs to be charged regularly‌.


    Often used in production lines, factory handling, construction sites and other places. We also provide after-sales installation services, and professional technicians provide door-to-door installation. Free replacement of parts and repairs during the warranty period.


    Environmental Limit Switch Battery Rail Transfer Cart


    2. Attentions of Environmental Limit Switch Battery Rail Transfer Cart


    1) The main source powered of the electric motorized trolley is battery, so it has the limitation of time.

    2) The maintenance-free battery is optional as your required;

    3) If you want extend working hours, you can keep a stand-by battery;


    Environmental Limit Switch Battery Rail Transfer CartEnvironmental Limit Switch Battery Rail Transfer CartEnvironmental Limit Switch Battery Rail Transfer Cart
    3 Technical Parameter of Environmental Limit Switch Battery Rail Transfer Cart

    ModelKPX-2tKPX-20tKPX-50tKPX-100tKPX-150t
    Rated Load(t)22050100150
    Table Size(mm)Length(L)200040005500650010000
    Width(W)15002200250028003000
    Heigth(H)4505506509001200
    Wheel Base(mm)12002800420049007000
    Rail Inner Gauge(mm)12001435143520002000
    Wheel Diameter(mm)270350500600600
    Wheel Quantity44448
    Ground Clearance(mm)5050507575
    Running Speed(min)0-250-200-200-200-18
    Motor Power(kw)12.251015
    Battery Capacity180180330440600
    Battery Voltage2448487272
    Running time When Full Load4.3243.33.22.9
    Running Distance for Once Charge(KM)6.54.843.83.2
    Reference Weight(t)2.85.9814.626.8
    Recommended Rail ModelP15P24P43QU100QU100

    NOTES:

    • Flat deck or fixtures for transporting special payload;
    • Custom deck configurations may include lift, tilt, or rotate function;
    • Payload from 1 ton to 300 tons;
    • Fixed speed or variable speed capabilities;
    • On board charging is available if battery drives;
    • With forward or backing driving;
    • Options for automatic control;
    • Available safety equipment includes horn, lights, emergency stop, bumpers and detector.


    Environmental Limit Switch Battery Rail Transfer Cart


    5. BEFANBY Company

    Environmental Limit Switch Battery Rail Transfer Cart

    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
