Brand Name : | BEFANBY |
Model Number : | KPD |
Certification : | CE,SGS,ISO9001 |
Price : | Negotiation |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 1000 set/sets per year |
Delivery Time : | 40-50 days as usual delivery,30-40days for urgent delivery |
1. Product Introduce

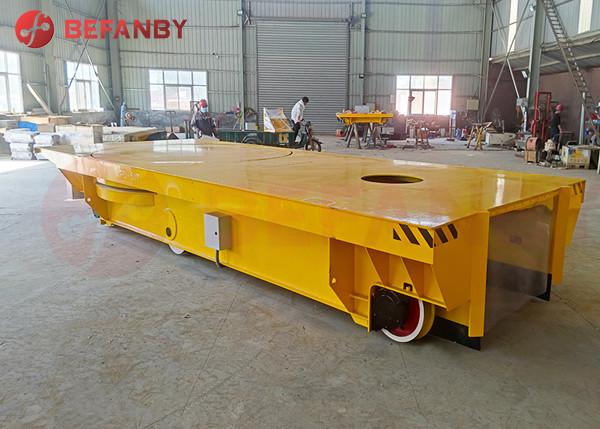

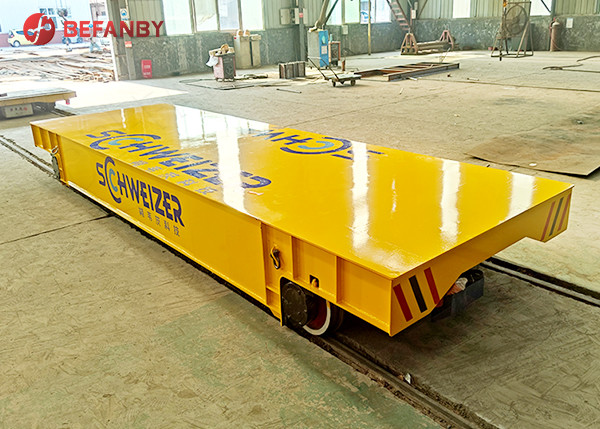

This electric transfer cart uses cast steel wheels with high strength and pressure resistance. It can carry a large amount of items and maintain a stable and stable performance during transportation. In addition, the car can also be operated by remote control, which is very convenient and easy to operate. Both the table size and basic components can be customized according to customer requirements, and professional after-sales service is provided. |
1. All kinds of rollers (V-Groove Deck) 2. Tanks (Size/Stability For Uniformly Distributed Loads) 3. Assemblies lines (Fixture Cradle) For A Complete Build Or To Send A Partially Completed Product To The Next Station (Tractors, Heavy Equipment Machinery) 4. Sub-Assembly Shuttle From One Line To Another Line 5. Maintenance Cart For Motors And Pumps 6. Equipment Support (Stand-Off Deck) For Navigating Loads To Locations With A Plant Facility 7. Material Shuttle For Steel Tubing (Flat Decking With Guard Rails) 8. Elevating Platform For Assembly Process (Integrated Screw-Jack Table) 9. Sand blasting (Flat Decking) 10. Mold Transfer |
f
Please contact us if you's like to learn more details and get offer to us. BEFANBY have over 20 years' experience in the material handling fields. |
Welcome to inquiry us if you'd like to learn more
Model | KPD-2t | KPD-5t | KPD-10t | KPD-16t | KPD-20t | KPD-25t | KPD-30t | KPD-40t | KPD-50t | KPD-63t | |
Rated load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | |
Running Speed | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
Motor Power | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
Transformer Power | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
Transformer Quatity | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Running Distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
Reference Weight | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 |
