    Large Duty Electrical Pipe Factory Railway Transfer Carts

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX
    Certification : CE, SGS, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500 set/sets per year
    Delivery Time : 20-30 days as usual delivery
    • Product Details
    • Company Profile

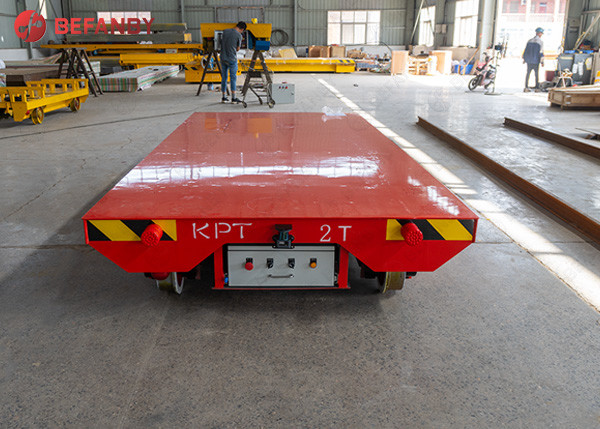

    Large Duty Electrical Pipe Factory Railway Transfer Carts

    Large Duty Electrical Pipe Factory Railway Transfer Carts

    Brief Introduction Of Rail Railway Transfer Cart

    The drag chain rail electric transfer cart is an efficient, safe and convenient logistics handling equipment. The equipment is mainly composed of a car body, a drag chain, a power system and a control system. It has a simple structure and is easy to operate. The drag chain rail electric transfer cart can be customized according to demand and can meet the logistics needs of different occasions.

    The drag chain rail electric transfer cart is widely used in industrial production, mechanical processing, logistics distribution and other fields, especially in heavy-load transportation, which is more labor-saving and more efficient than traditional hand-pushed transfer carts.

    The equipment also has the advantages of high safety and strong stability. The use of safety measures such as overload automatic parking and emergency stop protection effectively avoids the risk of accidents during the handling process.

    In general, the drag chain rail electric transfer cart is a high-performance handling equipment that can help enterprises improve handling efficiency and reduce labor costs. In the future development, it will be used in more and more fields and make important contributions to the production efficiency and competitiveness of enterprises.


    Large Duty Electrical Pipe Factory Railway Transfer CartsLarge Capacity Electrical Pipe Factory Railway Transfer Carts

    Parts Of Railway Transfer Cart

    Large Duty Electrical Pipe Factory Railway Transfer Carts

    Advantage

    Large Duty Electrical Pipe Factory Railway Transfer Carts
    Large Duty Electrical Pipe Factory Railway Transfer Carts

    Technique Parameter Of Manufacture Customized Transfer Cart

    ModelKPT-2tKPT-5tKPT-10tKPT-16tKPT-20tKPT-25tKPT-30tKPT-40tKPT-50tKPT-63tKPT-80tKPT-100tKPT-150t
    Rated Load25101620253040506380100150
    Table sizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Height(H)4504505005005506006006506507508008501200
    Wheel Base1200250026002800280032003200380042004300470049007000
    Rail Inner Gauage1200143514351435143514351435143514351435180020002000
    Wheel Diameter270300300350350400400500500600600600600
    Wheel Quantity4444444444448
    Ground Clearance50505050505050505075757575
    Running Speed25252520202020202020202018
    Motor Power0.81.51.52.22.5345.55.57.57.51115
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Weight2.33.33.855.566.37.27.610.312.113.926
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100

    Application

    Large Duty Electrical Pipe Factory Railway Transfer Carts

    Shipping

    Large Duty Electrical Pipe Factory Railway Transfer Carts

    Brief Introduction

    Large Duty Electrical Pipe Factory Railway Transfer Carts

    Large Duty Electrical Pipe Factory Railway Transfer Carts
    Large Duty Electrical Pipe Factory Railway Transfer Carts
