Brand Name : | BEFANBY |
Model Number : | KPT |
Certification : | CE,SGS,ISO9001 |
Price : | Negotiation |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 1000 set/sets per year |
Delivery Time : | 20-30 days as usual delivery |

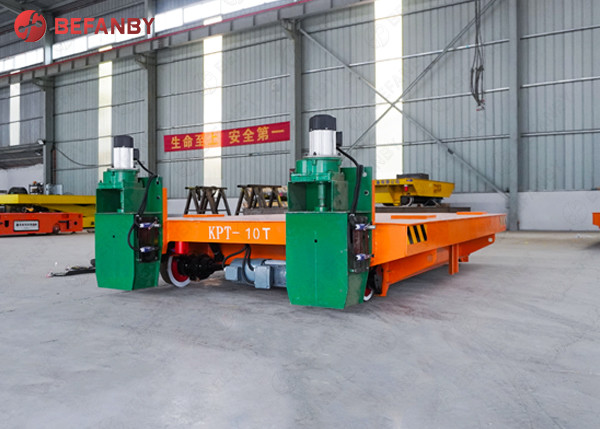

A rail electric transfer cart refers to an electrically driven transport vehicle running on a special track. Its main function is to carry heavy objects, and it is suitable for transferring materials in factories, warehouses, workshops and other places. Compared with the traditional manual handling method, the rail electric transfer cart not only improves the handling efficiency, but also greatly reduces the labor cost and ensures the safety of the handling process.
Advantages of AC motor drive
Rail electric transfer carts usually use AC motors as the main
driving power, which has several obvious advantages:
1. High efficiency: The energy conversion efficiency of AC motors
is higher than that of DC motors. Under heavy load operation, AC
motors can effectively reduce energy loss and extend the service
life of equipment.
2. Simple maintenance: The structure of AC motors is relatively
simple, without brushes and commutators, which can avoid
maintenance problems caused by wear and tear, thereby reducing
maintenance costs.
3. Operation stability: AC motors perform more smoothly during
startup and operation, can effectively suppress vibration and
reduce operating risks.
Construction of intelligent control system
The core of modern rail electric transfer carts lies in their
intelligent control systems. By equipping with advanced sensors and
controllers, rail electric transfer carts can achieve the following
functions:
1. Remote control operation: Users can remotely control the
electric transfer cart through the remote control, set the driving
route, handling tasks, etc., which improves the operator's working
environment and reduces fatigue caused by standing for a long time.
2. Real-time monitoring and feedback: The intelligent control
system can monitor the operating status of the electric transfer
cart in real time, collect and analyze data such as speed, load,
usage time, etc., to help enterprises maintain and optimize.
3. Fault warning and self-diagnosis: When the system detects a
fault, it can issue an alarm in time.
Rail electric transfer carts have become indispensable handling equipment in modern industry due to their high efficiency, intelligence and safety performance. Through AC motor drive and drag chain power supply design, combined with advanced intelligent control systems, rail electric transfer carts provide great convenience for enterprises in various working environments.
Model | KPD-2T | KPD-5T | KPD-10T | KPD-16T | KPD-20T | KPD-25T | KPD-30T | KPD-40T | KPD-50T | KPD-63T | |
Rated load(t) | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | |
Table Size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 |
Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | |
Heigth(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | |
Wheel Base(mm) | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | |
Rai lnner Gauge(mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | |
Wheel Dia.(mm) | Φ270 | Φ300 | Φ300 | Φ350 | Φ350 | Φ400 | Φ400 | Φ500 | Φ500 | Φ600 | |
Wheel Quantity(pcs) | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
Ground Clearance(mm) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | |
Running Speed(mm) | 0-25 | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | 0-20 | |
Motor Power(kw) | 1 | 1.2 | 1.6 | 2 | 2.2 | 3 | 3.5 | 4 | 5 | 6.3 | |
Transformer | 3 | 5 | 5 | 6.8 | 6.8 | 6.8 | 10 | 10 | 10 | 20 | |
Transformer Quantity(个) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | |
Running distance | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 60 | 50 | 50 | |
Max Wheel load(KN) | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | |
Reference Wight(t) | 2.8 | 3.6 | 4.2 | 5.5 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | |
Recommend Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 |
![]() |
