    Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPT
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 set/sets per year
    Delivery Time : 20-30 days as usual delivery
    • Product Details
    • Company Profile

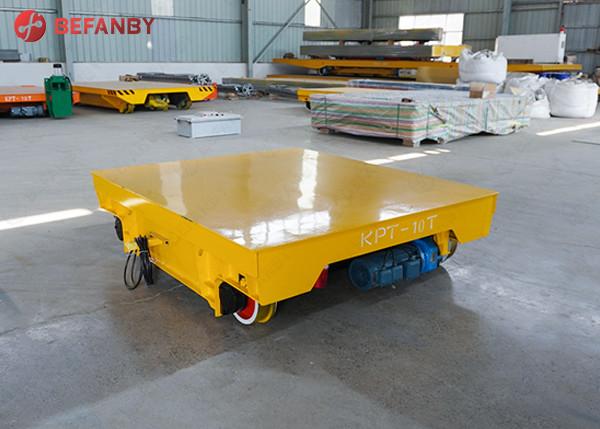

    Cast Steel Wheels Cable Reels Track Transfer Carts With 20 Tons Load Capacity

    Cast Steel Wheels Cable Reels Track Transfer Carts

    Product Description

    The material handling vehicle is a very practical handling equipment, which can easily move various materials from one place to another. Tracks need to be laid so that it can run flexibly along the set path. Its structure is very simple, which makes it very easy to maintain.

    The material handling vehicle also has an explosion-proof function, which makes it very suitable for those occasions where there is a risk of explosion. It can also be customized according to customer requirements, which makes it very suitable for a variety of different work occasions. During the customization process, there is a dedicated technical team to provide support to customers, which allows customers to use the material handling vehicle with confidence.

    In general, the material handling vehicle is a very practical equipment, which can greatly improve work efficiency. It has a simple structure, easy maintenance, powerful explosion-proof function, strong customization ability, and very good after-sales support. It can not only improve work efficiency but also reduce manpower.


    Cast Steel Wheels Cable Reels Track Transfer CartsCast Steel Wheels Cable Reels Track Transport Carts


    Product Details


    Cast Steel Wheels Cable Reels Railway Transfer Carts


    Product Parameter


    ModelKPD-2TKPD-5TKPD-10TKPD-16TKPD-20TKPD-25TKPD-30TKPD-40TKPD-50TKPD-63T
    Rated load(t)251016202530405063
    Table SizeLength(L)2000350036004000400045004500500055005600
    Width(W)1500200020002000220022002200250025002500
    Heigth(H)450450500500550600600650650750
    Wheel Base(mm)1200250026002800280032003200380042004300
    Rai lnner Gauge(mm)1200143514351435143514351435143514351435
    Wheel Dia.(mm)Φ270Φ300Φ300Φ350Φ350Φ400Φ400Φ500Φ500Φ600
    Wheel Quantity(pcs)4444444444
    Ground Clearance(mm)50505050505050505050
    Running Speed(mm)0-250-250-250-200-200-200-200-200-200-20
    Motor Power(kw)11.21.622.233.5456.3
    Transformer3556.86.86.810101020
    Transformer Quantity()1111111111
    Running distance80808080808080605050
    Max Wheel load(KN)14.425.842.664.577.794.5110.4142.8174221.4
    Reference Wight(t)2.83.64.25.55.96.56.87.6810.8
    Recommend Rail ModelP15P18P18P24P24P38P38P43P43P50

    Application


    Cast Steel Wheels Cable Reels Track Transfer Trolley


    Product Characteristics


    Cast Steel Wheels Electrical Track Transfer Carts

    Advantage


    Flexible Turning Wheels Cable Reels Track Transfer Carts


    Shipping


    Remoted Control Wheels Cable Reels Track Transfer Carts


    Our Company


    Cast Steel Wheels Cable Reels Rail Transfer Carts

    Cast Steel Wheels Cable Reels Track Transfer Trolleys

    Heavy Load Cable Reels Track Transfer Carts
