Heavy Capacity Hydralic Lift Rail Material Transfer Trolley

Ask Lasest Price
Brand Name :	BEFANBY
Model Number :	KPX-12t
Certification :	CE,SGS,ISO9001
Price :	Negotiation
Payment Terms :	L/C, T/T
Supply Ability :	60 sets per month
Delivery Time :	20-30 days as usual delivery

Add to Cart

Product Details
Company Profile

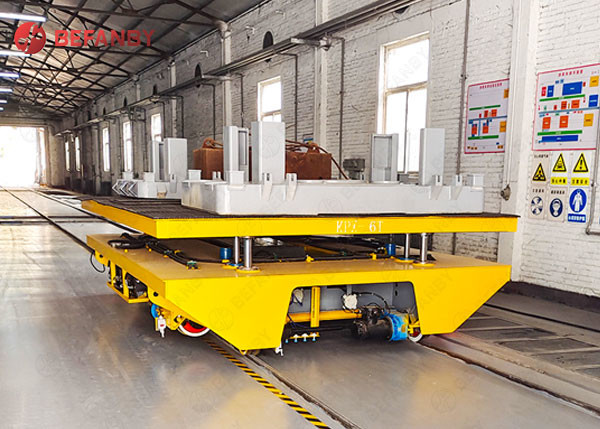

Heavy Capacity Hydralic Lift Rail Material Transfer Trolley

Heavy Capacity Hydraulic Lift Rail Material Transfer Trolley

As an indispensable equipment in modern logistics and transportation, rail electric transfer carts are highly favored for their carrying capacity and flexibility. Its car body is equipped with a hydraulic lifting device, which can freely adjust the lifting height within a range, and can easily meet the handling needs of various heights. In addition, it can also carry a large amount of heavy-loaded goods, and there is no limit on the running distance, which provides great convenience for the modern logistics industry.

Rail electric transfer carts can adopt different sizes and carrying capacities according to actual working conditions, and can meet the logistics needs of different occasions. Its hydraulic lifting device can easily adjust the lifting height, making loading and unloading more efficient and convenient. At the same time, its stability and safety are also fully guaranteed, and it can maintain stable operation even when the load weight is large.

In modern logistics and transportation, rail electric transfer carts are widely used. It is mainly used for cargo handling and transportation in factories, storage centers, docks and workshops. In the automobile manufacturing industry, due to the heavy weight of raw materials and semi-finished products, rail electric transfer carts have become indispensable auxiliary equipment. In cargo storage centers, it is often necessary to move cargo from one location to another, and the flexible handling capacity of rail electric transfer carts greatly improves work efficiency and cargo turnover speed.

In general, rail electric transfer carts have brought great convenience to the modern logistics industry with their flexible hydraulic lifting devices, reliable load-bearing capacity and wide range of applications.

Heavy Capacity Hydralic Lift Rail Material Transfer Trolley

The parameter

Model		KPX-2T	KPX-10T	KPX-20T	KPX-30T	KPX-50T	KPX-63T	KPX-150T
Rated load (T)		2	10	20	30	50	63	150
Table size	length(L)	2000	3600	4000	4500	5500	5600	10000
	Width(W)	1500	2000	2200	2200	2500	2500	3000
	Height(H)	450	500	550	600	650	700	1200
Wheel Base (mm)		1200	2600	2800	3200	4200	4300	7000
Rail Inner Gauge (mm)		1200	1435	1435	1435	1435	1435	2000
Wheel Diameter(mm)		Φ270	Φ300	Φ350	Φ400	Φ500	Φ600	Φ600
Wheel Quantity		4	4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	50	75	75
Running speed (min)		0-25	0-25	0-20	0-20	0-20	0-20	0-18
Motor Power (Kw)		1	1.6	2.2	3.5	5	6.3	15
Battery Capacity(Ah)		180	160	180	250	330	400	600
Battery Voltage(V)		24	48	48	48	48	48	72
Running Time When Full Load		4.32	4.8	4	3.5	3.3	3	2.9
Running Distance for one Charge(Km)		6.5	7.2	4.8	4.2	4	3.6	3.2
Max Wheel Load (KN)		14.4	42.6	77.7	110.4	174	221.4	265.2
Reference Weight (t)		2.8	4.2	5.9	6.8	8	10.8	26.8
Recommended Rail Model		P15	P18	P24	P38	P43	P50	QU100
