Brand Name : | BEFANBY |
Model Number : | KPX |
Certification : | CE, SGS, ISO9001 |
Price : | Negotiation |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 1500 set/sets per year |
Delivery Time : | 20-30 days as usual delivery |

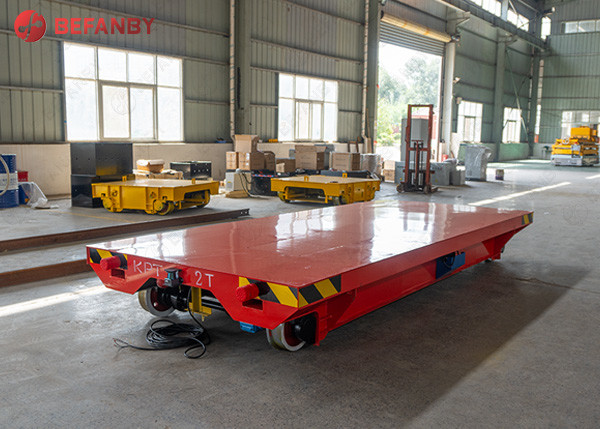

The rail transport cart is an electric transport equipment running along preset fixed rails, which is used in industrial production, heavy equipment handling, automated production docking and other scenarios. It has the advantages of large load, high stability, intelligent control, etc., and can be widely used in steel, mechanical manufacturing, automobile and other industries.
Customizable design: the load, power supply method, control system,
countertop structure, etc. can be adjusted according to user needs.
Automation compatibility: supports the use of display screens,
AGVs, and conveyor lines to realize intelligent handling.
Various power supply methods: battery, low-voltage rail, cable drum, sliding contact wire power supply can be selected to meet different working conditions.
Multifunctional features:
Tabletop structure: can be equipped with rollers, chain conveying,
rotary tabletops, lifting mechanisms, roll racks, etc., to meet
different material handling needs.
Load capacity: from 5T-100T or above to meet the handling needs of
heavy equipment.
rail type: Supports rail layouts such as straight rail, cross rail,
S-type rail, etc.
Safety protection: Infrared sensing obstacle avoidance, emergency
stop button, sound and light alarm, and limit devices can be
installed to ensure safe operation.
Model | KPT-2t | KPT-5t | KPT-10t | KPT-16t | KPT-20t | KPT-25t | KPT-30t | KPT-40t | KPT-50t | KPT-63t | KPT-80t | KPT-100t | KPT-150t | |
Rated Load | 2 | 5 | 10 | 16 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
Table size | Length(L) | 2000 | 3500 | 3600 | 4000 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
Width(W) | 1500 | 2000 | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
Height(H) | 450 | 450 | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 750 | 800 | 850 | 1200 | |
Wheel Base | 1200 | 2500 | 2600 | 2800 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
Rail Inner Gauage | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
Wheel Diameter | 270 | 300 | 300 | 350 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
Running Speed | 25 | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
Motor Power | 0.8 | 1.5 | 1.5 | 2.2 | 2.5 | 3 | 4 | 5.5 | 5.5 | 7.5 | 7.5 | 11 | 15 | |
Max Wheel Load | 14.4 | 25.8 | 42.6 | 64.5 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
Reference Weight | 2.3 | 3.3 | 3.8 | 5 | 5.5 | 6 | 6.3 | 7.2 | 7.6 | 10.3 | 12.1 | 13.9 | 26 | |
Recommended Rail Model | P15 | P18 | P18 | P24 | P24 | P38 | P38 | P43 | P43 | P50 | P50 | QU100 | QU100 |
![]() |
