    Stable Sliding Line Rail Transfer Trolley

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPC
    Certification : CE,SGS,ISO9001
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 set/sets per year
    Delivery Time : 20-30 days as usual delivery
    • Product Details
    • Company Profile

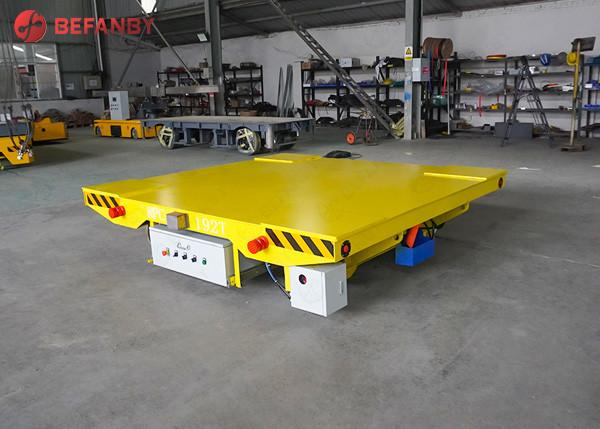

    Stable Sliding Line Rail Transfer Trolley

    Stable Sliding Line Rail Transfer Trolley

    1. Product Introduce

    This transfer cart is a transport equipment that runs on the rail through the busbar power supply. It is widely used in machinery manufacturing, steel metallurgy, warehousing and logistics, automobile manufacturing and other industries. The equipment is suitable for long-distance and heavy-load transportation, and has the characteristics of stable power supply and smooth operation.

    • The power supply process is as follows:
    1. The busbar is fixed on one side of the rail and connected to the transformer.
    2. The collector is installed on the electric flat car, contacts the busbar and obtains electricity.
    3. The electric energy drives the motor and drives the wheels to run along the rail.
    4. Use the remote control or handle for speed adjustment, direction control, start and stop management and other operations.
    • Main features:

    Continuous power supply: no need to charge, suitable for long-term and high-frequency operation.
    Suitable for long-distance transportation: Compared with the battery power supply method, the busbar can support long-distance transportation
    Stable, safe and reliable operation: running on a fixed rail ensures that the driving route is fixed and reduces manual intervention.
    Large load capacity: can carry 10T~100T, suitable for heavy workpiece handling.
    Customizable automation control: can be equipped with PLC intelligent control system to achieve automated transportation. It can also be used in conjunction with many other types of transport carts.


    Please contact us if you's like to learn more details and get the quotation.


    BEFANBY have over 20 years' experience in the material handling fields.

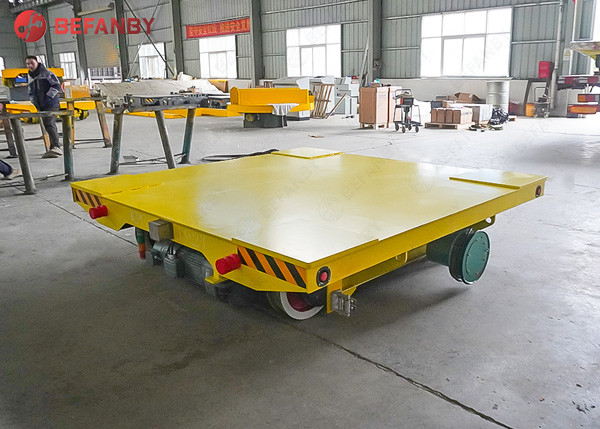

    Stable Sliding Line Rail Transfer Trolley

    Stable Sliding Line Rail Transfer Trolleys


    2. Advantage

    The advantage of rail transport car is that it is not only safe, but also not afraid of hot, does not hinder cross-transportation, not afraid of smashing, easy to realize remote control and automation, can drive on curved roads and circular roads, and increase the number of step-down transformers properly. The limitation of the running distance of the rail ladle transport car is very convenient for the transportation plane layout of the plant.
    20 Ton Stable Sliding Line Rail Transfer Trolley

    Stable Sliding Line Rail Transfer Trolley


    3. Technique Parameter
    KPD series is a low-voltage power supply without towing cable electric transport car; KPX series is a battery electric motorized rail transport car; KPJ series is a cable reel powered transport car; KPT series is a tow cable powered electric transport car; KPC series is a safe sliding line Powered electric transport car.
    ModelKPD-2tKPD-5tKPD-10tKPD-16tKPD-20tKPD-25tKPD-30tKPD-40tKPD-50tKPD-63t
    Rated load251016202530405063
    Table sizeLength(L)2000350036004000400045004500500055005600
    Width(W)1500200020002000220022002200250025002500
    Height(H)450450500500550600600650650750
    Wheel Base1200250026002800280032003200380042004300
    Rail Inner Gauage1200143514351435143514351435143514351435
    Wheel Diameter270300300350350400400500500600
    Wheel Quantity4444444444
    Ground Clearance50505050505050505075
    Running Speed0-250-250-250-200-200-200-200-200-200-20
    Motor Power11.21.622.233.5456.3
    Transformer Power3556.86.86.810101020
    Transformer Quatity1111111111
    Running Distance80808080808080605050
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4
    Reference Weight2.83.64.25.55.96.56.87.6810.8
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50

    Applications

    Stable Sliding Line Rail Handling Vehicel
    BEFANBY Client
    10T Stable Sliding Line Rail Transfer Trolley
    Our Company
    Stable Sliding Line Rail Transport TrolleyStable Sliding Line Railway Transfer TrolleyStable Sliding Line Rail Transfer Cart
