Heavy Load Reel Power Railway Move Electric Rail Flat Cart For Machinery Plant

1. About BEFANBY Product

In recent years, with the continuous progress of society, various industries are also booming. Electric transfer carts are industries drived from the healthy development of industries. The emergence of electric rail flat carts has provided great convenience to industrial production, improved production efficiency and corporate benefits, and helped enterprises develop smoothly.

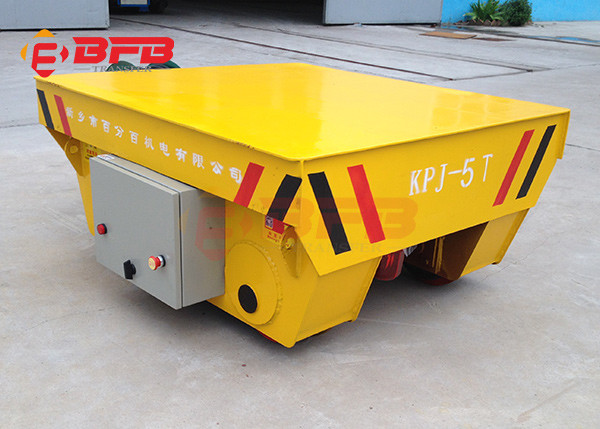

The KPJ Series of Heavy Load Reel Power Railway Move Electric Rail Flat Cart For Machinery Plant, The power source 380V alternating-current is supplied to the traction motor by cable. It is specially designed and manufactured for different type steel plants, copper plants, smelters and foundries. According to the different requirements of clients, the electric rail flat cart can be customized according to the included size, weight, ambient temperature, external temperature and other conditions.

2. Manufacturing process of Heavy Load Reel Power Railway Move Electric Rail Flat Cart For Machinery Plant:

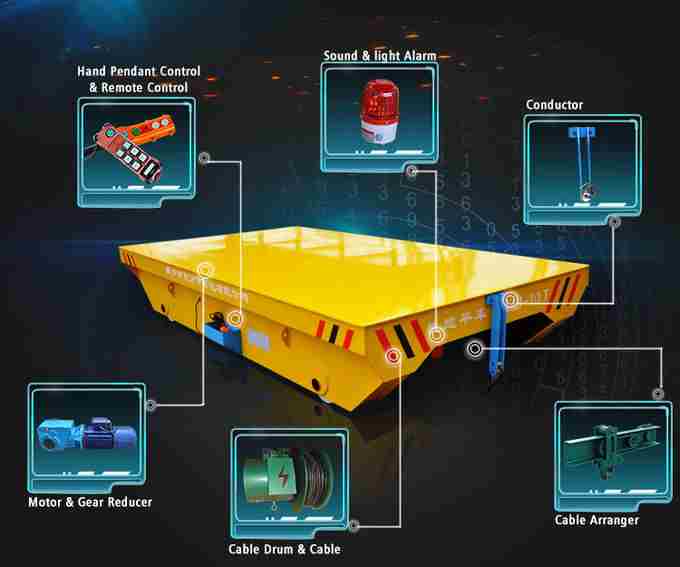

The overall layout of the KPJ electric rail flat carts is composed of a frame, a transmission, a driven wheel pair, a cable reel, and an electric control device.

A. Frame of operated rail transporter:
(1) The frame adopts a plate frame structure. It is made of I-beam welded into a frame, in which the longitudinal beam, the beam and the table top are laid with steel plates.
(2) The mechanical properties of the frame material are not lower than the performance of Q236-A or Q235-A.F in GB700.
(3) The welding rod, welding wire and flux are compatible with the material to be welded, and the welding rod complies with the provisions of GB5117.
(4) The weld groove shape of the frame welding conforms to the provisions of GB985 and GB986. The weld has no defects such as cracks, pores, craters and slag inclusions.
(5) The undercut depth of the weld is not more than 0.5mm, the continuous length of the undercut is not more than 100mm, and the total length of the single side of the weld is not more than 10% of the length of the weld.
(6) There is no slag and spatter on the weld. Taking the eight-point load on the beam, the flat car is more stable, safe and easy to ship.

B. Cable Drum

The cable drum powered rail flat cart is an electric material handling vehicle. The design of the cable drums transfer flat cart is mainly used for handling large cables. The transfer cart can be designed according to the size of the large cable to facilitate customers to transport the cable. The vehicle's power supply method is cable power supply. This power supply method is more environmentally friendly and can save usage costs.

3 Technical parameter

If you are interrested in our product, pls contact us.

Thank you very much, and have a good time!
