Brand Name : | BEFANBY |
Model Number : | KPC-50T |
Certification : | CE,SGS,ISO9001 |
Price : | Negotiation |
Payment Terms : | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
Supply Ability : | 1000 sets one year |
Delivery Time : | 40-50 days as usual delivery,30-40days for urgent delivery |

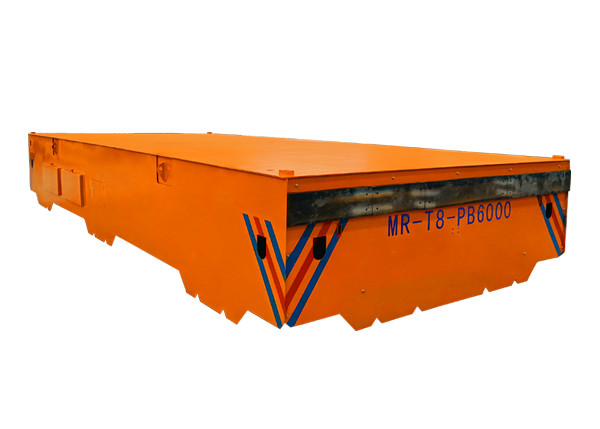

The unique product steering mechanism flatbed 50ton and 100t transfer carts is power by busbar(electric sliding line). It gets power from sliding during the cart running. The electric control system of the cart make it start, stop, go forward and backward.
power distribution transformer three phase power transformer electrical power transformer 10 mva power transformer electric control system
stem
The Position Of Sliding Wire
The position of the transfer cart sliding line is adapted to local conditions and determined according to the specific conditions of each user. It can be installed in the middle of the track, on one side of the track, in a trench, or on a wall, or under the flatbed, or above the flatbed, or it can be flush with the flatbed. Based on the principle of convenient, safe and reliable electricity, for example, install the sliding contact line in the trench, install the cover plate on the trench (the cover plate is not a through plate, but one by one), and install a cover plate on the flatbed truck. The board mechanism, when the car is walking, the board is opened and automatically closed, which is safe and beautiful. |
Technical parameters of steering mechanism
Model | KPC-2T | KPC-10T | KPC-20T | KPC-30T | KPC-50T | KPC-63T | KPC-150T | |
Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
This kind of large gauge rail traverser is running on steel tracks
or steel squre bars.It is commonly applied in steel plant, aluminum
factory, plastic pipes factory, etc to transfer rounded material,
from producing line to store.
It is the best choice for production line with large rail gauge.
This kinf of rail traverser has wide rail gauge.When the traverser is applied to transfer coils, a V-frame is added.
The rail traverser is applying in customer's workshop to transfer
steel coils on crossing rails. The large platform can handling the
rail cart to the crossing rails freely.
power distribution transformer three phase power transformer
electrical power transformer 10 mva power transformer electric
control system
Our company
FAQ
2. Q: What is the using candition?
A: The environment temperature should be in level. such as production
line
3. Q: What is the working speed of the rail transfer cart?
A: The standard running speed is 0-20m/min.
![]() |
