    Flat Q235 Battery Powered 15 Ton Coil Transfer Cart

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : coil
    Certification : CE, SGS, ISO9001
    Price :
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 800 sets per year
    Delivery Time : 40-50 days as usual delivery,30-40 days for urgent delivery
    • Product Details
    • Company Profile

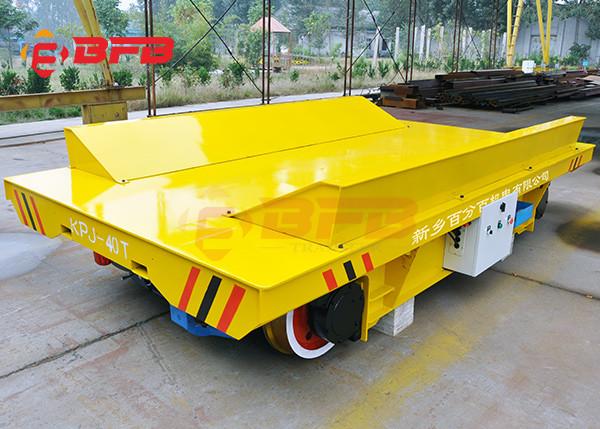

    Flat Q235 Battery Powered 15 Ton Coil Transfer Cart

    Heavy Duty Flat Aluminum Steel Coil Railway Trolley 15 Ton Battery Powered

    1. Product Profile


    Custom 25 ton rail coil transfer trolley with sound and light alarm can be applied in transporting steel coils, aluminum coil, paper coil, roller, oil tank and pipes for plant. This battery operated coil transfer trolley can be designed to be an extremely cost effective, safe and flexible load moving alternative. The V shape/ U shaped supporting and roller can be mounted to avoiding the coil fall from the trolley.


    The heavy duty flat aluminum steel coil railway trolley 15 ton is battery powered,so it can be easy operation.You can also choose the supply power ways according to your requirements.Such as:battery powered,rail motorized,cable reel powered,etc.The heavy duty flat aluminum steel coil railway trolley 15 ton is widely used combined with the crane.



    Advantage



    1.The mounted remote controller controls the whole vehicle , the remote controller has horn , forward , backward , fast forward , rewind , braking , etc . heavy duty material handling equipment.

    2.Battery powered and equipped the alarm light.

    3.Micro-moving traction. Heavy duty material handling equipment-rail truck trailer has parking braking function to ensure that the ramp does not slip, and has manual parking brake clutch function.

    4.Angle box is a maskant for the coil transfer wheels.

    5.The charging wire not less than 15m, with automatic wiring arrangement, retracts.
    6.The V/U shape can be added if need.

    7.The capacity and table size can be customized.

    8.Special countertop waterproof material design for the platform.



    Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm

    Technique Parameter
    ModelKPX-5tKPX-20tKPX-25tKPX-40tKPX-80tKPX-150t
    Rated Load520254080150
    Table sizeLength(L)3500400045005000600010000
    Width(W)200022002200250026003000
    Height(H)5005506006508001200
    Wheel Base250028003200380047007000
    Rail Inner Gauage143514351435143518002000
    Wheel Diameter300350400500600600
    Wheel Quantity444448
    Ground Clearance505050507575
    Running Speed252020202018
    Motor Power1.233.551015
    Battery Capacity180180250300400600
    Battery Voltage364848487272
    Running Time When Full Load5.4443.63.62.9
    Max Wheel Load25.877.794.5142.8278.4265.2
    Reference Weight3.65.96.57.612.826.8
    Recommended Rail ModelP18P24P38P43P50QU100

    Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm


    Heavy Duty Flat Aluminum Steel Coil Railway Trolley 15 Ton Battery Powered

    2. Our Company
    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

    Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm


    Our team


    Custom 25 Ton Rail Coil Transfer Trolley With Sound And Light Alarm


    Heavy Duty Flat Aluminum Steel Coil Railway Trolley 15 Ton Battery Powered

    You can copy the following options to select your specific requirement for the transfer car to send us. And then the proper solution and price will be sent to you.


    1. The load capacity of the transfer car is ( ) ton.


    2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).


    3. The voltage is ( ) V, ( ) HZ, 3 phase.


    4. The running time is ( ) hours per day.


    5. The running distance is ( ) m per time.


    6. The transfer cart runs on the rails or common floor?


    7. Whether exist turning?


    8. Whether has other special requirement?


    What's more if you'd like to learn more avbout BEFANBTY Company, also can click here to learn more.
