    Ferry Battery Transfer Cart

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-10 ton
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 60 sets per month
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

    Ferry Battery Transfer Cart


    10 ton rail traverser battery operated coil cart for steel industry ferry


    Coil transfer cart is a special mechanical coil conveyor car by BEFANBY.Used for transportation of steel coil, aluminum coil and paper coil.The standard design of flat surface of coil transporter is a flat surface, but to prevent rolling of workpiece, we add v-bracket, u-bracket, etc.


    Advantages of Custmized automatic handling transfer cart


    • Flexible and environmental;
    • Low Noise
    • It can run on S shape rail, arc-shape rail and stright rails.
    • Has no limit on running distance;
    • Has no strict requirement on rail construction;
    • The hydraulic lifting device, V-frame, power roller can be installed on the platform;

    10 ton rail traverser battery operated coil cart for steel industry ferry

    10 ton rail traverser battery operated coil cart for steel industry ferry

    10 ton rail traverser battery operated coil cart for steel industry ferry

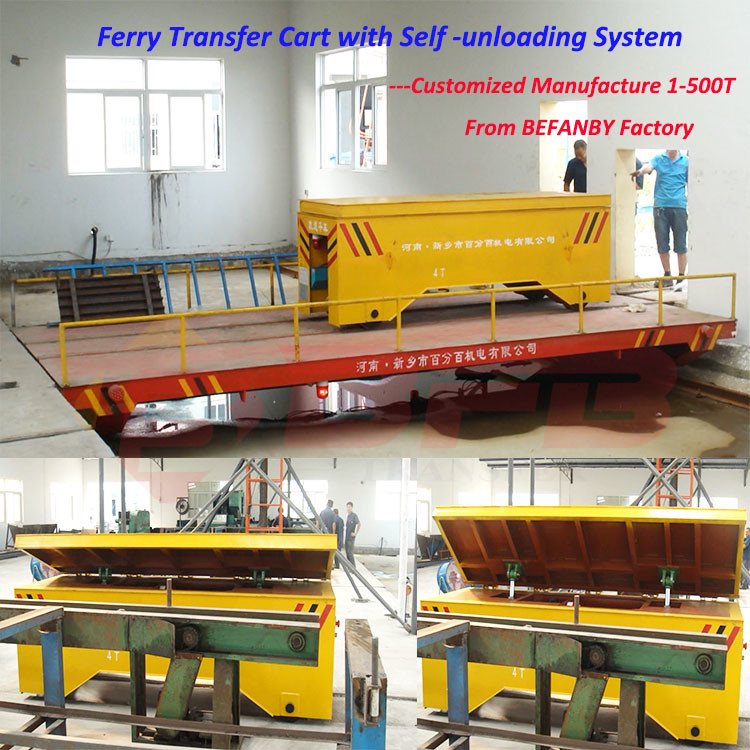

    Photo show of steel coil handling transfer cart we have manufactured


    10 ton rail traverser battery operated coil cart for steel industry ferry

    The parameter of Customized 10 ton rail traverser battery operated coil cart for steel industry ferry
    Model
    KPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100

    10 ton rail traverser battery operated coil cart for steel industry ferry

    BEFANBY Company
    10 ton rail traverser battery operated coil cart for steel industry ferry


    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand

    Cutomer from worldwide


    10 ton rail traverser battery operated coil cart for steel industry ferry


    BEFANBY advantages
    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
