    Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-10T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

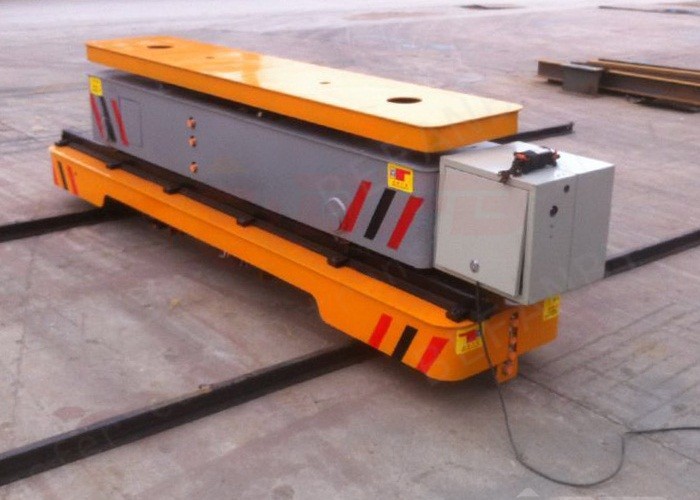

    Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform

    gearmotor driven track transfer vehicle with dumping platform hydraulic lifting
    Working principle of track transfer vehicle

    The track transfer vehicle is powered by electric busbar (electric sliding line). It gets power from sliding line during the cart running. The electric control system of the cart realize it start, stop, go forward and backward.


    Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform

    Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform


    Features of track transfer vehicle
    • Simple structure, low cost;
    • Has no strict on rail construction;
    • Suitable to working area with short running distance;
    • Suitable to working area with high using frequency;
    • Has no limit on running distance;
    • Can be applied in high-temperature environment;
    • Box girder structure;
    • Reasonable design, reliable operation;

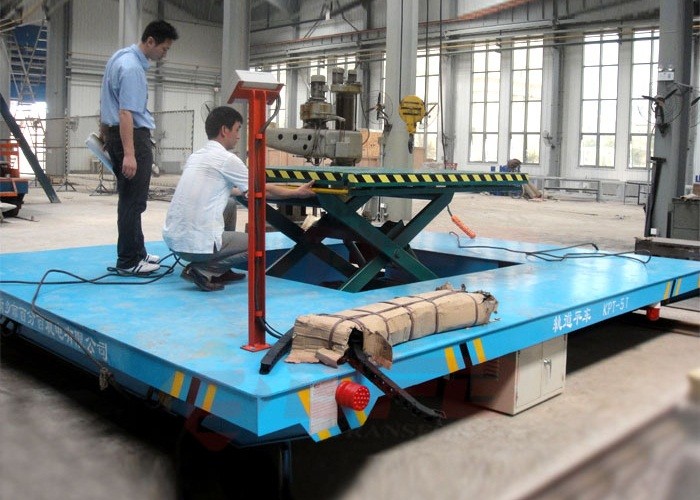

    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • High efficiency, low energy consumption;

    Detailed description of track transfer vehicle


    This kind of track transfer vehicle is running on steel tracks or steel squre bars. For special handling requirement, additional rails can be installed on the platform of the rail traverser, then another rail cart can run on the platform. It can solve the transferring problem with crossing rail or 90 degree rails.


    Production flow of track transfer vehicle



    Main parts of track transfer vihicle


    The main parts of track transfer vehicle includes frame, cast wheel, motor and reducer, electric control box, and other safety device.


    Steel frame Casting wheel Light & sound alarm

    Driving mechanism Reducer Bumper


    Technical parameters of track transfer vehicle

    Model
    KPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of track transfer vehicle

    This kind of track transfer vehicle is applied in metal industry to transfer paper coils from production to warehouse. It is running on steel tracks or steel squre bars.It is also applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer cylinder materials from producing line to store.


    Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform


    In order to protect security, a V-frame is added on the platform.


    Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform

    Delivery of crane tracks trailer

    Generally the track transfer vehicle is delivery through container, but if the platform is too large, it can be delivery through frame rack.
    Customer visit in our factory

    ladle car ladle car


    Customer feedback

    Quality control of rail transfer table

    Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform

    Other rail handling car in BEFANBY company

    Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform Gearmotor Driven Hydraulic Lifting Transfer Cart With Dumping Platform



    Our company



    Our certificate


    FAQ

    1. Q: What is the capacity of track transfer vehicle? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.
    2. Q: What is the using candition A: The environment temperature should be in level. such as production line
    3. Q: What is the working speed of the ladle car? A: The standard running speed is 0-20m/min.
