    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX
    Certification : CE,SGS,ISO9001
    Price : $3000-$6000/ per set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 800 set/sets, per year
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

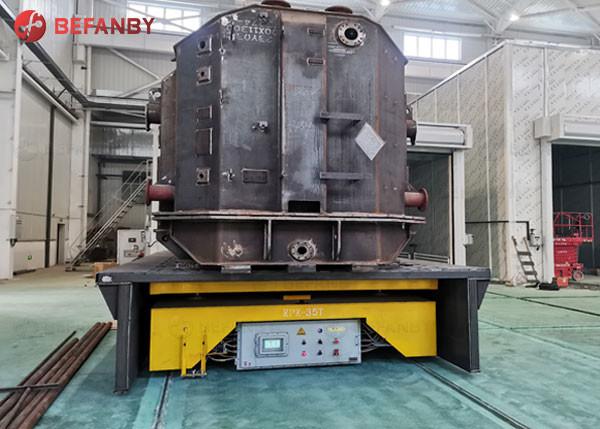

    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device

    1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device
    1. The Brief Introduction of 1-500 ton heavy machinery industry equipment rail transfer cart

    The 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device is our most popular carts. It is used to move dies,coils or materials between the pressroom and the mold storage and maintenance area. This 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device has the superiority of moving the entire length of the manufacturing equipment, where molds that are moved by cranes are limited to the distance of the crane travel, or must be transferred from crane bay to crane bay. Our standard htransfer cars is controlled by a hand held push button controller and wireless control with small turning radius.



    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device

    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device


    2. The Safe Device of 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device

    1. Sound and light alarm lamp,alarm worker to make the walk safer


    2. Dead man stop, Stop automatically when pedestrian or obstacle is detected


    3. Emergency stop button, can make the cart stop immediately


    4. Limit switches and buffers on both sides


    5 .Bumper installed the end of the cart to protect the carts against the wall


    6. The structural parts are made of Q235B rolled steel plate, 1.5 times load design and 1.25 times load test


    7. With conventional electrical protection: over current, over voltage, under voltage, short circuit, overheating, grounding, leakage and other protective devices


    8. Optional wireless remote control operation


    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device


    3. The Technique Parameter of 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning
    ModelKPX-2tKPX-5tKPX-10tKPX-16tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-63tKPX-80tKPX-100tKPX-150t
    Rated Load25101620253040506380100150
    Table sizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Height(H)4505005005505506006006506507008009001200
    Wheel Base1200250026002800280032003200380042004300470049007000
    Rail Inner Gauage1200143514351435143514351435143514351435180020002000
    Wheel Diameter270300300350350400400500500600600600600
    Wheel Quantity4444444444448
    Ground Clearance50505050505050505075757575
    Running Speed25252520202020202020202018
    Motor Power11.222.233.5456.38101515
    Battery Capacity180180160180180250250300330400400440600
    Battery Voltage24364848484848484848727272
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Weight2.83.64.25.55.96.56.87.6810.812.814.626.8
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100

    5. The Transporting Details of 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning



    A. BEFANBY 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning device have been exported to many countries such as US, Canada, Thailand, Netherlands, South Africa, UAE, Turkey, Saudi Arabia etc.


    B. The 1-500 ton heavy machinery industry equipment rail transfer cart with audible warning devices is packed with tarp, and the wheel , rails and parts of the CE bulk material handling equipment battery powered transfer cars on rails will be packed by the high quality wooden case.


    C. According the table size and quantity, the industrial material handling robust railcar would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.


    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
    6. BEFANBY Company

    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device

    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
    Our Workshop Equipment

    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device

    Our Sales Performance for half years
    The largest capacity can reach to 500 tons or more.
    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
    BEFANBY Transfer Cart Application
    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device

    1-500 Ton Heavy Machinery Rail Transfer Cart With Audible Warning Device
