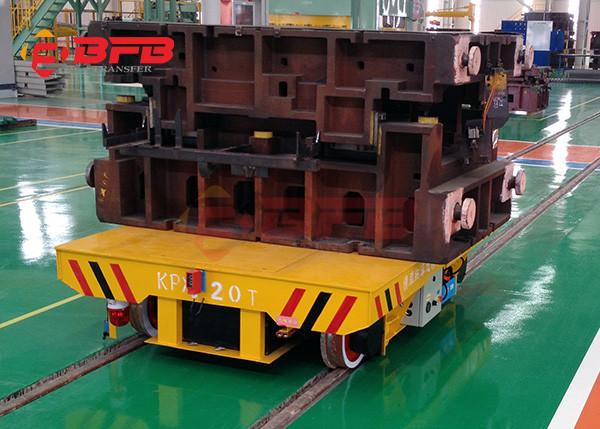

    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX
    Certification : CE,SGS,ISO9001
    Price : $3000-6000/Per Set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 800 set/sets, per year
    Delivery Time : 40-50 days as usual delivery,30-40 days for urgent delivery
    • Product Details
    • Company Profile

    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould

    Industrial project application workshop warehouse battery transfer cart rail for mould
    1. The profile of Industrial project application workshop warehouse battery transfer cart rail for mould
    Introduce

    Our Industrial project application workshop warehouse battery transfer cart rail for mould is widely used in the processing line of punching, pouring, cold heading, extrusion, powder metallurgy parts pressing, pressure casting, and engineering plastics, rubber, ceramics and other products of the compression molding or injection molding. Our die transport products are operated on rails or travel on cement floor, and include die transfer cart, die transport trolley, die rail cart, trackless carrier, battery operated carriage, electric flat vehicle, industrial trailer, motorized railway bogie, steering platform table etc.


    Working principle
    This kind of Industrial project application workshop warehouse battery transfer cart rail for mould is powered by Maintenance free battery , The maintenance free battery is installed in the cart, which can be installed in the side or one side of the motorized cart, and supply DC electricity to the control system, which makes the cart start, stop, go forward, back forward and so on.
    Cart Parts

    The transfer cart is made of Maintenance free battery, Intelligent Charger; DC motor(soft start), reducer, cart frame, rail wheel, electric appliance, operation handle, remote control, Sound&light alarm, dead man top, etc.


    Feature

    1. The motorized cart can realize turning due to no cable(S rail, C rail, arc shaped rail)

    2. The motorized cart has no limited workig distance

    3. The motorized cart can be applied in high temperature, explosive, dust, water road environment and so on.

    4. The running speed is adjusted

    5. Save cost with high frequency.

    6. Long life time and environmental

    7. Please contact us if you'd like to learn more.


    Application

    The China customized yellow motorized cart moving on rails,BEFANBY electric battery powered industry vehicles is mainly applied in many occasions.


    a. Working line (ring production line, loop production line),

    b. Metallurgy industry (steel ladle)

    c. Warehouse transport, ship industry (maintenance, assemble, container transport)

    d. Workpiece transport in workshop,

    e. Lathe transport

    f. Steel factory (steel billet, steel plate, steel coil, steel pipe, section steel, steel structure)

    g. Construction(bridge, simple building, concrete, concrete column)

    h. Petroleum industry (oil pump, sucker rod and parts)

    I. Energy (polycrystalline silicon, generator, windmill)

    j. Chemical industry (electrolytic cell, retort etc),

    k. Railway (rail maintenance, rail welding, train tractor).


    Customizable manufacture the transfer cart


    1. Appearance:Table Size, Table Material, Table structure,Load Capacity, Color, Wheel Base,Detachable structure etc.


    2. Special Function: Hydraulic Lift Table, Dumpling, Climbing, V shape, PLC control system, Automatic Positioning, clamping device, Anti-explosion, Heat-proof function, Weighting system etc.


    3. Safety Device: Alarm light, Emergency stop button, Radar detector, Buffer, V shape support, Guardrails etc.


    4. Special Design: Round corner, Hold pendant box, Lifting hole etc.



    More details or you'd like to quote, please kindly inquired us!


    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould

    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould


    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould

    2. Technique Parameter of Industrial project application workshop warehouse battery transfer cart rail for mould
    ModelKPX-2tKPX-5tKPX-10tKPX-16tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-63tKPX-80tKPX-100tKPX-150t
    Rated Load25101620253040506380100150
    Table sizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Height(H)4505005005505506006006506507008009001200
    Wheel Base1200250026002800280032003200380042004300470049007000
    Rail Inner Gauage1200143514351435143514351435143514351435180020002000
    Wheel Diameter270300300350350400400500500600600600600
    Wheel Quantity4444444444448
    Ground Clearance50505050505050505075757575
    Running Speed25252520202020202020202018
    Motor Power11.222.233.5456.38101515
    Battery Capacity180180160180180250250300330400400440600
    Battery Voltage24364848484848484848727272
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Weight2.83.64.25.55.96.56.87.6810.812.814.626.8
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100

    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould


    3.Transportation solution of Industrial project application workshop warehouse battery transfer cart rail for mould


    I, BEFANBY Industrial project application workshop warehouse battery transfer cart rail for mould not only have sold across the country, but also exported to US, Canada, Thailand, Netherlands, South Africa, UAE, Turkey, Saudi Arabia etc.


    II, The Industrial project application workshop warehouse battery transfer cart rail for mould is packed with tarp, and the wheel , rails and parts of the industrial material handling robust railcar will be packed by the high quality wooden case.


    III, According the table size and quantity, the industrial material handling robust railcar would be transported to clients by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.


    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould
    4. BEFANBY Company

    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould

    Our Workshop Processing
    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould

    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould

    Industrial Project Application Workshop Warehouse Battery Transfer Cart Rail For Mould
