Crossing rail ransfer car on turnplate for aotumobile production line

Working principle

When the rail transfer car runs on the turnplate, turn the turnplate automatically or with manpower to connect the railways on the turnplate with 90 degree turning railway. The turnplate can turn 0-360 degree freely.

Advantages of rail turnplate

• Flexiability and environmental;
• Can turn 0-360 degree;
• Has no limit on working frequency
• Has no strict requirement on rail construction;
• Commonly work together with rail transfer cart;
• Suitable for limit space working condition;

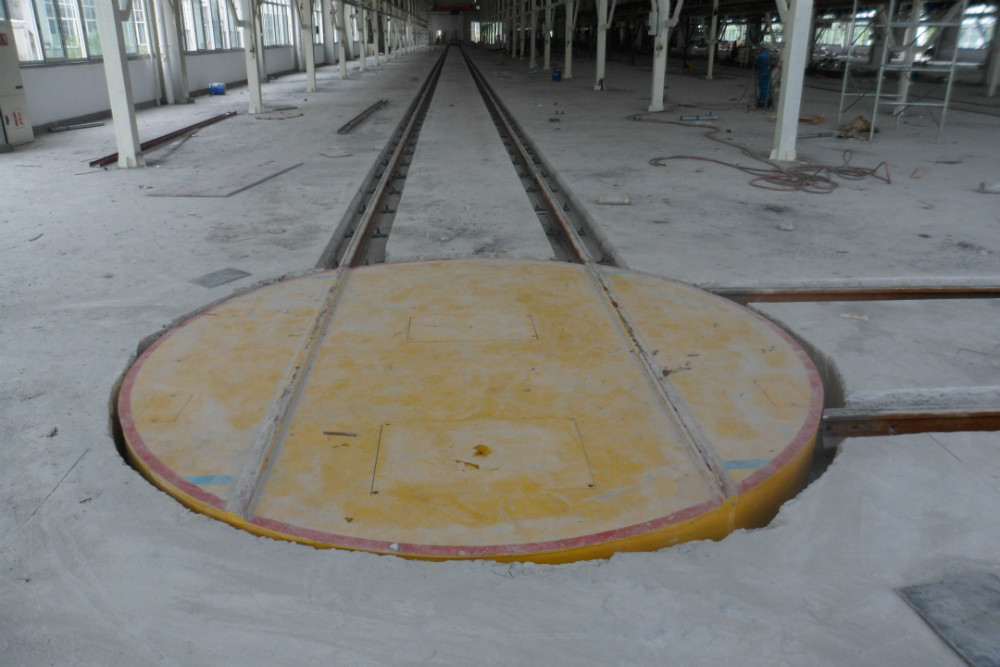

Photo show of rail turnplate

Application of the rail turnplate

This turnplate rail transfer car is suitable to be used on the annular railway and crossing railways for the equipment's producing line. the turnplate system has the features of stable driving, high accuracy of rail connection and can be totally automatically operated.

The large diameter rail turnplate is applied in the new steel plate. We can customized the diameter and size of the turnplate according to clients' requirement.

Manufacturing

Generally the rail turnplate is delivery through container. If the dimension of the transport is too large,

it can be break up or delivery through flat rack.
