    50t large capacity rail transfer carriage for assembly line

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPC-50T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

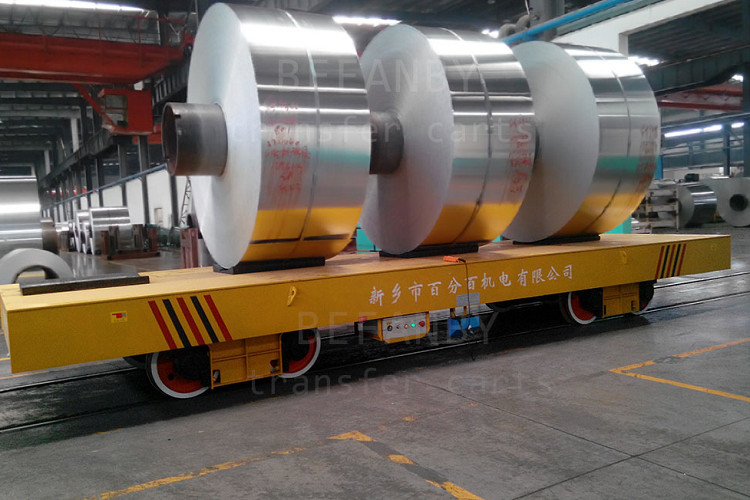

    50t large capacity rail transfer carriage for assembly line

    50t large capacity rail transfer carriage for assembly line
    Working of rail transfer carriage

    Rail transfer carriage is very popular with the customers for assembly line. This kind of rail transfer carriage is power by busbar(electric sliding line). It gets power from sliding line durning the cart running. The electric control system of the cart realize it start, stop, go forward and backward. It is suitable to applied in production line or assembly line, to transfer heavy material or parts, the distance is better to less than 50m.


    50t large capacity rail transfer carriage for assembly line

    Advantages of rail transfer carriage
    • Box girder structure, not easy to deform
    • simple structure, low cost
    • no strict requires on rails
    • can be applied high using frequency condition
    • can be used in high-temperature environment
    • can be used in explosion-proof environment
    Main Parts of rail transfer carriage

    rail transfer carriage

    Production of rail transfer carriage

    rail transfer carriage

    Technical parameters of rail transfer carriage
    Model
    KPC-2TKPC-10TKPC-20TKPC-30TKPC-50TKPC-63TKPC-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of rail transfer carriage
    50t large capacity rail transfer carriage for assembly line
    50t large capacity rail transfer carriage for assembly line
    50t large capacity rail transfer carriage for assembly line50t large capacity rail transfer carriage for assembly line
    Delivery of rail transfer carriage

    rail transfer carriage

    Customer visit in our factory

    rail transfer carriage rail transfer carriage


    Related products in our factory
    50t large capacity rail transfer carriage for assembly line50t large capacity rail transfer carriage for assembly line 50t large capacity rail transfer carriage for assembly line50t large capacity rail transfer carriage for assembly line
