Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart

Xinxiang Hundred Percent Electrical and Mechanical Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart from wholesalers

    Buy cheap Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart from wholesalers
    • Buy cheap Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart from wholesalers
    • Buy cheap Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart from wholesalers
    • Buy cheap Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart from wholesalers
    • Buy cheap Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart from wholesalers
    • Buy cheap Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart from wholesalers
    • Buy cheap Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart from wholesalers

    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    Supply Ability : Power supply mode
    Payment Terms : Table size
    • Product Details
    • Company Profile

    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart

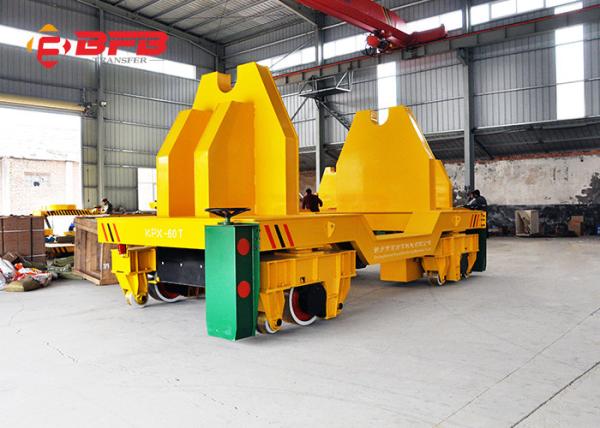

    Steel ladle transfer carts on rail with electric scale and screen

    KPX series' ladle transfer cart---- it is powered by storage battery, it is our specialized research, Simply speaking, it is an electric cart. Compaired with KPD, It has no limited distance; Compaired with others, it is simple operation and structure, But its main source powered is battery, the maintenance free battery is equipped to make the cart more convenient. its lifetime reachs to about 2.5 years, About this, it is popular in many foreign countries like South Aferican ,Germany , Turkey etc.Our company have professional team and utilize more advanced technique to make it.

    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart


    Character Showing
    • Simple structure
    • Anti-explosion
    • Anti-high temperature
    • Customization can be supported
    • Safe devices are installed
    • China professional manufacture
    • Low noise
    • Easy Operation
    • Environmental
    • Long lifetime (about 2.5 years)
    • Stable start
    • Big starting power
    • Small impact to the geer reducer
    • Low voltage
    • Regular maintenance
    • Charge 750 times, reduce 1/3 lifetime
    Parts Showing

    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart

    Working Principle

    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart

    KPX series' railroad carriage is battery powered . The battery is installed in the carts. The batteries supplied the electricity to the DC motor through the electrical control system. By this ways, we can make the flat cart to start, stop, go forward , back ward , adjust the speed and so on.
    Application Showing

    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart


    KPX seires' transfer cart can be used in many occasions, Such as industry field(Steel plant/Metallurgy Field); Chemical Industry(Copper Industry); Warehouse;Working Line; etc. due to its simple structure, wherever in the plant or assembly line,only exists track, and the battery is charged fully,it can transport anywhere.


    For ladle transfer cart, It can run in high temperature, and the load capacity can reach to 300t. and the electrical scale and screen can be equipped as per your demand. and it has been our comment product for applied in steel field.

    Different ladlr transfer cart showing
    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer CartCustomized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer CartCustomized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer CartCustomized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart
    Technique Parameter
    ModelKPX-2tKPX-5tKPX-10tKPX-16tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-63tKPX-80tKPX-100tKPX-150t
    Rated Load25101620253040506380100150
    Table sizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Height(H)4505005005505506006006506507008009001200
    Wheel Base1200250026002800280032003200380042004300470049007000
    Rail Inner Gauage1200143514351435143514351435143514351435180020002000
    Wheel Diameter270300300350350400400500500600600600600
    Wheel Quantity4444444444448
    Ground Clearance50505050505050505075757575
    Running Speed25252520202020202020202018
    Motor Power11.222.233.5456.38101515
    Battery Capacity180180160180180250250300330400400440600
    Battery Voltage24364848484848484848727272
    Running Time When Full Load4.325.44.84.3443.53.63.333.63.22.9
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Weight2.83.64.25.55.96.56.87.6810.812.814.626.8
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100
    Our Company

    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart

    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
    Our Advantage

    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart

    Our Customer

    Customized Steel Rail Transfer Trolley , Scale / Screen Electric Transfer Cart

    Production Supply Scope
    Product NameModel No.Power Supply ModeLoad CapacityOther ItemsUsage
    Rail Transfer CartKPDConductor RailLoad range 1-300ton, can be customized per client demandRunning distanceOrdinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
    Battery Powered Transfer CarKPXBatteryUsing frequency
    Motorized Transfer TrolleyKPJCable DrumRunning distance
    Busbar Powered Handling CartKPCBusbarWorking shop
    Towed Rail TrailerKPTractor1-100tWorking shop
    Steerable Towed CarBWTTractorLoad range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.Working environment
    Trackless Handling MachineBWPBatteryWorking path
    Our After Service
    • Our commitment:
    • The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material
    • 16 hours engineering service and 24 hours internet service for our customers
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
