Custom manuafcturer high temperature proof molten metal ladle
transfer car for steel plant
BEFANBY designed and manufactured the transfer car and provide
innovative handling solution with more than 16 years' experience.
The ladle transfer car also is our one of the products which is to
the handling and weighing of a steel ladle in a steel mil,The ladle
transfer cart is designed to resist to high temperatures and to
work continuously.
Of course, all our product are customized as per customers' true
demand. such as dimensions,capacity, loading platform
superstructure, speed and many others special function can be
customized as per client request
The ladle transfer car can be used in all kinds of environment with
no limited running distance.
Its application range includes: mould field, car field, steel, iron, heavy industry, light
industry, chemical, mine, ship, project, spaceflight, coal, nuclear
energy, hydraulic engineering, workshop, etc.
For material transport: bolier, coil items, pump, transformer, shaft, drum, steel ladle,
steel structure, steel pipe, mould, beam, container, heavy
equipment, Aluminum product, compressor, polycrystalline silicon,
motor, coil, scrap, pallet...
All can be customized as per customers’ requirement.And our
business is meeting your business need, hope our professional team
can help you well with rich experience.
Character Showing
1. high level automation(self propelled/steerable)
2. The largest capacity can reach to 500t
3. Safe parts are installed in the transfer car(warning light,
e-stop, buffer...)
4. Robust sturdy car frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied
together perfectly
7. Remote control&hand pendant control make the opration more
convenient.
8. The speed can be adjusted.
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using
lifetime
11. Low noise and do not pollute the environment

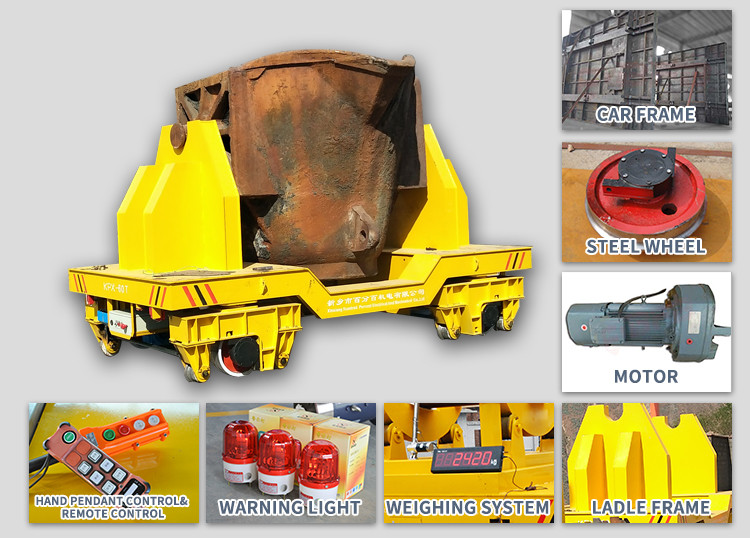

Parts Showing
Working Principle
The kinds of ladle transfer car is battery powered . The battery is
installed in the cars. The batteries supplied the electricity to
the DC motor through the electrical control system. By this ways,
we can make the transfer car
to start, stop, go forward , back ward , adjust the speed and so
on.
Technique Parameter
| Model | KPX-5t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
| Rated Load | 5 | 20 | 25 | 30 | 40 | 63 | 80 | 100 | 150 |
| Table size | Length(L) | 3500 | 4000 | 4500 | 4500 | 5000 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 500 | 550 | 600 | 600 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base | 2500 | 2800 | 3200 | 3200 | 3800 | 4300 | 4700 | 4900 | 7000 |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power | 1.2 | 3 | 3.5 | 4 | 5 | 8 | 10 | 15 | 15 |
| Battery Capacity | 180 | 180 | 250 | 250 | 300 | 400 | 400 | 440 | 600 |
| Battery Voltage | 36 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load | 5.4 | 4 | 4 | 3.5 | 3.6 | 3 | 3.6 | 3.2 | 2.9 |
| Max Wheel Load | 25.8 | 77.7 | 94.5 | 110.4 | 142.8 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight | 3.6 | 5.9 | 6.5 | 6.8 | 7.6 | 10.8 | 12.8 | 14.6 | 26.8 |
| Recommended Rail Model | P18 | P24 | P38 | P38 | P43 | P50 | P50 | QU100 | QU100 |
Attend the Trade Fair to Dubai
Our Company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a
collection of research, design, manufacture, installation and
after-sales service of electric handling bogie ,transfer carts as
one of the professional manufacturing company, which has a
modernized management team and excellent staff.And our prodcuts
gets CE, SASO,SGS,ISO certificate and other 8 national patent, our
products have been exported to more than 40 countries and
regions,such as Germany, Mexico, USA, Turkey, South Africa,
Singapore etc.
