    PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-50T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap

    PLC automatic controlturning rail ladle car for steel liquid or steel scrap
    Working of ladle car

    The rail ladle car is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive rail ladle car working.


    PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap


    Advantages of ladle car
    • Box girder structure;
    • Anti-high temperature and explosion-proof;
    • PLC automatic control
    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • Electric weighing scale and LED display can be installed;
    • Can run on straight rails or arc-rail, turning rails
    • Low failure rate, working steady;
    • High efficiency, low energy consumption,
    • Reasonable design, reliable operation.
    Application of ladle car

    The steel ladle car is commonly applied in steel industry or metallurgy industry to transfer liquid steel, steel ladle, steel scraps, etc. It can be used within workshop handling or between workshops.


    In order to ensure the platform and driving system damaged by high-temperature, there is firebrick laid on the platform of the ladle. Or the driving system is protected by special design.


    This kind of ladle car is running on straight rails or S-shaped rails.



    PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap

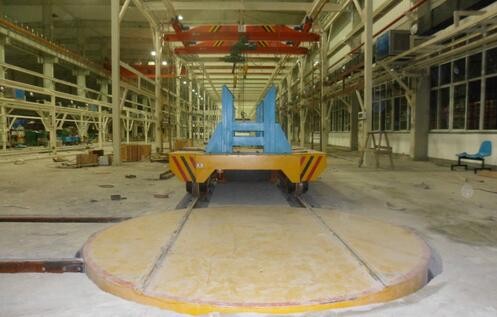

    The applying site in one of our client’s factory, they use the ladle car to transfer steel scraps ladle from production line to warehouse. In order to improve the working efficiency, the use two sets ladle cars for alternative using.


    Several kinds of of ladle car we provide to our customer


    PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel ScrapPLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel ScrapPLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel ScrapPLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap



    Technical parameters of ladle car
    Model
    KPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Delivery of ladle car

    PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap

    Customer visit in our factory

    ladle car ladle car


    Quality control of steel ladle car

    PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap


    Other rail handling car in BEFANBY company

    PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap PLC Automatic Control Ladle Transfer Cart For Steel Liquid / Steel Scrap


    FAQ

    1. Q: What is the capacity of the ladle car? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

    2. Q: What temperature the ladle car can bearing? 500 degree or higher?

    A: The environment temperature can reach 200 degree, and the steel ladle temperature can reach to 1500 degree.


    3. Q: What is the working speed of the ladle car?

    A: The standard running speed is 20m/min.
