Foundry plant mold transfer trolley steel die mold handling
inter-bay
This kind of foundry plant mold transfer trolley is running on
steel rails or steel squre bars.It is commonly applied in steel
plant, aluminum factory, plastic pipes factory, etc to transfer
rounded material, from producing line to store. The power supply of
the rail transfer car can be customized, we can recommend client a
suitable type according to their working site, It can be storage
battery power, cable drum power, Busbar power, conductor rail
power, towed cable power etc.
It is battery power,with advantages of flexiability, it can run on
S shape rail, arc-shape rail and stright rails.
Structure of the foundry plant mold transfer trolley

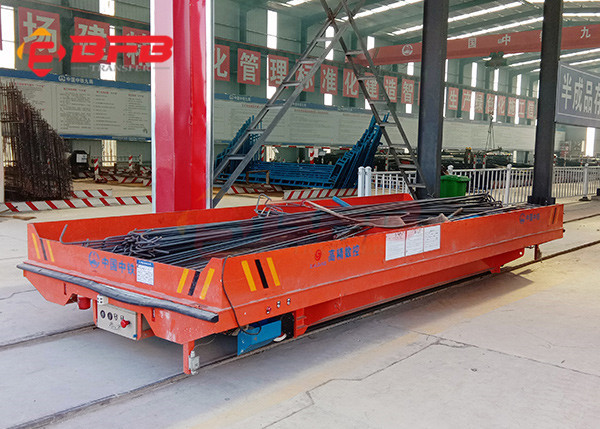

Photo show of foundry plant mold transfer trolley
The battery power foundry plant mold transfer trolley is applied in
metal industry factory to transfer large dimension steel plate,
steel structure. The transport bogie is remote control, it is
convenient to operate.
The foundry plant mold transfer trolley is used to transfer steel
structure from the production line to painting room. With
advantages of anti-explosion and anti-temperature, the cart can be
running in paing room or blasting room for painting or rust
removing.
These kind of foundry plant mold transfer trolley is applied to
transfer heavy steel or aluminum coils. In order to inviod the
steel coils falling down from the transfer cart, we designed a
V-frame. It can protect the coils also the security. We can
recommend you the direction of the V-frame according to the coils.
The parameter of foundry plant mold transfer trolley
Model | KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 |
| Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 |
| Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 |
| Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 |
| Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
Application of rail transfer car
The battery power foundry plant mold transfer trolley is mainly
applied in assembly line(ring production line, loop production
line), metallurgy industry (steel ladle), warehouse transport, ship
industry (maintenance, assemble, container transport), workpiece
transport in workshop, lathe transport, steel factory(steel billet,
steel plate, steel coil, steel pipe, section steel, steel
structure), construction(bridge, simple building, concrete,
concrete column), petroleum industry(oil pump, sucker rod and
parts), energy(polycrystalline silicon, generator, windmill),
chemical industry(electrolytic cell, retort etc), railway(rail
maintenance, rail welding, train tractor).
Assembly line: Due to advantage of without cable, it is mainly applied in
assembly line, can realize the straight rail, S shape rail, U shape
rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing
rail etc.
Metallurgy industry: With the functions of steady traveling, stepless speed regulation,
the cart is commonly applied to transfer steel ladle, aluminum
ladle, lead ladle, steel slag etc. Generally the outer surface
temperature of the ladle is 200-300 degree , due to the high
temperature, the cart should be designed with heat exposure proof
device, expecially to the battery, motor,
reducer and electric appliance.
Ship industry: Due to the large load capacity, the cart is applied in ship
industry to transfer workpieces, maintenance tools(propeller, motor
etc.). The cart is also applied in dock or harbor to transfer
cargoes and containers. If needed, the hydraulic lifting device ,
weighing device and automatic device can be added.
