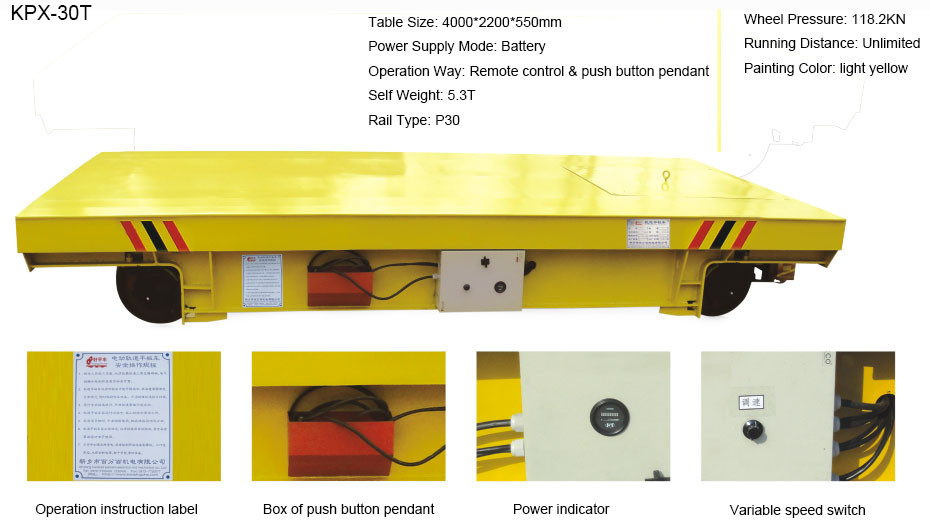

    30T Die Change Mold Transfer Cart , Automobile Assembly Line Hydraulic Die Cart

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-30T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    30T Die Change Mold Transfer Cart , Automobile Assembly Line Hydraulic Die Cart

    30 tons die change driving carriers on rail in automobile assembly line
    Working principle of die change driving carriers

    The die change driving carriers on rail is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.


    die change driving carriers


    Detailed description of 30 tons die change driving carriers


    This kind of steel coil handling railway trailer is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.


    die change driving carriers die change driving carriers


    The main parts of steel coil handling railway trailer outdoor includes storage battery, driving system, box girder frame, electric appliance, etc.


    die change driving carriers large container transport wagon 25t transfer wagon

    Frame Storage battery Charger

    die change driving carriers cast wheel for the flat trolley die change driving carriers

    Driving system Casting wheel Alarm


    Features of die change driving carriers on rail

    • Box girder structure
    • Without cable, flexibility & durable
    • Can run on arc-shape rails, S-shape rails, crossing rails
    • can be applied high using frequency condition
    • can be used in high-temperature environment
    • can be used in explosion-proof environment
    • Reasonable design, reliable operation;
    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • High efficiency, low energy consumption;

    Technical parameters of die change driving carriers


    Model
    KPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of steel coil handling railway trailer

    This kind of steel coil handling railway trailer is running on steel tracks or steel squre bars.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.


    die change driving carriers die change driving carriers

    The 20t die driving system is applied in die manufacturing plant to transfer steel dies from production line to warehouse or to painting room.


    30T Die Change Mold Transfer Cart , Automobile Assembly Line Hydraulic Die Cart 30T Die Change Mold Transfer Cart , Automobile Assembly Line Hydraulic Die Cart


    die change driving carriers die change driving carriers


    In order not to influence other vehicles travelling within the workshop, the rail is in level with the floor.


    The die change driving carriers also applied in the following working station:

    • Carry loads along assembly lines;
    • transfer material from one work station to the next;
    • store and transport an entire shift worth of production.
    • They can even be used as a stable yet moveable machine base.

    rail flat trolley

    The die change driving carriers can be applied on turning rails, arc-shape rails.
    Delivery of steel coil handling railway trailer

    interbay transfer cart interbay transfer cart


    interbay transfer cart interbay transfer cart

    Generally the steel structure die change driving carriers is delivery through container, but if the platform is too large, it can be delivery through frame rack
    Customer visit in our factory

    steel coil handling railway trailer

    Quality control of interbay transfer cart

    steel coil handling railway trailer

    Other rail interbay transfer cart in BEFANBY company

    steel coil handling railway trailer 30T Die Change Mold Transfer Cart , Automobile Assembly Line Hydraulic Die Cart

    30T Die Change Mold Transfer Cart , Automobile Assembly Line Hydraulic Die Cart


    Our company

    steel coil handling railway trailer

    Our certificate
    paper industry interbay transfer cartpaper industry interbay transfer cartsteel coil handling railway trailer

    FAQ

    1. Q: What is the capacity of the die change driving carriers? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

    2. Q: What is the using candition?
    A: The environment temperature should be in level. such as production line

    3. Q: What is the working speed of the die change driving carriers?
    A: The standard running speed is 0-20m/min.
