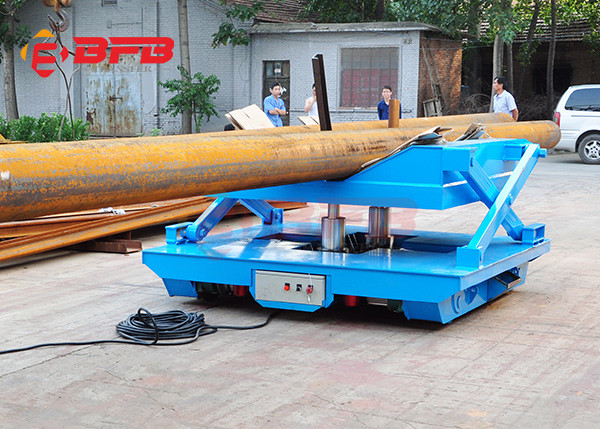

Description of hydraulic diven scissor lift trolley

The frame of hydraulic diven scissor lift trolley is welded by high quality steel, with the assistant of running mechanism , gears, AC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.

The hydraulic diven scissor lift trolley is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.

Functions of hydraulic diven scissor lift trolley

• Go forward and backward,
• Turn left and right,
• Adjust speed button,
• Indicator light,
• Electric indicator light and other control buttons.

​

KPDZ type machinery equipment transport is powered from 36v two-phase rails. It is two-phase electricity on rails. the transfer cart’s wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the carts. And then the AC 36v is transfer into DC 36v and then control the DC motor through the DC control system to make transfer cart start,stop,forward, and backward,etc.

The voltage of operating system is 36v safe voltage. After the transformer step-down from 380v AC three-phase, the rails got the electricity.

Advantages of hydraulic diven scissor lift trolley

• Has no lit on using time and high working frequency;
• Can be used in high-temperature environment;
• Can be used in explosion-proof environment;
• Safety and flexibility;
• Large toad capacity, can reach to 50 tons;

Detailed description of hydraulic diven scissor lift trolley

The hydraulic diven scissor lift trolley is suitable for working environment with not so long running distance, such as steel factory, machinery manufacturing plant, etc.

This kind of scissor lift trolley is widely applied in workshop for maintenance.

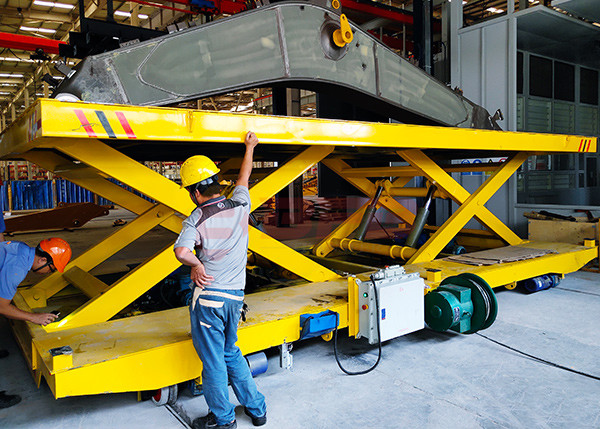

This kind of hydraulic diven scissor lift trolley is composed with 3 layers, the bottom equipment can travel in wide gauge direction(horizontal), the second handling equipment travel in longitudinal direction. There equipped hydraulic lifting device on the platform of the second cart.

The hydraulic diven scissor lift trolley is applied in workshop to transfer heavy materials bay to bay, it can lift and unload material freely.

This kind of hydraulic diven scissor lift trolley can also be applied on turning rails, arc-shaped rails.

Technical parameters of hydraulic diven scissor lift trolley

Our company



Our certificate

Our service

• Our commitment: The load bearing safety factor of the trolley is no less than 120%.
• Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
• 16 hours engineering service and 24 hours internet service for our customers.
• During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
• Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

Our advantages

You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.

1. The load capacity of the transfer cart is ( ) ton.

2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).

3. The voltage is ( ) V, ( ) HZ, 3 phase.

4. The running time is ( ) hours per day.

5. The running distance is ( ) m per time.

6. The transfer cart runs on the rails or common floor?

7. Whether exist turning?

8. Whether has other special requirement?
