    Steel rail platform handling trolley scrap cast iron prices

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPD-20T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    Steel rail platform handling trolley scrap cast iron prices

    Steel rail platform handling trolley scrap cast iron prices


    Working principle of plstform handling trolley


    The rail mounted platform handling trolley are powered by the low voltage electricity from the railways. The power source AC 380V is transformed into AC 36V two-phase and are respectively connected to the two rails. Then the flat trolley’s wheels conduct the AC36V on rail into the electrical appliance box at the bottom of the carts. And then the AC 36V is transformed into DC 36V and then control the DC and adjust the speed and so on. KPDZ platform handling trolley can be used both on the ‘S’ and arc-shaped railways.


    Photo show of platform handling trolley
    Steel rail platform handling trolley scrap cast iron prices

    These kind of platform handling trolley is applied to transfer heavy steel or aluminum coils. In order to inviod the steel coils falling down from the handling trolley, we designed a V-frame. It can protect the coils also the security. We can recommend you the direction of the V-frame according to the coils.


    The main parts of the platform handling trolley includes motor, reducer, cast wheel , car frame, electric appliance etc.


    We design a pendant box to put in pendant or remote control. It is convenient to lay remote control when finished work.


    A hydraulic lifting device and V-frame device can be added on the platform, it can protect the coils fall down during working.


    Application of steel rail platform handling trolley


    Steel rail platform handling trolley scrap cast iron prices

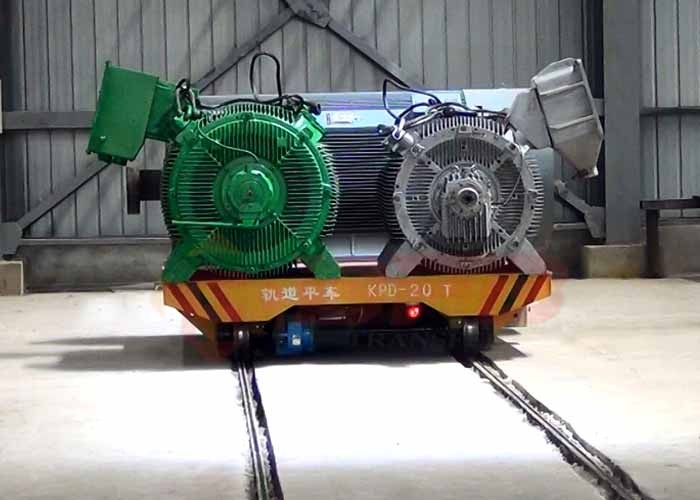

    The rail platform handling trolley is applied in metal factory to transfer heavy load machine parts.


    Steel rail platform handling trolley scrap cast iron prices

    This kind of steel rail platform handling trolley on steel rails or steel squre bars.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.


    The platform handling trolley is applied in metal industry factory to transfer large dimension steel plate, steel structure. The sheet handling bed is remote control, it is convenient to operate.


    They also can be used in the high-temperature environment. The hydraulic lifting device can be installed on the flat carts. The dc motor has the advantages of safety, flexibility, stable start, big starting torque, small impact to the gear reducer, low voltage, long lifetime and so on. But this series have strict requirement on the construction of the railways which need to be insulated. The rated load can not be more than 50T.

    The parameter of platform handling trolley
    Model
    KPD-2TKPD-10TKPD-20TKPD-30TKPD-50TKPD-63TKPD-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100

    BEFANBY Company

    Steel rail platform handling trolley scrap cast iron prices

    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of sheet handling bed in China, meanwhile we also design material handling solution according to client's demand


    Cutomer from worldwide


    Steel rail platform handling trolley scrap cast iron prices

    Parts of BEFANBY Certificates


    Steel rail platform handling trolley scrap cast iron prices

    Delivery of sheet handling bed


    Steel rail platform handling trolley scrap cast iron prices


    Generally the sheet handling bed is delivery through container. If the dimension of the transport is too large, it can be break up or delivery through flat rack.


    BEFANBY advantages
    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
