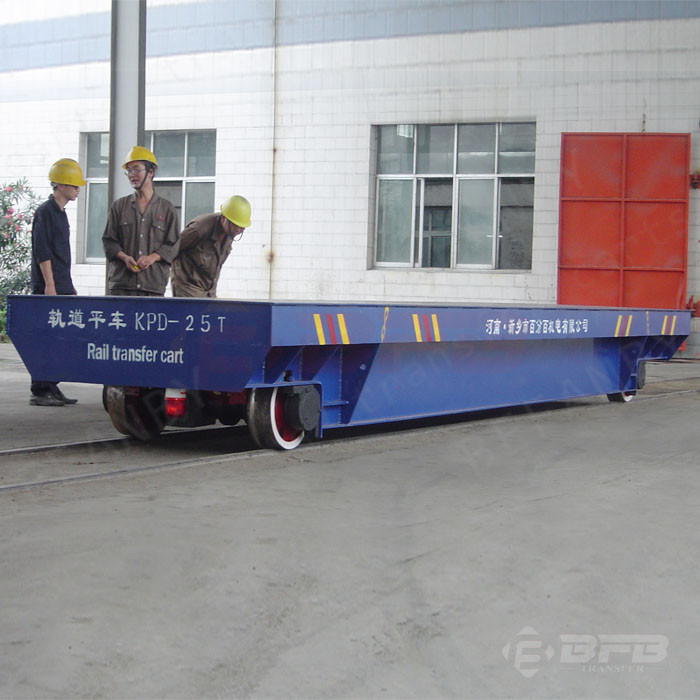

    Rail guided manufacturing factory transformer machinery equipment transport

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPDZ-30T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    Rail guided manufacturing factory transformer machinery equipment transport

    Rail guided manufacturing factory transformer machinery equipment transport

    Description of transformer machinery equipment transport


    The frame of machinery equipment transport is welded by high quality steel, with the assistant of running mechanism , gears, AC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.


    Rail guided manufacturing factory transformer machinery equipment transport Rail guided manufacturing factory transformer machinery equipment transport


    The machinery equipment transport is composed of motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.


    Frame Driving system Steel wheel

    rail car

    Reducer Light & sound alarm Bumper


    Functions of machinery equipment transport

    • Go forward and backward,
    • Turn left and right,
    • Adjust speed button,
    • Indicator light,
    • Electric indicator light and other control buttons.
    Working principle of machinery equipment transport

    KPDZ type machinery equipment transport is powered from 36v two-phase rails. It is two-phase electricity on rails. the transfer cart’s wheels conduct the AC 36v on rail into the electrical appliance box at the bottom of the carts. And then the AC 36v is transfer into DC 36v and then control the DC motor through the DC control system to make transfer cart start,stop,forward, and backward,etc.


    The voltage of operating system is 36v safe voltage. After the transformer step-down from 380v AC three-phase, the rails got the electricity.


    Advantages of machinery equipment transport

    • Has no lit on using time and high working frequency;
    • Can be used in high-temperature environment;
    • Can be used in explosion-proof environment;
    • Safety and flexibility;
    • Large toad capacity, can reach to 50 tons;

    Detailed description of machinery equipment transport


    The machinery equipment transport is suitable for working environment with not so long running distance, such as steel factory, machinery manufacturing plant, etc.


    machinery equipment transport machinery equipment transport


    The machinery equipment transport is applied in workshop to transfer heavy materials bay to bay. The rails should be insulated.


    Rail guided manufacturing factory transformer machinery equipment transport Rail guided manufacturing factory transformer machinery equipment transport



    This kind of machinery equipment transport can also be applied on turning rails, arc-shaped rails.


    Technical parameters of machinery equipment transport


    ModelKPDZ-2tKPDZ-20tKPDZ-50tKPDZ-100tKPDZ-150t
    Rated Load(t)22050100150
    Table Size(mm)Length(L)200040005500650010000
    Width(W)15002200250028003000
    Heigth(H)4505506508501200
    Wheel Base(mm)12002800420049007000
    Rail Inner Gauge(mm)12001435143520002000
    Wheel Diameter(mm)270350500600600
    Wheel Quantity44448
    Ground Clearance(mm)5050507575
    Running Speed(min)0-250-200-200-200-18
    Motor Power(kw)0.82.55.51115
    Transformer Power(KVA)36.8103030
    Transformer Quanity11111
    Running Distance(m)7070505050
    Max Wheel Load(KN)14.477.7174343.8265.2
    Reference Weight(t)2.85.9814.626.8
    Recommended Rail ModelP15P24P43QU100QU100

    Delivery of machinery equipment transport

    Generally the machinery equipment transport is delivery through container, but if the platform is too large, it can be delivery through frame rack
    Customer visit in our factory

    Rail guided machinery equipment transport ladle car

    Quality control of machinery equipment transport

    Rail guided machinery equipment transport

    Other product of BEFANBY company


    Rail guided manufacturing factory transformer machinery equipment transport Rail guided manufacturing factory transformer machinery equipment transport

    Our company

    Rail guided machinery equipment transport

    Our certificate
    Rail guided machinery equipment transportRail guided machinery equipment transport


    Our service

    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

    .
