China factory 4 wheel electric motorized cable reel powered rail
transfer trolley price
BEFANBY designed and manufactured the industrial material transfer
cart and provide innovative handling solution with more than 16
years'experience.the transfer cart can be used in industry plant,
port, workshop, production line and so on to transport ladle, coil,
mold, steel products, workpiece and so on.All the solution are
designed as per customers true demand.

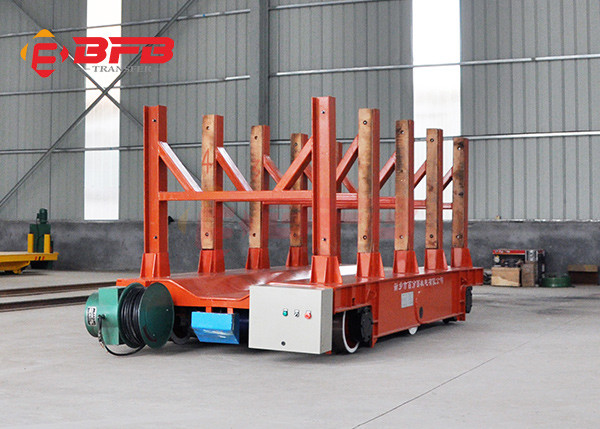

The cable reel powered rail transfer trolley is a good choice if
meeting the following features:
1. The running distance of the transfer trolley is less than 200m
2. The transfer trolley is required to run on the rails
3. The whole working route needn't turn
4. The working frequency is higher
5. The transfer trolley is required easy operation with low cost
Remark: Dimensions,capacity, loading platform superstructure, speed
and many others features can be customized as per client request
despite running on indoor or outdoor, high temperarture or
explosive environment.
Character Showing of China factory 4 wheel cable reel powered rail transfer trolley
price
1. High level automation(self propelled/steerable)
2. The largest capacity can reach to 500 ton
3. Safe parts are installed in the railroad cart(warning light,
e-stop, buffer...)
4. Robust sturdy car frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied
together perfectly
7. Remote control&hand pendant control make the opration more
convenient.
8. The speed can be adjusted
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using
lifetime
11. Low noise and do not pollute the environment
Working Principle of electric material handling motorized transfer
trolley China factory
The kind of rail transfer trolley gets power AC380v through the
device of cable reel which is installed at the bottom of the cart.
The motor is controlled by the power through AC control system. By
the principle, we can make the transfer flat cart to start, stop,
goforward, backforward etc.

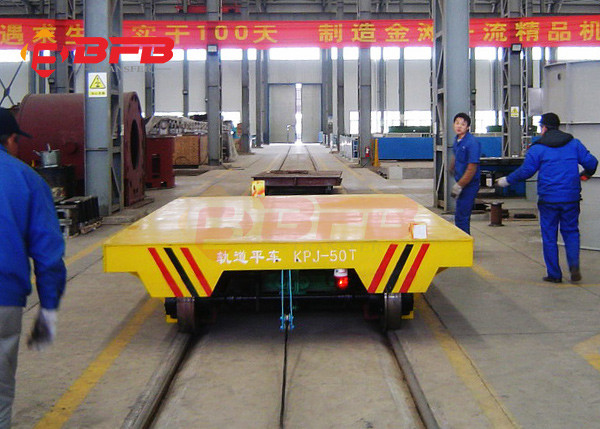

Technique Parameter of 4 wheel material handling electric Motorized Transfer trolley
| Model | KPJ-10t | KPJ-30t | KPJ-50t | KPJ-80t | KPJ-100t | KPJ-150t |
| Rated Load | 10 | 30 | 50 | 80 | 100 | 150 |
| Table size | Length(L) | 3600 | 4500 | 5500 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2200 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 550 | 650 | 700 | 900 | 1000 | 1200 |
| Wheel Base | 2600 | 3200 | 4200 | 4700 | 4900 | 7000 |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter | 300 | 400 | 500 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance | 50 | 50 | 50 | 75 | 75 | 75 |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 18 |
| Motor Power | 1.5 | 4 | 5.5 | 7.5 | 11 | 15 |
| Max Wheel Load | 42.6 | 110.4 | 174 | 278.4 | 343.8 | 265.2 |
| Reference Weight | 4 | 6.5 | 7.8 | 12.3 | 14.1 | 26.2 |
| Recommended Rail Model | P18 | P38 | P43 | P50 | QU100 | QU100 |

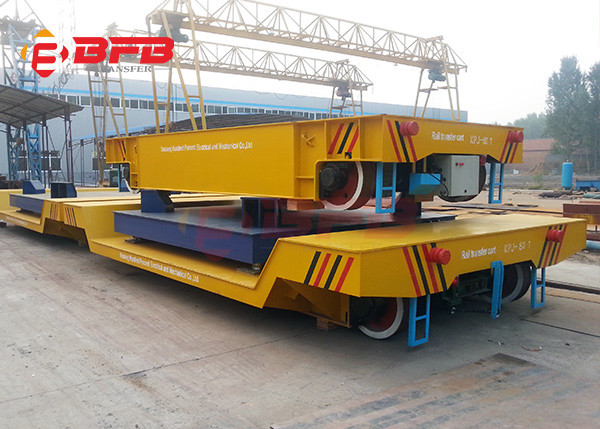

Processing of electric cable reel powered motorized transfer cart China factory
Attend the Trade Fair to Dubai
Our Company----BEFANBY
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and
after-sales service of electric handling bogie ,transfer carts as
one of the professional manufacturing company, which has a
modernized management team and excellent staff.And our prodcuts
gets CE, SASO,SGS,ISO certificate and other 8 national patent, our
products have been exported to more than 40 countries and
regions,such as Germany, Mexico, USA, Turkey, South Africa,
Singapore etc.
You can copy the following options and click here to select your
specific requirement for the transfer trolley to send us. And then
the proper solution and price will be sent to you.
1. The load capacity of the transfer trolley is ( ) ton.
2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).
3. The voltage is ( ) V, ( ) HZ, 3 phase.
4. The running time is ( ) hours per day.
5. The running distance is ( ) m per time.
6. The transfer cart runs on the rails or common floor?
7. Whether exist turning?
8. Whether has other special requirement?
