    25T Electric Motorised Rail Trolley , Low Clearance Crane On Rail Transfer Cart For Shipyard

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPJ-25T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    25T Electric Motorised Rail Trolley , Low Clearance Crane On Rail Transfer Cart For Shipyard

    25T electric low clearance crane trolley on steel tracks shipyard apply

    Working principle of low clearance crane trolley

    KPJ series 25t electric crane trolley is powered by cable drum.The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the rail wagon. The electric flar car can realize full automatic operation by PLC system.


    Detailed description of crane trolley on steel tracks


    This kind of electric crane trolley is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.


    The whole trolley frame adopts crane box girder structure. It has advantages of no easy deformation, large bearing ability.


    electric crane trolley on tracks


    The main parts of the 25t electric crane trolley includes Cable drum, driving system, box girder frame, electric appliance, etc.


    wide platform transport wagon Driving system of the rail wagon

    Frame Driving system Cable drum


    Features of electric crane trolley

    • Anti-explosion,Anti-high temperature;
    • Powered by cable;
    • With lifting holes, convenient to shipment;
    • Stable start, big starting power, long lifetime;
    • Simple structure, low cost ;
    • Running distance is limited;
    • Safe and convenient operation ;
    • High using frequency ;
    • Unlimited load capacity
    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • High efficiency, low energy consumption;

    Technical parameters of crane trolley on steel tracks


    Model
    KPJ-2TKPJ-10TKPJ-20TKPJ-30TKPJ-50TKPJ-63TKPJ-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of crane trolley on steel tracks

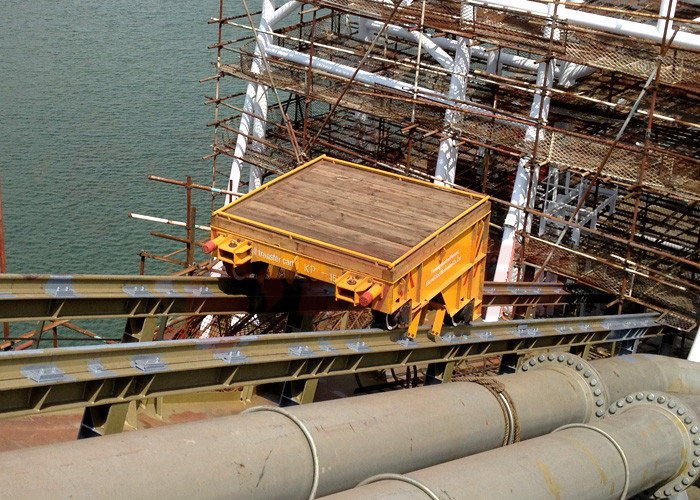

    This kind of electric crane trolley is running on steel tracks or steel squre bars.It is commonly applied in shipyard, seaside to transferring ship parts or ship maintenance machine.

    For the winched towed electric crane trolley is running on tracks on slope, so the wagon is special design. It can meets the working environment and improve the working efficiency.

    crane trolley on steel tracks shipyard apply rail wagon on tracks


    crane trolley on steel tracks crane trolley on steel tracks


    crane trolley crane trolley on steel tracks


    The crane trolley is also applied in the following working station:

    • Carry loads along assembly lines;
    • transfer material from one work station to the next;
    • store and transport an entire shift worth of production.
    • They can even be used as a stable yet moveable machine base.
    Delivery of crane trolley on steel tracks

    crane trolley on steel tracks crane trolley


    crane trolley crane trolley

    Generally the electric flat car on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack
    Customer visit in our factory

    crane trolley

    Customer feedback

     winch towed rail electric flat car

    Quality control of rail traverser

     winch towed rail electric flat car

    Other crane trolleys in BEFANBY company

    25T Electric Motorised Rail Trolley , Low Clearance Crane On Rail Transfer Cart For Shipyard shipyard apply rail wagon on tracks 25T Electric Motorised Rail Trolley , Low Clearance Crane On Rail Transfer Cart For Shipyard



    Our company

    crane trolley on steel tracks

    Our certificate
    crane trolley on steel tracks


    Our service

    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
