    Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPJ-20T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table

    Flat bed foundry plant small table railway rail transport bogie

    Detailed description of railway rail transport bogie


    This kind of automatic railroad trolley is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.


    The frame of cable drum powered automatic railroad trolley is welded by high quality steel, with the assistant of running mechanism, gears, AC motor, cable drum, the cart will function under the control system.


    railroad trolley railroad trolley

    wide platform transport wagon Driving system of the rail wagon

    Frame Driving system Cable drum


    Working principle of railway rail transport bogie

    KPJ series automatic railroad trolley is powered by cable drum. The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the railroad trolley. The railroad trolley can realize full automatic operation by PLC system.


    Features of industrial railway trolley

    • Anti-explosion,Anti-high temperature;
    • Powered by cable;
    • With lifting holes, convenient to shipment;
    • Stable start, big starting power, long lifetime;
    • Simple structure, low cost ;
    • Running distance is limited;
    • Safe and convenient operation ;
    • High using frequency ;
    • Unlimited load capacity
    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • High efficiency, low energy consumption;

    Technical parameters of railway rail transport bogie


    Model
    KPJ-2TKPJ-10TKPJ-20TKPJ-30TKPJ-50TKPJ-63TKPJ-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of railway rail transport bogie

    This kind of automatic railroad trolley is running on steel tracks or steel squre bars.It is suitable to high using frequency working condition without crossing rails, but the running distance is no more than 200m.


    Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table

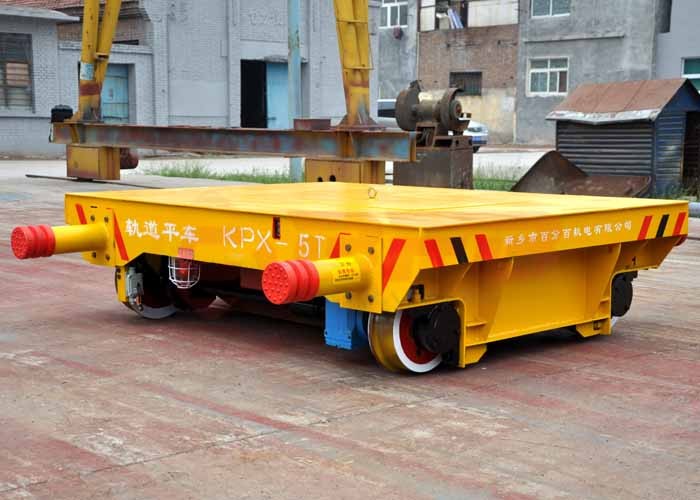

    Small dimension railroad trolley, it equipped with bumper, to protect the trolley be damaged.


    Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table


    railway rail transport bogie railway rail transport bogie

    There is electric forklift on the platform of the railway trolley, It can lift up and down materials freely.


    The transport bogie is also applied in the following working station:

    • Carry loads along assembly lines;
    • transfer material from one work station to the next;
    • store and transport an entire shift worth of production.
    • They can even be used as a stable yet moveable machine base.
    Delivery of railway rail transport bogie

    railway rail transport bogie railway flat wagon


    railway rail transport bogie railway rail transport bogie

    Generally the rail transport bogie on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack
    Customer visit in our factory

    railway flat wagon

    Customer feedback

    railway rail transport bogie

    Quality control of large dimension railroad trolley

    railway rail transport bogie

    Other railway rail transport bogie in BEFANBY company

    railway rail transport bogie railway rail transport bogie

    Flat Bed Material Transfer Trolley , Foundry Plant Battery Transfer Cart Small Table

    Our company

    railway rail transport bogie

    Our certificate
    railway rail transport bogierailroad trolleyrailway rail transport bogie


    Our service

    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
