    Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPJ-15T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope

    Shipyard cast steel wheel steel tube rail wagon on tracks with slope
    Working principle of shipyard rail wagon

    KPJ series rail wagon is powered by cable drum.The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the rail wagon. The rail wagon can realize full automatic operation by PLC system.


    Detailed description of the railway transport wagon


    This kind of shipyard rail wagon is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.


    The main parts of the box girder rail transporters includes Cable drum, driving system, box girder frame, electric appliance, etc.


    wide platform transport wagon Driving system of the rail wagon

    Frame Driving system Cable drum


    Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope


    Features of rail wagon on slope

    • Anti-explosion,Anti-high temperature;
    • Powered by cable;
    • With lifting holes, convenient to shipment;
    • Stable start, big starting power, long lifetime;
    • Simple structure, low cost ;
    • Running distance is limited;
    • Safe and convenient operation ;
    • High using frequency ;
    • Unlimited load capacity

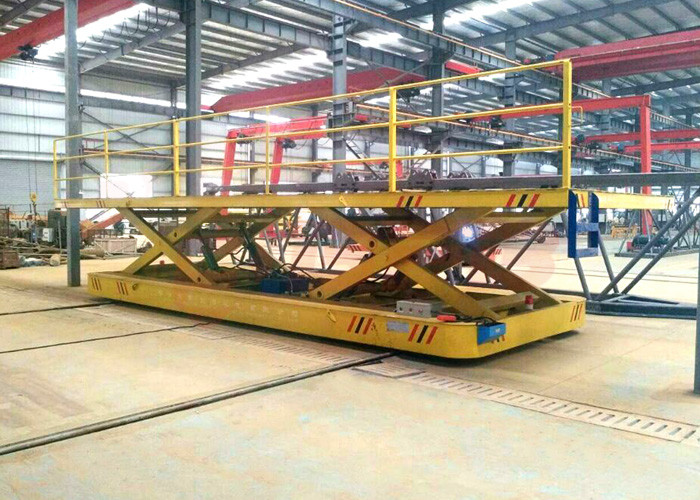

    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • High efficiency, low energy consumption;

    Technical parameters of box girder rail transporters

    Model
    KPJ-2TKPJ-10TKPJ-20TKPJ-30TKPJ-50TKPJ-63TKPJ-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of shipyard rail wagon on slope

    This kind of rail wagon is running on steel tracks or steel squre bars.It is commonly applied in shipyard, seaside to transferring ship parts or ship maintenance machine.



    For the rail wagon is running on tracks on slope, so the wagon is special design. It can meets the working environment and improve the working efficiency.

    shipyard apply rail wagon on tracks shipyard apply rail wagon on tracks


    shipyard apply rail wagon on tracks shipyard apply rail wagon on tracks


    The rail wagon is also applied in the following working station:

    • Carry loads along assembly lines;
    • transfer material from one work station to the next;
    • store and transport an entire shift worth of production.
    • They can even be used as a stable yet moveable machine base.

    Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope


    Delivery of rail wagon


    rail transporter

    Generally the rail wagon on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack
    Customer visit in our factory

    rail wagon rail wagon

    Customer feedback

    rail wagon

    Quality control of rail traverser

    shipyard apply rail wagon on tracks

    Other rail hwagon in BEFANBY company

    Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope shipyard apply rail wagon on tracks Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope Wagon On Tracks Motorized Industrial Carts , Rail Transfer Bogie With Slope



    Our company

    shipyard apply rail wagon on tracks

    Our certificate


    FAQ

    1. Q: What is the capacity of the shipyard apply rail wagon on tracks? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

    2. Q: What is the using candition?
    A: The environment temperature should be in level. such as production line

    3. Q: What is the working speed of the rail wagon?
    A: The standard running speed is 0-20m/min.
