    Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge

    Cross bay rail mounted hydraulic vehicle with large platform and rail gauge

    Detailed description of rail mounted hydraulic vehicle


    This kind of cross bay rail mounted hydraulic vehicle is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.


    The frame of cable drum powered rail mounted hydraulic vehicle is welded by high quality steel, with the assistant of running mechanism, gears, AC motor, cable drum, the cart will function under the control system.


    railroad trolley railroad trolley

    wide platform transport wagon Driving system of the rail wagon

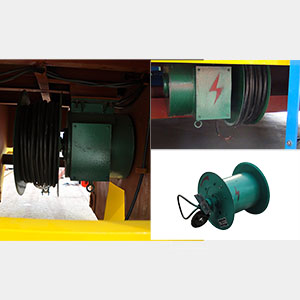

    Frame Driving system Cable drum


    Working principle of rail mounted hydraulic vehicle

    KPJ series rail mounted hydraulic vehicle is powered by cable drum. The power source 380V alternating-current is supplied to the traction motor by cable, which is collected and released by coiling device monted underneath the railroad trolley. The railroad trolley can realize full automatic operation by PLC system.


    Features of rail mounted hydraulic vehicle

    • Anti-explosion,Anti-high temperature;
    • Powered by cable;
    • With lifting holes, convenient to shipment;
    • Stable start, big starting power, long lifetime;
    • Simple structure, low cost ;
    • Running distance is limited;
    • Safe and convenient operation ;
    • High using frequency ;
    • Unlimited load capacity
    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • High efficiency, low energy consumption;

    Technical parameters of rail mounted hydraulic vehicle


    Model
    KPJ-2TKPJ-10TKPJ-20TKPJ-30TKPJ-50TKPJ-63TKPJ-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of rail mounted hydraulic vehicle

    This kind of rail mounted hydraulic vehicle is running on steel tracks or steel squre bars.It is commonly applied in shipyard, steel factory, warehouse to transfer heavy materials.


    Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge


    Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge

    Long platform railroad trolley with cable drum power. It has narrow rail gauge.

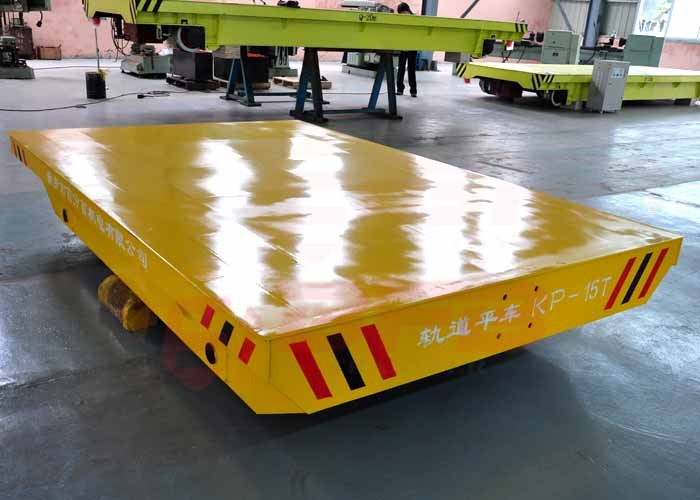

    Small dimension railroad trolley, it equipped with bumper, to protect the trolley be damaged.


    Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge railroad trolley.


    industrial railway trolley industrial railway trolley

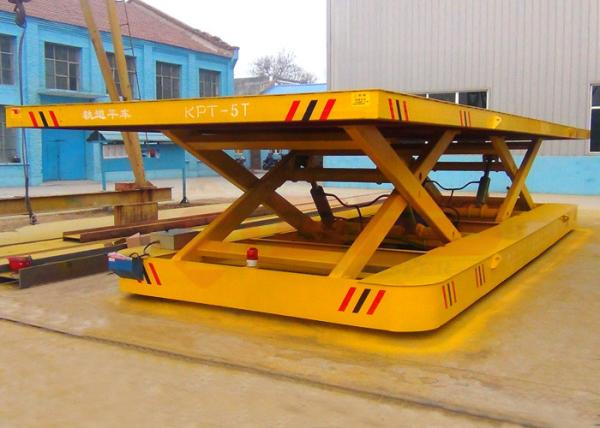

    There is electric rail mounted hydraulic vehicle of the railway trolley, It can lift up and down materials freely.


    The rail mounted hydraulic vehicle is also applied in the following working station:

    • Carry loads along assembly lines;
    • transfer material from one work station to the next;
    • store and transport an entire shift worth of production.
    • They can even be used as a stable yet moveable machine base.
    Delivery of railway trolley

    railway trolley. railway flat wagon


    industrial steel coil railway trolley large dimension railway trolley

    Generally the rail mounted hydraulic vehicle on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack

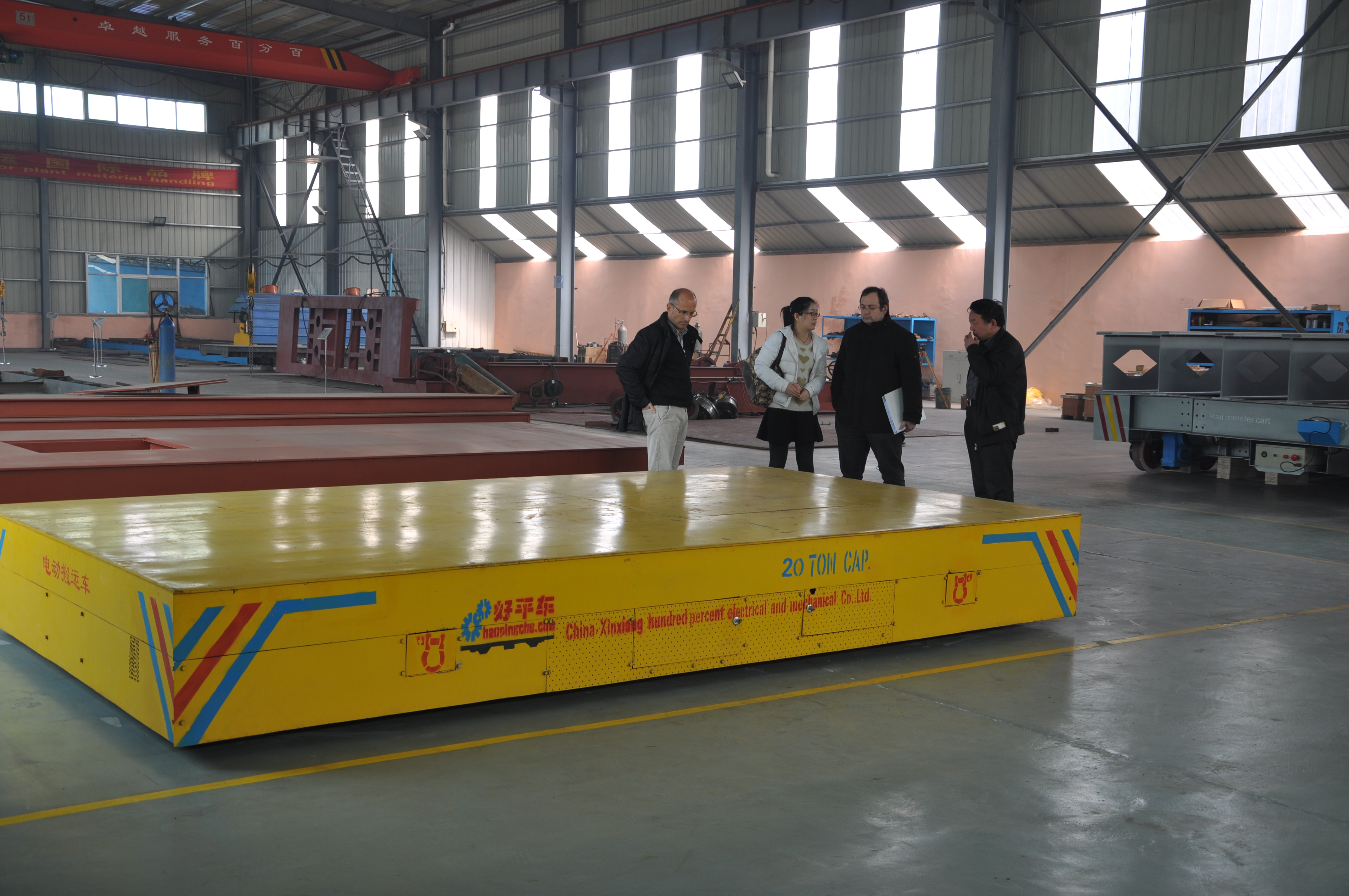

    Customer visit in our factory

    railway flat wagon

    Customer feedback

    railroad trolley

    Quality control of large dimension railroad trolley

    railroad trolley

    Other rail mounted hydraulic vehicle in BEFANBY company

    Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge

    Cross Bay Mounted Motorized Industrial Carts Hydraulic With Large Platform / Rail Gauge

    Our company

    railroad trolley

    Our certificate
    railroad trolleyrailroad trolley


    Our service

    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
