    Motorised electric industrial rail flat trolley for painting room

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPT-5T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

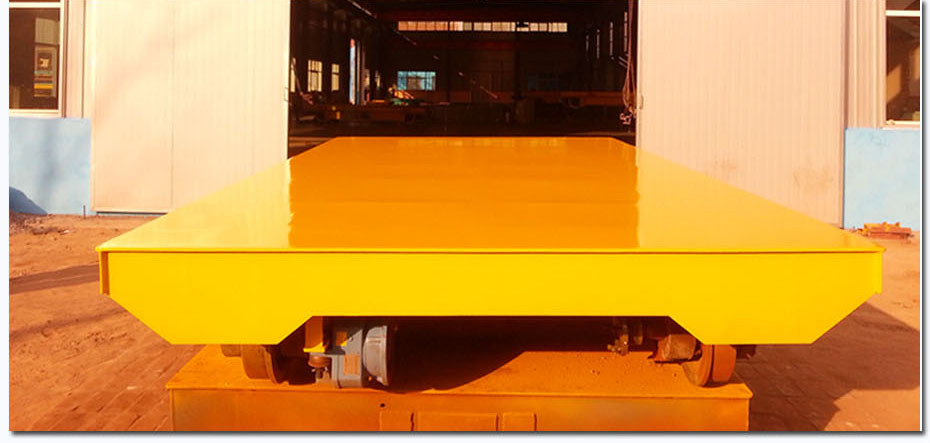

    Motorised electric industrial rail flat trolley for painting room

    Motorised electric industrial rail flat trolley for painting room

    Detailed description of low bed rail cart


    This kind of rail mounted is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.


    The frame of cable drum powered rail coil car is welded by high quality steel, with the assistant of running mechanism, gears, AC motor, cable drum, the cart will function under the control system.


    The main structure and frame of the flat trolley

    Motorised electric industrial rail flat trolley for painting room Motorised electric industrial rail flat trolley for painting room


    Main parts of the flat trolley in painting room


    steel structure rail cart for blasting room rail coil car with lifting device steel structure rail cart for blasting room

    Frame Driving system Cable drum


    industrial rail flat trolley for painting room


    Painting for the rail coil car, the colour can be yellow, blue, red, grey,etc.


    Working principle of industrial rail flat trolley for painting room

    KPT flat trolley is powered by towed cable The power source 380V alternating-current is supplied to the traction motor by cable.


    Features of industrial rail flat trolley for painting room

    • Anti-explosion,Anti-high temperature;
    • Powered by cable;
    • With lifting holes, convenient to shipment;
    • Stable start, big starting power, long lifetime;
    • Simple structure, low cost ;
    • Running distance is limited;
    • Safe and convenient operation ;
    • High using frequency ;
    • Unlimited load capacity
    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • High efficiency, low energy consumption;

    Technical parameters of industrial rail flat trolley for painting room


    Model
    KPT-2TKPT-10TKPT-20TKPT-30TKPT-50TKPT-63TKPT-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of industrial rail flat trolley for painting room

    This kind of flat trolley is running on steel tracks or steel squre bars.It is suitable to high using frequency working condition without crossing rails, but the running distance is no more than 200m.


    rail coil cart rail coil cart


    Motorised electric industrial rail flat trolley for painting room Motorised electric industrial rail flat trolley for painting room

    In order to the sand is fall down from the platform conveniently, the platform is designed as steel structure.It can protect the trolley be damaged.


    The steel structure flat trolley is also applied in the following working station:

    • Carry loads along assembly lines;
    • transfer material from one work station to the next;
    • store and transport an entire shift worth of production.
    • They can even be used as a stable yet moveable machine base.

    industrial rail flat trolley for painting room

    Delivery of low bed rail coil cart

    industrial rail flat trolley for painting room industrial rail flat trolley for painting room


    industrial rail flat trolley for painting room industrial rail flat trolley for painting room

    Generally the low bed rail coil cart on tracks is delivery through container, but if the platform is too large, it can be delivery through frame rack
    Customer visit in our factory

    low bed rail coil cart industrial rail flat trolley for painting room

    Customer feedback

    industrial rail flat trolley for painting room

    Quality control of rail coil car with lifting device

    low bed rail coil cart

    Other rail coil car with lifting device in BEFANBY company

    industrial rail flat trolley for painting room rail coil car with lifting device

    Motorised electric industrial rail flat trolley for painting room

    Our company

    industrial rail flat trolley for painting room

    Our certificate
    industrial rail flat trolley for painting roomrailroad trolleylow bed rail coil cart


    Our service

    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
