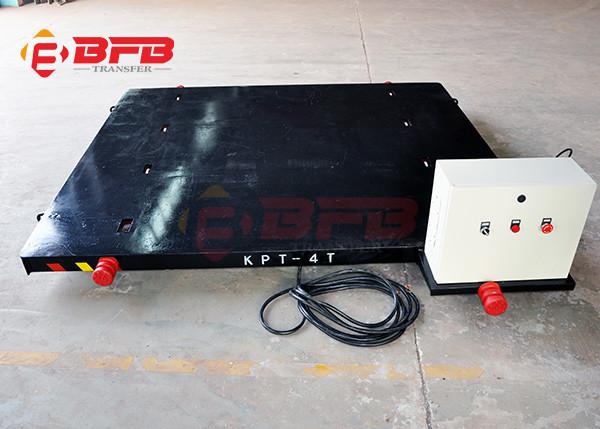

China manufacturer customized ac motor dragged cable power electric
transfer cart on rails
BEFANBY designed and manufactured the material transfer cart and
provide innovative handling solution with more than 16 years'
experience.the transfer cart can be used in industry plant, port,
workshop, production line and so on to transport ladle, coil, mold,
steel products, workpiece and so on.All the solution are designed
as per customers true demand.
The mobile cable powered transfer cart is a good choice if meeting
the following features:
1. The running distance of the transfer cart is less than 50m(The
drag chain can be equipped to prolong the cable life time)
2. The transfer cart is required to run on the rails
3. The whole working route needn't turn
4. The working frequency is higher
5. The transfer cart is required easy operation with low cost
6. The whole cart’s height is lower if required.
Remark: Dimensions,capacity, loading platform superstructure, speed and
many others features can be customized as per client request
despite running on indoor or outdoor, high temperature or explosive
environment.

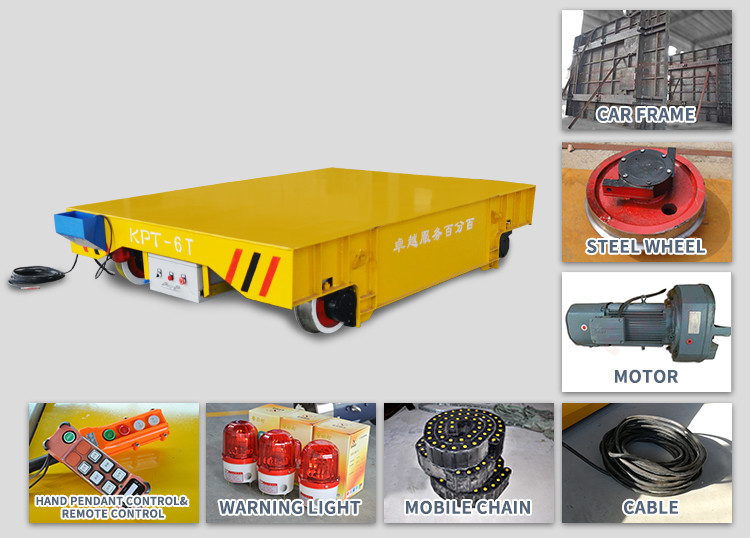

Character Showing of China manuafcturer ac motor dragged cable power electric transfer
cart
1. High level automation(self propelled/steerable)
2. The largest capacity can reach to 500 ton
3. Safe parts are installed in the transfer cart cart(warning
light, e-stop, buffer...)
4. Robust sturdy car frame
5. AC/DC electric engine , diesel engine or pneumatic engine
6. Excellent gear reducer and motor with high quality, assemblied
together perfectly
7. Remote control&hand pendant control make the opration more
convenient.
8. The speed can be adjusted
9. Easy operation and maintenance
10. Famous brand parts, guarantee the quality and prolong the using
lifetime
11. Low noise and do not pollute the environment
Working Principle of dragged cable power electric transfer cart on
rails
The kind of dragged cable rail transfer cart----it conducts AC380v directly
into the electrical control system of the transfer cart to start,
stop, go forward backforward and so on.The cart is powered by
dragged cable which is laid on the ground. the cable line is placed
between the two rails. The operation system is low voltage 36v
power.
Technique Parameter of 4 wheel electric transfer cart on rails
| Model | KPT-5t | KPT-16t | KPT-25t | KPT-30t | KPT-63t | KPT-80t | KPT150t |
| Rated Load | 5 | 16 | 25 | 30 | 63 | 80 | 150 |
| Table size | Length(L) | 3500 | 4000 | 4500 | 4500 | 5600 | 6000 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2600 | 3000 |
| Height(H) | 450 | 500 | 600 | 600 | 750 | 800 | 1200 |
| Wheel Base | 2500 | 2800 | 3200 | 3200 | 4300 | 4700 | 7000 |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 |
| Wheel Diameter | 300 | 350 | 400 | 400 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance | 50 | 50 | 50 | 50 | 75 | 75 | 75 |
| Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power | 1.5 | 2.2 | 3 | 4 | 7.5 | 7.5 | 15 |
| Max Wheel Load | 25.8 | 64.5 | 94.5 | 110.4 | 221.4 | 278.4 | 265.2 |
| Reference Weight | 3.3 | 5 | 6 | 6.3 | 10.3 | 12.1 | 26 |
| Recommended Rail Model | P18 | P24 | P38 | P38 | P50 | P50 | QU100 |
Processing of electric cable reel powered motorized transfer cart China factory
Attend the Trade Fair to Dubai
Our Company----BEFANBY
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and
after-sales service of electric handling bogie ,transfer carts as
one of the professional manufacturing company, which has a
modernized management team and excellent staff.And our prodcuts
gets CE, SASO,SGS,ISO certificate and other 8 national patent, our
products have been exported to more than 40 countries and
regions,such as Germany, Mexico, USA, Turkey, South Africa,
Singapore etc.
You can copy the following options and click here to select your
specific requirement for the transfer cart to send us. And then the
proper solution and price will be sent to you.
1. The load capacity of the transfer cart is ( ) ton.
2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).
3. The voltage is ( ) V, ( ) HZ, 3 phase.
4. The running time is ( ) hours per day.
5. The running distance is ( ) m per time.
6. The transfer cart runs on the rails or common floor?
7. Whether exist turning?
8. Whether has other special requirement?
