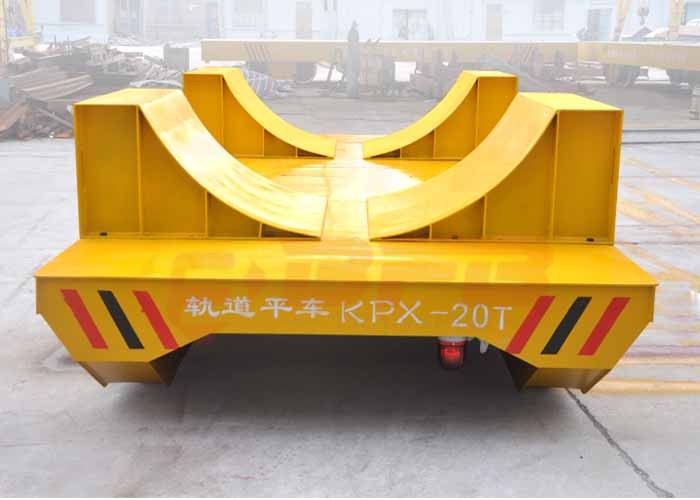

    Railway electric flat bed trailer for steel foil coils handling with V-frame

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-20t
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Supply Ability : 60 sets per month
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    Railway electric flat bed trailer for steel foil coils handling with V-frame


    Railway electric flat bed trailer for steel foil coils handling with V frame

    Railway electric flat bed trailer for steel foil coils handling with V-frame

    This kind of electric flat bed trailer for steel foil coils handling is running on steel rails or steel squre bars. It is commonly applied to transfer heavy materials between workshops, or from workshop to warehouse. It is used in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.

    The power supply of electric flat bed trailer for steel foil coils handling can be customized, we can recommend client a suitable type according to their working site, It can be storage battery power, cable drum power, Busbar power, conductor rail power, towed cable power etc.


    Advantages of electric flat bed trailer for steel foil coils handling


    • Flexible and environmental;
    • It can run on S shape rail, arc-shape rail and stright rails.
    • Has no limit on running distance;
    • Has no strict requirement on rail construction;
    • The hydraulic lifting device, V-frame, power roller can be installed on the platform;

    Railway electric flat bed trailer for steel foil coils handling with V-frame


    Photo show of electric flat bed trailer for steel foil coils handling


    Railway electric flat bed trailer for steel foil coils handling with V-frame  electric flat bed trailer for steel foil coils handling Railway electric flat bed trailer for steel foil coils handling with V-frame Railway electric flat bed trailer for steel foil coils handling with V-frame

    The battery power electric flat bed trailer for steel foil coils handling is applied in mold factory to transfer large dimension steel mold /steel structure. The rail transfer truck is remote control, it is convenient to operate.
    It is used to electric flat bed trailer for steel foil coils handling from the production line to painting room. With advantages of anti-explosion and anti-temperature, the cart can be running in paing room or blasting room for painting or rust removing.


    The parameter of electric flat bed trailer for steel coils handling
    Model
    KPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of electric flat bed trailer for steel foil coils handling

    Railway electric flat bed trailer for steel foil coils handling with V-frame Railway electric flat bed trailer for steel foil coils handling with V-frame

    Railway electric flat bed trailer for steel foil coils handling with V-frame Railway electric flat bed trailer for steel foil coils handling with V-frame
    Assembly line: Due to advantage of without cable, it is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
    Metallurgy industry: With the functions of steady traveling, stepless speed regulation, the cart is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the cart should be designed with heat exposure proof device, expecially to the battery, motor, reducer and electric appliance.
    Ship industry: Due to the large load capacity, the electric flat bed is applied in ship industry to transfer workpieces, maintenance tools(propeller, motor etc.). The cart is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.
    BEFANBY Company

    Railway electric flat bed trailer for steel foil coils handling with V-frameRailway electric flat bed trailer for steel foil coils handling with V-frame

    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand

    Cutomer from worldwide


    Railway electric flat bed trailer for steel foil coils handling with V-frame

    Parts of BEFANBY Certificates


    Railway electric flat bed trailer for steel foil coils handling with V-frame

    Delivery of rail transfer truck


    Railway electric flat bed trailer for steel foil coils handling with V-frame

    Generally the battery motorised transfer vehicle is delivery through container. If the dimension of the transport is too large,it can be break up or delivery through flat rack.

    BEFANBY advantages
    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
