    Industrial heavy load steel coil rail transport trolley for aluminum factory apply

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-60T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    Industrial heavy load steel coil rail transport trolley for aluminum factory apply

    Industrial heavy load steel coil rail transport trolley for aluminum factory apply

    Description of coil rail transport trolley


    The frame of rail transport trolley is welded by high quality steel, with the assistant of running mechanism , gears, DC motor, current collector, the cart will function under the control system. The transfer cart is remote control, or PLC control.


    The main parts of the rail transport trolley includes motor, reducer, electric appliance and wheels. Due to more parts, compared with other carts, it has large size. But it can’t influence its working property.


    Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply

    Frame Driving system Steel wheel

    Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply

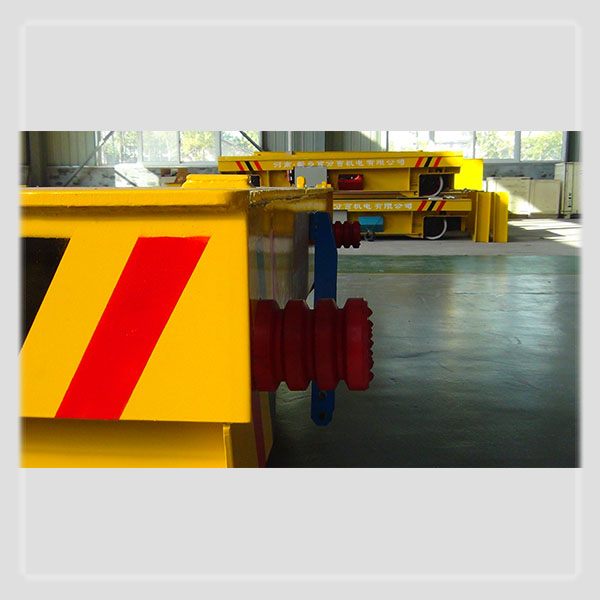

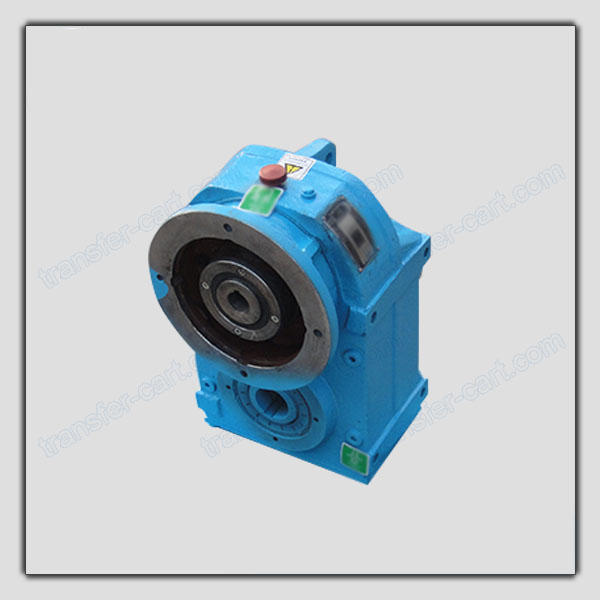

    Reducer Light & sound alarm Bumper

    Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply

    Working principle of rail transport trolley
    KPX rail transport trolley is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.

    Functions of rail transport trolley

    • Go forward and backward,
    • Turn left and right,
    • Adjust speed button,
    • Indicator light,
    • Electric indicator light and other control buttons.

    Advantages of rail transport trolley

    • Box girder structure
    • Freely and flexibility
    • can be applied high using frequency condition
    • can be used in high-temperature environment
    • can be used in explosion-proof environment

    Industrial heavy load steel coil rail transport trolley for aluminum factory apply


    The battery power rail transport vehicle is applied in aluminum factory to transfer coils inter-bay.


    Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply


    The rail transporter trolley is applied in strainless factory to transfer heavy coils.


    Industrial heavy load steel coil rail transport trolley for aluminum factory apply

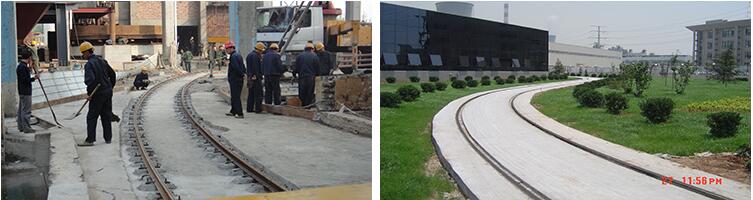

    Besides stright rails, this kind of rail transport trolley can also be applied on turning rails, arc-shaped rails.


    Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply

    The rail transport trolley is applied in steel factory to transfer steel ladle on wide gauge rails.


    Technical parameters of rail transport trolley

    Model
    KPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100

    Delivery of rail transport trolley

    Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply

    Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply

    Generally the rail transport trolley is delivery through container, but if the platform is too large, it can be delivery through frame rack
    Customer visit in our factory

    Industrial heavy load steel coil rail transport trolley for aluminum factory apply ladle car

    Quality control of rail transport trolley

    rail transport trailer

    Other product of BEFANBY company


    Industrial heavy load steel coil rail transport trolley for aluminum factory apply Industrial heavy load steel coil rail transport trolley for aluminum factory apply

    Our company

    rail car

    Our certificate
    Industrial heavy load steel coil rail transport trolley for aluminum factory applyIndustrial heavy load steel coil rail transport trolley for aluminum factory applyIndustrial heavy load steel coil rail transport trolley for aluminum factory apply

    FAQ

    1. Q: What is the capacity of the rail transport trolley? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

    2. Q: What is the using candition?
    A: The environment temperature should be in level. such as production line

    3. Q: What is the working speed of the rail transport trolley?
    A: The standard running speed is 0-20m/min.
