    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPT-20T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    Supply Ability : 800 sets one year
    • Product Details
    • Company Profile

    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting


    25t electric on-rail material handling equipment for steel coils transporting


    This kind of material handling equipment is running on steel rails or steel squre bars. It is commonly applied to transfer heavy materials between workshops, or from workshop to warehouse. It is used in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store. The power supply of the material handling equipment can be customized, we can recommend client a suitable type according to their working site, It can be storage battery power, cable drum power, Busbar power, conductor rail power, towed cable power etc.


    Advantages of steel material handling equipment

    • Flexiability and environmental;
    • It can run on S shape rail, arc-shape rail and stright rails.
    • Has no limit on running distance;
    • Has no strict requirement on rail construction;
    • The hydraulic lifting device, V-frame, power roller can be installed on the platform;
    Photo show of material handling equipment

    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting

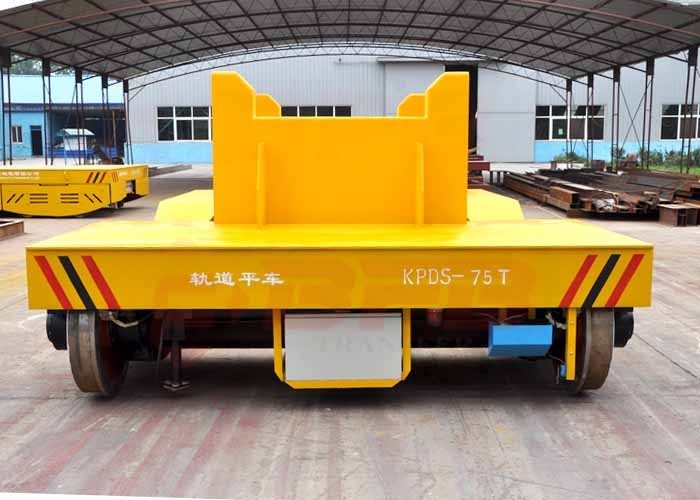

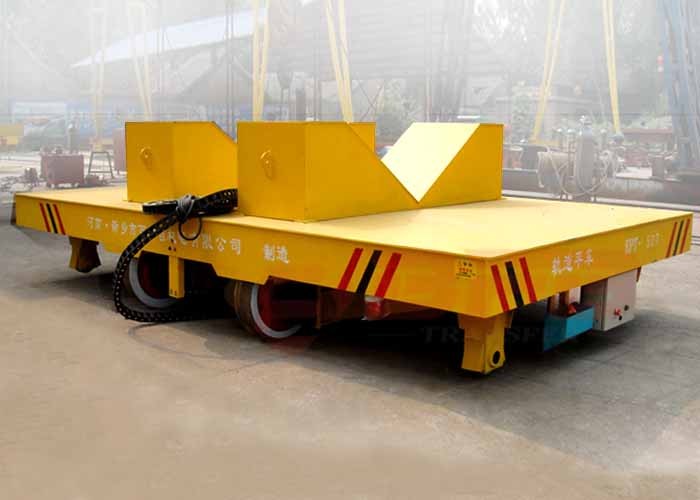

    The V-frame device can be added on the platform in order to protect the material falling down from the truck.

    The mobile cable power material transfer truck is applied in mold factory to transfer large dimension steel mold /steel structure. The material handling equipment is remote control, it is convenient to operate.

    The material handling equipment is used to transfer steel mold from the production line to painting room. With advantages of anti-explosion and anti-temperature, the cart can be running in paing room or blasting room for painting or rust removing.

    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting


    The large capacity steel coil material handling equipment is applied to transfer steel coils.


    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting

    These kind of material handling equipment is applied to transfer heavy steel or aluminum ladle. In order to inviod the ladle is damaged from the high temperatuyre, the firebrick can be laid on the platform, It can protect the driving system, such as motor, reducer damaged by high-temperature..
    The parameter of material handling equipment
    ModelKPT-2tKPT-5tKPT-10tKPT-16tKPT-20tKPT-25tKPT-30tKPT-40tKPT-50tKPT-63tKPT-80tKPT-100tKPT-150t
    Rated Load25101620253040506380100150
    Table sizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Height(H)4504505005005506006006506507508008501200
    Wheel Base1200250026002800280032003200380042004300470049007000
    Rail Inner Gauage1200143514351435143514351435143514351435180020002000
    Wheel Diameter270300300350350400400500500600600600600
    Wheel Quantity4444444444448
    Ground Clearance50505050505050505075757575
    Running Speed25252520202020202020202018
    Motor Power0.81.51.52.22.5345.55.57.57.51115
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Weight2.33.33.855.566.37.27.610.312.113.926
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100

    QU100

    Application of material handling equipment

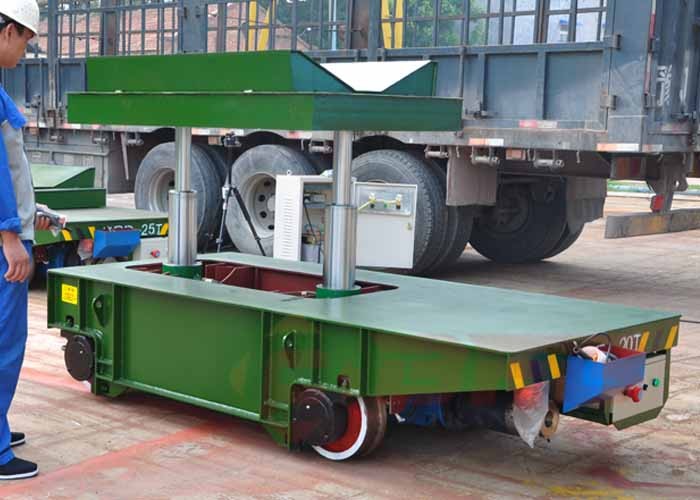

    The hydraulic lifting device can be added on the material handling equipment.

    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting

    Assembly line: Due to advantage of without cable, it is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
    Metallurgy industry: With the functions of steady traveling, stepless speed regulation, the cart is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the cart should be designed with heat exposure proof device, expecially to the battery, motor, reducer and electric appliance.
    Ship industry: Due to the large load capacity, the cart is applied in ship industry to transfer workpieces, maintenance tools(propeller, motor etc.). The cart is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.
    BEFANBY Company

    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting
    Manufacturing
    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting

    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand

    Customer from worldwide


    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting

    Parts of BEFANBY Certificates


    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting

    Delivery of material handling equipment


    25t Electric On-Rail Material Handling Equipment For Steel Coils Transporting


    Generally the material handling equipment is delivery through container. If the dimension of the transport is too large,

    it can be break up or delivery through flat rack.

    BEFANBY advantages
    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.
