Heat Resistance Rail Transfer Trolley , Heavy Steel Motorized Rail
Transfer Cart
Heat Resistance Rail Transfer Trolley , Heavy Steel Motorized Rail
Transfer Cart provide dependable, efficient transfer of loads for a diverse array
of applications ranging from aluminum anodizing, paper roll
storage, general manufacturing and can be customized to suit. This
rail guided transfer cart can reduce labor costs, optimize
manufacturing processes and reduce capital costs associated with
forklift systems. The end result is increased production and
throughput.
roll storage steering mechanism trolleys on wheels aluminum
anodizing roll storage steering mechanism trolleys on wheels
aluminum anodizing
2.Product Advantages---Heat Resistance Rail Transfer Trolley ,
Heavy Steel Motorized Rail Transfer Cart
1) The Heat Resistance Rail Transfer Trolley , Heavy Steel
Motorized Rail Transfer Cart doesn't need have any steering
function since they equipped with steel wheels and move just on
railways, which can make the transfer cart keep straight running.
roll storage steering mechanism trolleys on wheels aluminum
anodizing
2) The rail transfer trolley represent the superior design for
production cycles which are regular or frequent both time-wise and
route-wise.
roll storage steering mechanism trolleys on wheels aluminum
anodizing
3) As they have steel wheels and run on fixed steel rails they are
suited for very high loading capacities owing to the very low
friction between steel and steel.
roll storage steering mechanism trolleys on wheels aluminum
anodizing
4) For all the reason, the cost of the rail guided transfer cart -
referring to same dimensions and same loading capacity - is lower
than the motorized battery trolleys on wheels which needed to equip
with steering mechanism and greater powers.
roll storage steering mechanism trolleys on wheels aluminum
anodizing
5)BEFANBY company, with its 16 years experience in this kind of
rail trolley, offers handling with state-of and the-art
technologies, on account of continuous design improvement by
insistingon most up-to-date electronic innovations.

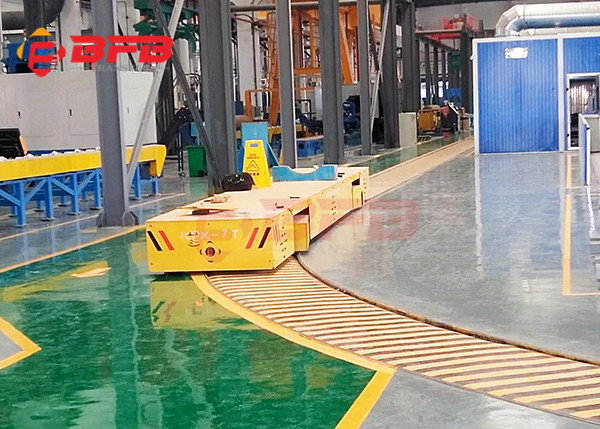

3. Application Showing of Heat Resistance Rail Transfer Trolley , Heavy Steel Motorized Rail
Transfer Cart
The Heat Resistance Rail Transfer Trolley , Heavy Steel Motorized
Rail Transfer Cart of BEFANBY allow movement charges at ground
level in all types of industries and applications, such as
warehouse, within or without factory, bay to bay, airport, sea
port, manufacturing workshop, production line, and son on.
roll storage steering mechanism trolleys on wheels aluminum
anodizing
Regardless of the complexity of your transportation requirements
and the use of the environment, our engineers with 16 designing
experience can provide you with a viable solution. Tell us your
requirements, feedback to you suitable project economically and
reasonably.
4. Technique Parameter of Heat Resistance Rail Transfer Trolley , Heavy Steel Motorized Rail
Transfer Cart
| Model | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t |
| Rated Load | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 |
| Table size | Length(L) | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 |
| Wheel Base | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 |
| Wheel Diameter | 300 | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 |
| Running Speed | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power | 1.2 | 2 | 3 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 |
| Battery Capacity | 180 | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 |
| Battery Voltage | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Max Wheel Load | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 |
| Reference Weight | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
5. Our Company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a
collection of research, design, manufacture, installation and
after-sales service of electric handling bogie ,transfer carts as
one of the professional manufacturing company, which has a
modernized management team and excellent staff.And our prodcuts
gets CE, SASO,SGS,ISO certificate and other 8 national patent, our
products have been exported to more than 60 countries and
regions,such as Germany, Mexico, USA, Turkey, South Africa,
Singapore etc.
6. Production Supply Scope
| Product Name | Model No. | Power Supply Mode | Load Capacity | Usage |
| Rail Transfer Cart | KPD | Conductor Rail | Load range 1-500ton, can be customized per client demand | Ordinary goods,such as steel plate, workpiece,equipment etc special
goods,such as coil. column,ladle etc |
| Battery Powered Transfer Car | KPX | Battery |
| Motorized Transfer Trolley | KPJ | Cable Drum |
| Busbar Powered Handling Cart | KPC | Busbar |
| Towed Rail Trailer | KP | Tractor | 1-500t |
| Steerable Towed Car | BWT | Tractor | Load range 1-500t |
| Trackless Handling Machine | BWP | Battery |
7. Q&A
1)Will A Transfer Cart Be A Good Solution?
A good question to ask since there are many material handling
solutions on the market! Which one is the right choice? For
starters, transfer carts are moveable platforms used for the
horizontal movement of materials, assemblies, and other items.
Consideration must be given to the weight of the load and the
travel requirements for the application.
2)What Are The Advantages of Using a Transfer Cart?
For smaller loads, manual carts can be dedicated to specific work
place activities such as shuttling materials. This often makes the
carts more available for use. Transfer carts are more accommodating
for moving long loads through restrictive passage ways or doorways.
For heavier loads transfer carts are an excellent affordable choice
for their ability to handle heavy loads. Transfer carts are compact
in design and work well in areas with limited floor area. Another
advantage over lift trucks is how the cart deck can be customized
to suit specific loads.
