    20t flat deck trailerfor container transportation on rails

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-60T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    20t flat deck trailerfor container transportation on rails

    20t flat deck trailer for container transportation on rails
    Working principle of 20t flat deck trailer

    The flat deck trailer is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.


    rail mounted car moving equipment


    Structure of 20t flat deck trailer


    20t flat deck trailerfor container transportation on rails rail mounted car moving equipment


    Detailed description of 20t flat deck trailer


    This kind of flat deck trailer is running on steel tracks or steel squre bars. With different styles and standard capacities up to 300 tons, we have the solution you need and each style can be designed for your specific application.


    The main parts of flat deck ttrailer on rail includes storage battery, driving system, box girder frame, electric appliance, etc.


    industrial worskhop steel structure handling steel pipe transfer large container transport wagon industrial worskhop steel structure handling steel pipe transfer

    Frame Storage battery Charger

    industrial worskhop steel structure handling steel pipe transfer industrial worskhop steel structure handling steel pipe transfer industrial worskhop steel structure handling steel pipe transfer

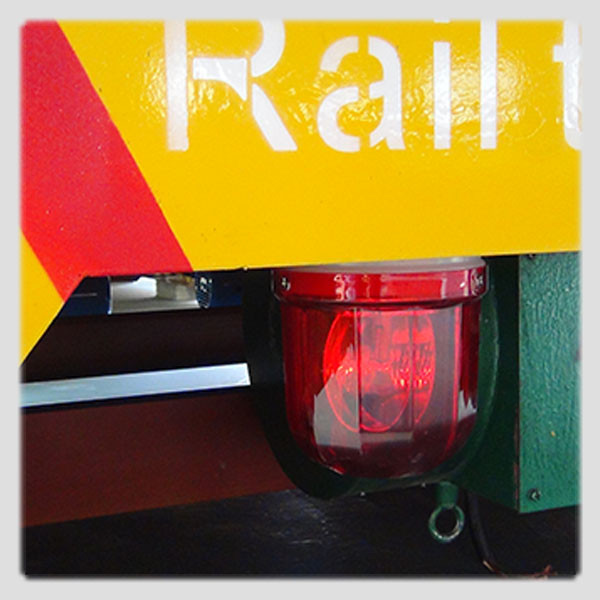

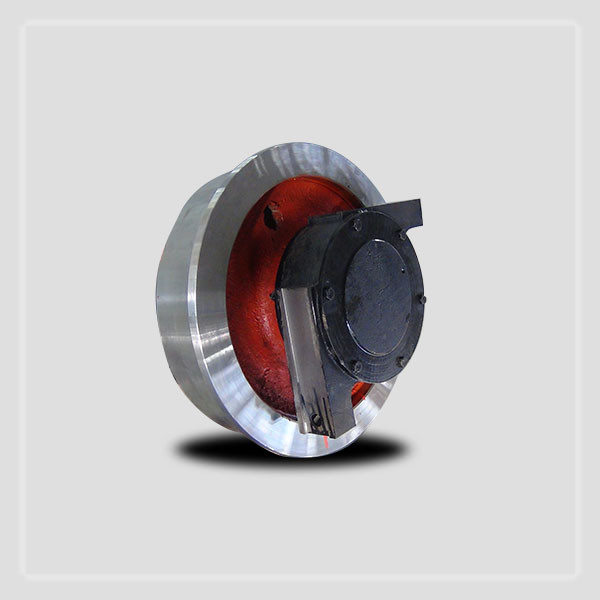

    Driving system Casting wheel Alarm


    Features of 20t flat deck trailer

    • Box girder structure
    • Without cable, flexibility & durable
    • Can run on arc-shape rails, S-shape rails, crossing rails
    • can be applied high using frequency condition
    • can be used in high-temperature environment
    • can be used in explosion-proof environment
    • Reasonable design, reliable operation;
    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • High efficiency, low energy consumption;

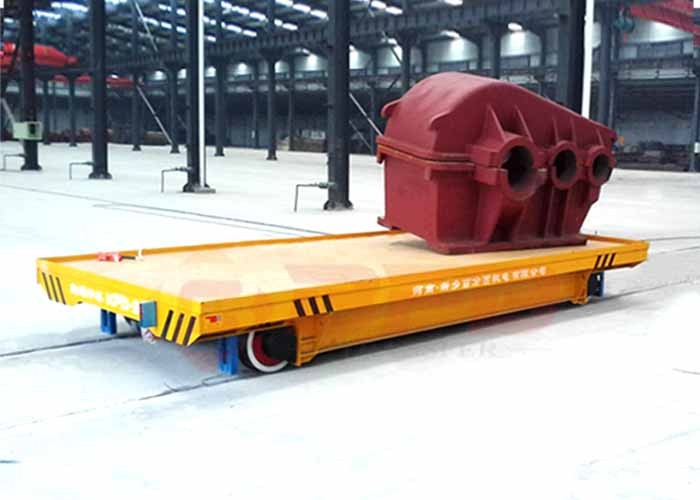

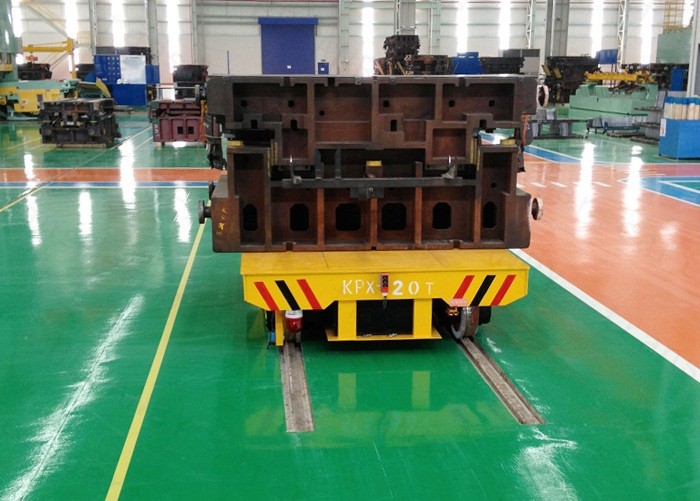

    Photoes of 20t flat deck trailer


    OEM track transport car OEM track transport car

    OEM track transport car OEM track transport car

    OEM track transport car OEM track transport car


    The 6 sets 20t flat deck trailer is exported to Romania client, they are applied in steel plant to transfer heavy load steel structure.


    Technical parameters of 20t flat deck trailer


    Model
    KPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100
    Application of 20t flat deck trailer

    This kind of flat deck track trailer is running on steel tracks or steel squre bars.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.


    AGV rail mounted car moving equipment AGV rail mounted car moving equipment


    The flat deck trailer also applied in the following working station:

    • Carry loads along assembly lines;
    • transfer material from one work station to the next;
    • store and transport an entire shift worth of production;
    • They can even be used as a stable yet moveable machine base.

    steel pipe transfer

    The 20t flat deck trailer can be applied on turning rails, arc-shape rails.
    Delivery of 20t flat deck trailer

    AGV rail mounted car moving equipment AGV rail mounted car moving equipment

    AGV rail mounted car moving equipment AGV rail mounted car moving equipment

    Generally the flat deck trailer is delivery through container, but if the platform is too large, it can be delivery through frame rack.
    Customer visit in our factory

    AGV rail mounted car moving equipment

    Quality control of 20t flat deck trailer

    AGV rail mounted car moving equipment

    Other AGV car moving equuipment in BEFANBY company

    AGV rail mounted car moving equipment 20t flat deck trailerfor container transportation on rails

    20t flat deck trailerfor container transportation on rails


    Our company

    AGV rail mounted car moving equipment

    Our certificate
    AGV rail mounted car moving equipmentAGV rail mounted car moving equipmentAGV rail mounted car moving equipment

    FAQ

    1. Q: What is the capacity of the flat deck track transport car? A: The capacity can be customized, the max. Load capacity can reach to 300 tons.

    2. Q: What is the using candition?
    A: The environment temperature should be in level. such as production line

    3. Q: What is the working speed of the flat deck track transport car?
    A: The standard running speed is 0-20m/min.
