    25t mold handling electric trackless car on concrete ground battery power

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-10T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    • Product Details
    • Company Profile

    25t mold handling electric trackless car on concrete ground battery power

    25t mold handling electric trackless car on concrete ground

    The BWP Trackless transfer car is powered by battery. It can spin around 360 degrees. All the transfer cars are equipped with warning alarm, safety inspection device and Dead-man control. It can also be equipped with automatic intelligent charger and PLC control system, so that it can realize full-automatic control.It is commonly applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer rounded material, from producing line to store.


    Advantages of steel electric trackless car

    Flexiability and environmental;

    Has no limit on running distance;

    Has no strict requirement on rail construction;

    Can run on steel plate, cement floor, concrete floor

    The hydraulic lifting device, V-frame, power roller can be installed on the platform;

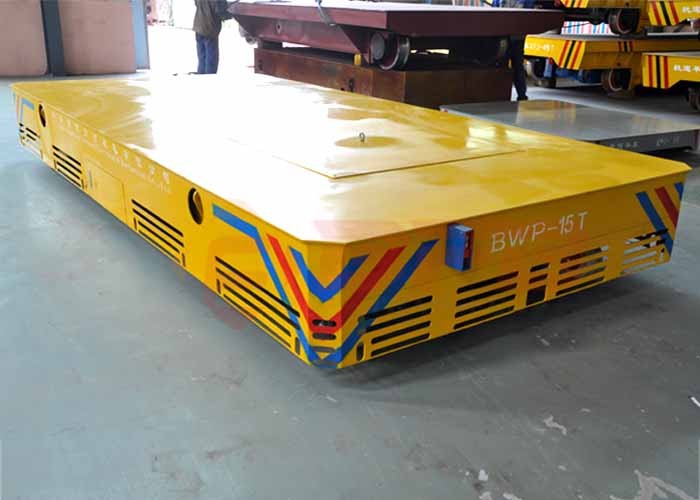

    Photo show of electric trackless car

    25t mold handling electric trackless car on concrete ground battery power25t mold handling electric trackless car on concrete ground battery power25t mold handling electric trackless car on concrete ground battery power25t mold handling electric trackless car on concrete ground battery power

    The V-frame device can be added on the platformin order to protect the material falling down from the truck.

    Advantages of trackless car on concrete floor

    Control electrical appliance with automatic stop function when meeting man or obstacle
    Control electrical appliance is made of frequency converter and contactor
    Control appliance operation is wired push button pendant
    Control appliance operation is remote controller
    The wireless remote control features:long distance of remote control and long service life
    The feature of control electrical appliance:low barrier rate

    The electric trackless car is used to transfer steel mold from the production line to painting room. With advantages of anti-explosion and anti-temperature, the cart can be running in paing room or blasting room for painting or rust removing.
    Main parts
    25t mold handling electric trackless car on concrete ground battery power

    The trackless car is applied to transfer steel mold in the workshop.

    25t mold handling electric trackless car on concrete ground battery power

    This kind of electric trackless car is convenient to operate. It can be pendant control or remote control.

    25t mold handling electric trackless car on concrete ground battery power

    These kind of electric trackless car is also applied to transfer heavy box or container in shipyard or harbor.
    The parameter of electric trackless car

    Model
    BWP-5TBWP-10TBWP-15TBWP-20TBWP-30TBWP-40TBWP-50T
    Rated load (T)5101520304050
    Table sizelength(L)3000360040004500500055006000
    Width(W)2000200022002200220023002300
    Height(H)450530600600650700700
    Wheel Base (mm)2500310034003900430048005200
    Tread(mm)1500150017001700170018001800
    Wheel Diameter(mm)Φ300Φ350Φ350Φ400Φ400Φ500Φ500
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-150-150-150-150-150-120-12
    Motor Power (Kw)3.5567101215
    Battery maintenance
    Maintenance-free
    Turning Radius(mm)2501310134013901430148015200
    Brake principle
    Electric Magnetic Force
    Ground Balancing
    Automatic Mechanical Balancing
    Turning mode
    Continuous Turning while Traveling
    Control Mode for Turning
    Electrical Control Button
    Max Wheel Load (t)2.84.64.35.67.71012
    Reference Weight (t)4.35.36.67.98.81010.5
    Thickness of the Steel Plate (mm)8101214141616
    Wheel Material
    ZG55+Hydropur
    Charger Function
    Automatic Intelligent Charging
    Color
    Yellow plus Warning Sign
    Control Mode for Turning
    3-0.3m, Automatic Stop when Obstacles Detected
    Alarming Device
    Sound and Light Alarm
    Other Functions
    Turning Light, Night Light, and Power Display
    Application of electric trackless car

    25t mold handling electric trackless car on concrete ground battery power

    Assembly line: Due to advantage of without cable, it is mainly applied in assembly line, can realize the straight rail, S shape rail, U shape rail, C shape rail, Arc-shaped rail, 90 degree turn rail, crossing rail etc.
    Metallurgy industry: With the functions of steady traveling, stepless speed regulation, the cart is commonly applied to transfer steel ladle, aluminum ladle, lead ladle, steel slag etc. Generally the outer surface temperature of the ladle is 200-300 degree , due to the high temperature, the cart should be designed with heat exposure proof device, expecially to the battery, motor, reducer and electric appliance.
    Ship industry: Due to the large load capacity, the cart is applied in ship industry to transfer workpieces, maintenance tools(propeller, motor etc.). The cart is also applied in dock or harbor to transfer cargoes and containers. If needed, the hydraulic lifting device , weighing device and automatic device can be added.
    BEFANBY Company

    25t mold handling electric trackless car on concrete ground battery powerManufacturing25t mold handling electric trackless car on concrete ground battery power

    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a professional and experienced manufacturer,exporter of material transfer car in China, meanwhile we also design material handling solution according to client's demand

    Cutomer from worldwide


    25t mold handling electric trackless car on concrete ground battery power

    Parts of BEFANBY Certificates


    25t mold handling electric trackless car on concrete ground battery power

    Delivery of electric trackless car


    25t mold handling electric trackless car on concrete ground battery power
    Generally the electric trackless car is delivery through container. If the dimension of the transport is too large,
    it can be break up or delivery through flat rack.

    BEFANBY advantages
    • Our commitment: The load bearing safety factor of the trolley is no less than 120%.
    • Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
    • 16 hours engineering service and 24 hours internet service for our customers.
    • During the warranty period, if our products can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
    • Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

    25t mold handling electric trackless car on concrete ground battery power
