    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-30T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 40-50 days as usual delivery,30-40 days for urgent delivery
    • Product Details
    • Company Profile

    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

    Paper making factory rail transport carriage with V-frame and hydraulic lifting device
    Working principle of rail transport carriage with V-frame

    The rail transport carriage is powered by battery. The battery supply power to the DC motor, which is installed inside of cart body. Through the order of start, stop,forward,back,speed governing,etc, electrical control system command the order to DC motor to drive transfer cart working.


    Features of paper making rail transport carriage
    • Simple structure, low cost;
    • Has no strict on rail construction;
    • Suitable to working area with short running distance;
    • Suitable to working area with high using frequency;
    • Has no limit on running distance;
    • Can be applied in high-temperature environment;
    • Box girder structure;
    • Reasonable design, reliable operation;

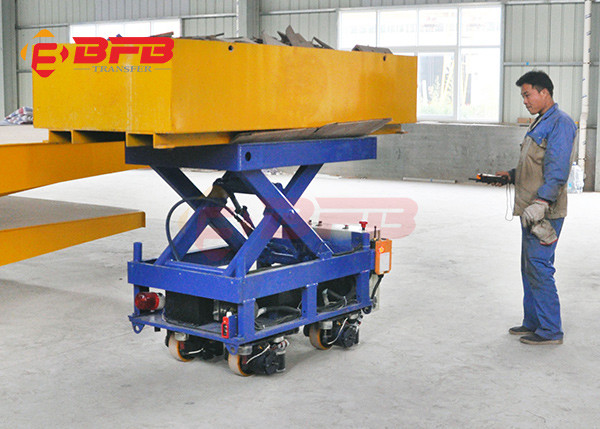

    • Can be add hydraulic lifting device;
    • Can be add dumping device;
    • High efficiency, low energy consumption;

    Detailed description of paper making factory rail transport carriage


    This kind of rail transport carriage is running on steel tracks or steel squre bars. For special handling requirement, additional rails can be installed on the platform of the rail traverser, then another rail cart can run on the platform. It can solve the transferring problem with crossing rail or 90 degree rails.


    Production flow of rail transport carriage


    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device


    Photos of rail transport carriage


    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device


    Main parts of rail transport carriage


    The main parts of rail transport carriage includes frame, cast wheel, motor and reducer, electric control box, and other safety device.


    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting DeviceV Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting DeviceV Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

    Steel frame Casting wheel Light & sound alarm

    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting DeviceV Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting DeviceV Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

    Driving mechanism Reducer Bumper


    Technical parameters of rail transport carriage

    ModelKPX-2tKPX-5tKPX-10tKPX-16tKPX-20tKPX-25tKPX-30tKPX-40tKPX-50tKPX-63tKPX-80tKPX-100tKPX-150t
    Rated Load25101620253040506380100150
    Table sizeLength(L)20003500360040004000450045005000550056006000650010000
    Width(W)1500200020002000220022002200250025002500260028003000
    Height(H)4505005005505506006006506507008009001200
    Wheel Base1200250026002800280032003200380042004300470049007000
    Rail Inner Gauage1200143514351435143514351435143514351435180020002000
    Wheel Diameter270300300350350400400500500600600600600
    Wheel Quantity4444444444448
    Ground Clearance50505050505050505075757575
    Running Speed25252520202020202020202018
    Motor Power11.222.233.5456.38101515
    Battery Capacity180180160180180250250300330400400440600
    Battery Voltage24364848484848484848727272
    Running Time When Full Load4.325.44.84.3443.53.63.333.63.22.9
    Max Wheel Load14.425.842.664.577.794.5110.4142.8174221.4278.4343.8265.2
    Reference Weight2.83.64.25.55.96.56.87.6810.812.814.626.8
    Recommended Rail ModelP15P18P18P24P24P38P38P43P43P50P50QU100QU100

    Application of paper making factory rail transport carriage

    This kind of rail transport carriage is applied in paper industry to transfer paper coils from production to warehouse. It is running on steel tracks or steel squre bars.It is also applied in steel plant, aluminum factory, plastic pipes factory, etc to transfer cylinder materials from producing line to store.


    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device


    In order to protect security, a V-frame is added on the platform.


    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

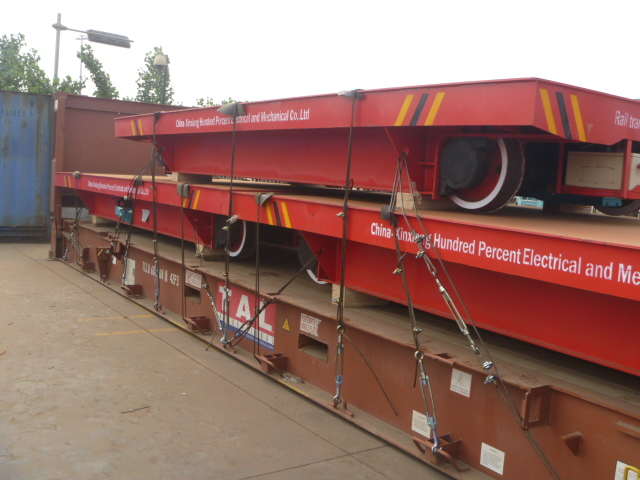

    Delivery of rail transport carriage

    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

    Generally the rail transport carriage is delivery through container, but if the platform is too large, it can be delivery through frame rack
    Customer visit in our factory

    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device


    Customer feedback

    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

    Quality control of rail transfer table

    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

    Other rail handling car in BEFANBY company

    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device



    Our company

    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

    Our certificate


    V Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting DeviceV Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting DeviceV Frame Battery Operated Cart , Pallet Transfer Carts With Hydraulic Lifting Device

    FAQ

    1. Q: What is the capacity of rail transport carriage?
    2. A: The capacity can be customized, the max. Load capacity can reach to 500 tons.

    2. Q: What is the using candition?
    A: The environment temperature should be in level. such as production line

    3. Q: What is the working speed of the ladle car?
    A: The standard running speed is 0-20m/min.
