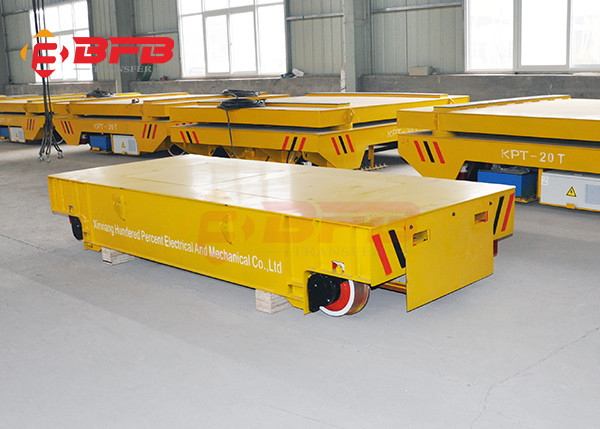

Unlimited Distance Steel Rail Transfer Cart , Research Battery
Powered Heavy Duty Cart
1. Introduction of the heavy duty cart
This Unlimited Distance Steel Rail Transfer Cart , Research Battery
Powered Heavy Duty Cart is commonly used in shipyards, factories
and factories, and some production lines. The platform rail cart
receives power from the battery. The battery is installed in the
cart. Wheeled transhipment flats are developed to significantly
reduce the material handling requirements of cranes and forklifts
while providing fast, safe and smooth material and/or product
movement through manufacturing facilities. It is commonly used to
transport heavy and very large loads such as molds, coils,
equipment and other heavy materials. Our battery-powered transfer
flatbeds are specifically designed to meet the needs of our
customers.

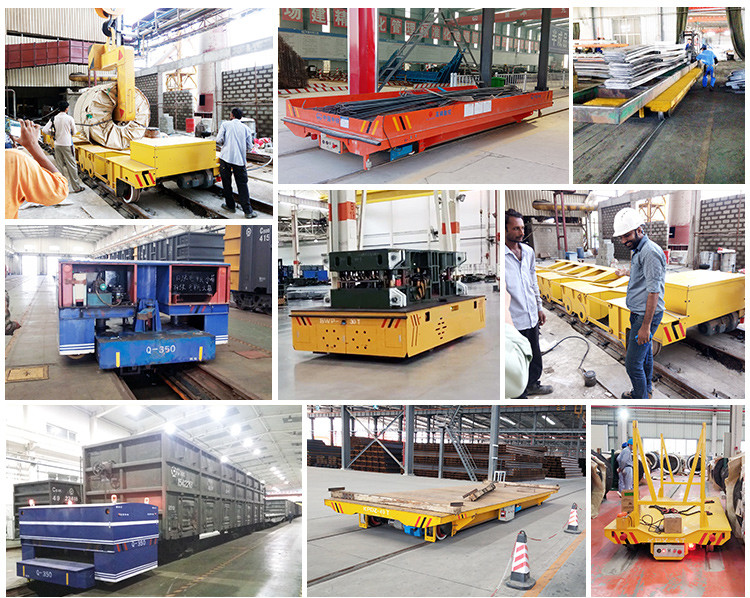

2. Application Showing of the Unlimited Distance Steel Rail Transfer Cart , Research Battery
Powered Heavy Duty Cart
The Unlimited Distance Steel Rail Transfer Cart , Research Battery
Powered Heavy Duty Cart is used in our industrial equipment are
often used to transfer heavy-duty horizontal shifts, which have
been widely used to:
Firstly, Production assembly line: transfer of machine parts or raw
materials;
Secondly, Material transportation: transportation materials between
the warehouse and the production line;
Thirdly, Stock transfer: delivery material or stock for logistics
or warehouse
Fourthly, Coil pipe, and roller handling: steel coil transfer for
the workshop
Fifthly, Ship assembly and maintenance: transfer of marine
components for shipbuilding or maintenance
3. Component Showing of Unlimited Distance Steel Rail Transfer Cart
, Research Battery Powered Heavy Duty Cart
The Unlimited Distance Steel Rail Transfer Cart , Research Battery
Powered Heavy Duty Cart is made of cart frame, rail wheels, motor,
gear reducer, maintenance free battery, intelligent charger, remote
control, operaton handle, electric appliance box, sound and light
alarm, e- stop, dead man stop.
Whats' more, we can customized manufacture and design as per the
site demand, and increase other parts and system.
1.Simple structure
2.Anti-explosion
3.Anti-high temperature
4.Customization can be supported
5.Safe devices are installed(emergency stop)
6.Low noise
7.Environmental
8.Long lifetime
9.Stable start, soft start
10. Big starting power
11. Small impact to the geer reducer
4. Technique Parameter of Unlimited Distance Steel Rail Transfer
Cart , Research Battery Powered Heavy Duty Cart
| Model | KPX-5t | KPX-10t | KPX-20t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-80t | KPX-100t | KPX-150t |
| Rated Load | 5 | 10 | 20 | 25 | 30 | 40 | 50 | 80 | 100 | 150 |
| Table size | Length(L) | 3500 | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 6000 | 6500 | 10000 |
| Width(W) | 2000 | 2000 | 2200 | 2200 | 2200 | 2500 | 2500 | 2600 | 2800 | 3000 |
| Height(H) | 500 | 500 | 550 | 600 | 600 | 650 | 650 | 800 | 900 | 1200 |
| Wheel Base | 2500 | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4700 | 4900 | 7000 |
| Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 |
| Wheel Diameter | 300 | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 |
| Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 |
| Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 |
| Running Speed | 25 | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 |
| Motor Power | 1.2 | 2 | 3 | 3.5 | 4 | 5 | 6.3 | 10 | 15 | 15 |
| Battery Capacity | 180 | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 440 | 600 |
| Battery Voltage | 36 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 |
| Running Time When Full Load | 5.4 | 4.8 | 4 | 4 | 3.5 | 3.6 | 3.3 | 3.6 | 3.2 | 2.9 |
| Max Wheel Load | 25.8 | 42.6 | 77.7 | 94.5 | 110.4 | 142.8 | 174 | 278.4 | 343.8 | 265.2 |
| Reference Weight | 3.6 | 4.2 | 5.9 | 6.5 | 6.8 | 7.6 | 8 | 12.8 | 14.6 | 26.8 |
| Recommended Rail Model | P18 | P18 | P24 | P38 | P38 | P43 | P43 | P50 | QU100 | QU100 |
5. Our Company
Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a
collection of research, design, manufacture, installation and
after-sales service of electric handling bogie ,transfer carts as
one of the professional manufacturing company, which has a
modernized management team and excellent staff.And our prodcuts
gets CE, SASO,SGS,ISO certificate and other 8 national patent, our
products have been exported to more than 60 countries and
regions,such as Germany, Mexico, USA, Turkey, South Africa,
Singapore etc.
6. Our product exported to all over the world

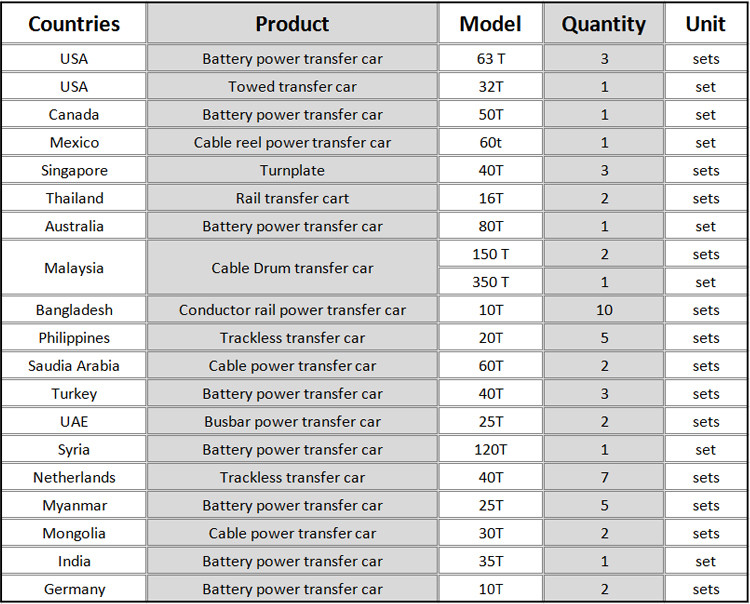

The picture showed is sectional sale data, hope the data can help
you learn well.
