KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton

Xinxiang Hundred Percent Electrical and Mechanical Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton from wholesalers

    Buy cheap KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton from wholesalers
    • Buy cheap KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton from wholesalers
    • Buy cheap KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton from wholesalers
    • Buy cheap KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton from wholesalers
    • Buy cheap KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton from wholesalers

    KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX-1T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 100 sets per month
    Delivery Time : 40-50 days as usual delivery30-40days for urgent delivery
    • Product Details
    • Company Profile

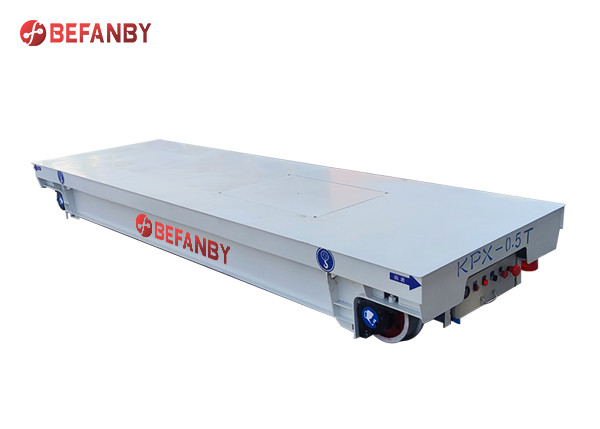

    KPX Steering Battery Transfer Cart Anti High Temperature 100 Ton

    Steering KPX 100 Ton Transfer Cart Manufacturer
    Working principle of 100 ton transfer cart manufacturer

    The transfer cart is powered by battery. The battery supply the power to the DC motor, which is installed inside or one side of car body. Through the order by remote control, to make the transfer cars start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive battery rail car working.


    Steering KPX 100 Ton Transfer Cart Manufacturer

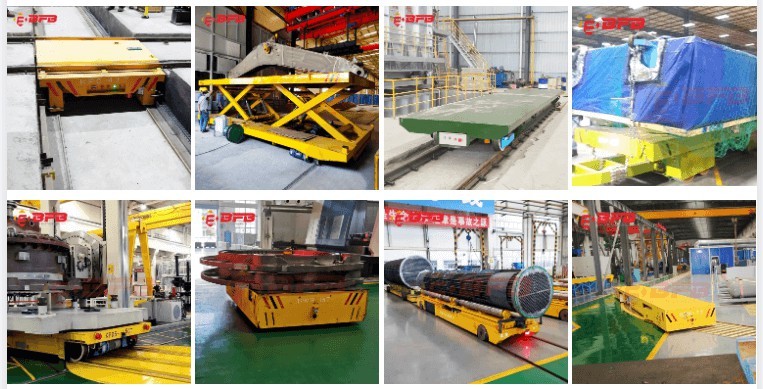

    The picture is just for reference, All transfer carts are customzied on demand


    Application of battery transfer cart

    The battery transfer cart is commonly applied in steel industry, worksop, warehouse, port, railway to transfer lhe required workpiece, It can be used within workshop handling or between workshops.

    Steering KPX 100 Ton Transfer Carts Manufacturer


    Technical parameters of battery 100 tons transfer cart
    Model
    KPX-2TKPX-10TKPX-20TKPX-30TKPX-50TKPX-63TKPX-150T
    Rated load (T)21020305063150
    Table sizelength(L)20003600400045005500560010000
    Width(W)1500200022002200250025003000
    Height(H)4505005506006507001200
    Wheel Base (mm)1200260028003200420043007000
    Rail Inner Gauge (mm)1200143514351435143514352000
    Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
    Wheel Quantity4444448
    Ground Clearance (mm)50505050507575
    Running speed (min)0-250-250-200-200-200-200-18
    Motor Power (Kw)11.62.23.556.315
    Battery Capacity(Ah)180160180250330400600
    Battery Voltage(V)24484848484872
    Running Time When Full Load4.324.843.53.332.9
    Running Distance for one Charge(Km)6.57.24.84.243.63.2
    Max Wheel Load (KN)14.442.677.7110.4174221.4265.2
    Reference Weight (t)2.84.25.96.8810.826.8
    Recommended Rail ModelP15P18P24P38P43P50QU100

    Steering KPX 100 Ton Transfer Carts Manufacturer

    100 tons transfer carts

    steering transfer carts
