Brand Name : | BEFANBY |
Model Number : | KPX-1T |
Certification : | CE,SGS,ISO9001 |
Price : | Negotiation |
Payment Terms : | 30% deposit by T/T in advance, 70%balance by T/T before dispatch |
Supply Ability : | 100 sets per month |
Delivery Time : | 40-50 days as usual delivery30-40days for urgent delivery |
The material handling rail car is powered by battery. The battery supply the power to the DC motor, which is installed inside or one side of car body. Through the order by remote control, to make the transfer cars start, stop, forward, back, speed governing, etc, electrical control system command the order to DC motor to drive battery rail car working.

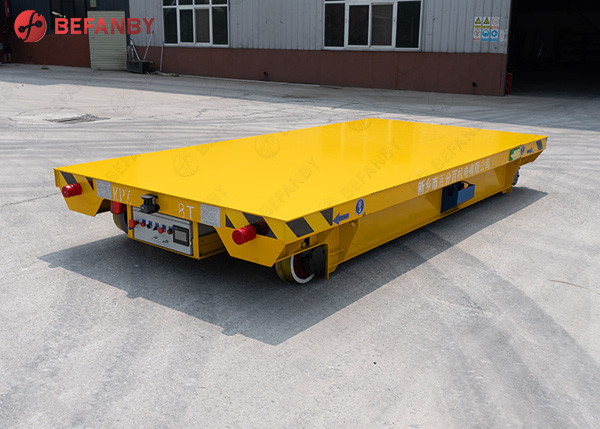

The picture is just for reference, All transfer carts are customzied on demand
The battery rail car is commonly applied in steel industry, worksop, warehouse, port, railway to transfer lhe required workpiece, It can be used within workshop handling or between workshops.
Model | KPX-2T | KPX-10T | KPX-20T | KPX-30T | KPX-50T | KPX-63T | KPX-150T | |
Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 | |
Table size | length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 | |
Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 | |
Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 | |
Rail Inner Gauge (mm) | 1200 | 1435 | 1435 | 1435 | 1435 | 1435 | 2000 | |
Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 | |
Running speed (min) | 0-25 | 0-25 | 0-20 | 0-20 | 0-20 | 0-20 | 0-18 | |
Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 | |
Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 | |
Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 | |
Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 | |
Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 | |
Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 | |
Reference Weight (t) | 2.8 | 4.2 | 5.9 | 6.8 | 8 | 10.8 | 26.8 | |
Recommended Rail Model | P15 | P18 | P24 | P38 | P43 | P50 | QU100 |
