Brand Name : | BEFANBY |
Model Number : | KPX |
Certification : | CE,SGS,ISO9001 |
Price : | Negotiation |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 1500 set/sets, per year |
Delivery Time : | 40-50 days as usual delivery,30-40days for urgent delivery |

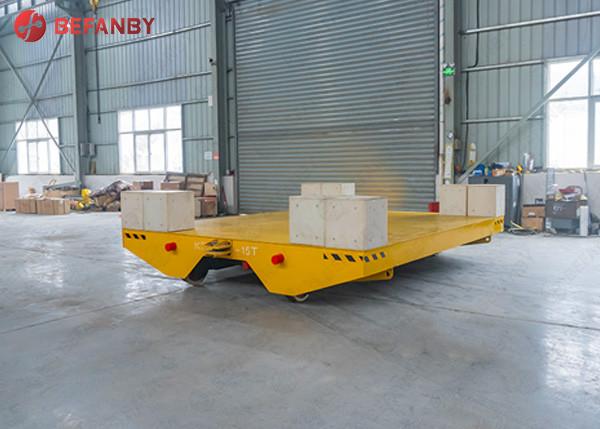

The battery operated transfer cart in the factory. It has the
superiority of simple structure, easy use, good maintenance, large carrying
capacity, environmental protection, and safe use. It can be widely
applied in factorys. Warehouses and inplants are used for
transportation in workshops or with cranes to transport heavy
objects across. Such as: raw materials, castings and forgings,
mold, girder, valve and welded parts, machined workpieces and
finished products, etc., can be used in special occasions without
power supply or long-distance transportation (AC power supply is
difficult) It is powered by batteries, and the service life of the
battery is about 5 years .
Application range: suitable for transportation in various environments, widely used
in metallurgy, coal, electromechanical, heavy industry,
shipbuilding, light industry and other enterprises.
Technical Parameter
1. Model: KPX
2. Capacity: 5mt
3. Table Size: 3500*1200*600mm
4. Power: Battery Powered
5. Running Speed: 0-20m/min
6. Operation: Hand Pendant + Remote Control
Model | KPX-10t | KPX-16t | KPX-25t | KPX-30t | KPX-40t | KPX-50t | KPX-63t | KPX-80t | KPX-100t | KPX-150t | |
Rated Load | 10 | 16 | 25 | 30 | 40 | 50 | 63 | 80 | 100 | 150 | |
Table size | Length(L) | 3600 | 4000 | 4500 | 4500 | 5000 | 5500 | 5600 | 6000 | 6500 | 10000 |
Width(W) | 2000 | 2000 | 2200 | 2200 | 2500 | 2500 | 2500 | 2600 | 2800 | 3000 | |
Height(H) | 500 | 550 | 600 | 600 | 650 | 650 | 700 | 800 | 900 | 1200 | |
Wheel Base | 2600 | 2800 | 3200 | 3200 | 3800 | 4200 | 4300 | 4700 | 4900 | 7000 | |
Rail Inner Gauage | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1435 | 1800 | 2000 | 2000 | |
Wheel Diameter | 300 | 350 | 400 | 400 | 500 | 500 | 600 | 600 | 600 | 600 | |
Wheel Quantity | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 8 | |
Ground Clearance | 50 | 50 | 50 | 50 | 50 | 50 | 75 | 75 | 75 | 75 | |
Running Speed | 25 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 18 | |
Motor Power | 2 | 2.2 | 3.5 | 4 | 5 | 6.3 | 8 | 10 | 15 | 15 | |
Battery Capacity | 160 | 180 | 250 | 250 | 300 | 330 | 400 | 400 | 440 | 600 | |
Battery Voltage | 48 | 48 | 48 | 48 | 48 | 48 | 48 | 72 | 72 | 72 | |
Max Wheel Load | 42.6 | 64.5 | 94.5 | 110.4 | 142.8 | 174 | 221.4 | 278.4 | 343.8 | 265.2 | |
Reference Weight | 4.2 | 5.5 | 6.5 | 6.8 | 7.6 | 8 | 10.8 | 12.8 | 14.6 | 26.8 |
All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
