    Workshop Railroad Motorized Trolley Carts For Die Transfer

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPJ-1-1500t
    Certification : CE,SGS,ISO9001
    Price : $4000-$6000/ per set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000 sets one year
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

    Workshop Railroad Motorized Trolley Carts For Die Transfer

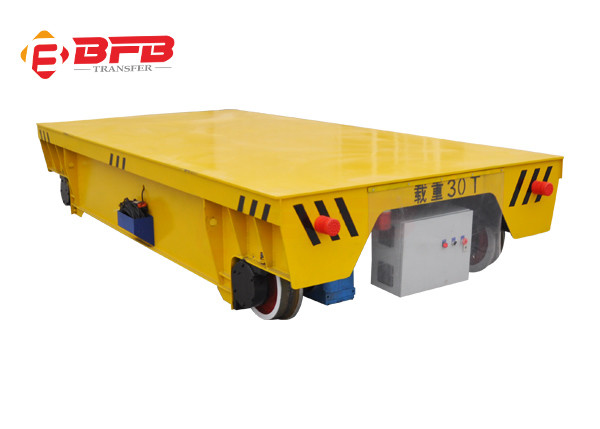

    Workshop Motorized Railroad Car For Die Transfer


    1. About BEFANBY Product


    I. Working principle:The motorized railroad car are powered by spring cable drums which installed at the bottom of the railroad cars or one side of the motorized car. The one side of AC 380V cable is connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.

    II. Main parts: Trolley frame, Trolley wheels, AC motor, Gear Reducer, Cable drum, Cable arranger, Electrical control box,Hand-held pendant, Remote Control, Alarm Light


    Remark: The railroad car power is for reference, More information, please contact us. And we will provide you proper solution to you.


    II. Technical parameter


    ModelKPJ 6TKPJ-50TKPJ-150T
    Rated Load(t)6T50T150T
    Table Size(mm)3500*2000*5505500*2500*70010000*3000*1200
    Wheel Base(mm)260042007000
    Rail Gauge(mm)143514352000
    Wheel Diameter(mm)300500600
    Wheel Quantity448
    Ground Clearance(mm)505075
    Running Speed(m/min)202020
    Motor Power1.55.515
    Max Wheel Load(KN)25.8174265.2
    Reference Weight(t)3.57.826.2
    Recommended Rail ModelP18P43QU100

    If you are interrested in our product, pls contact us.

    Thank you very much, and have a good time!

    Workshop Motorized Railroad Car For Die TransferWorkshop Motorized Railroad Car For Die Transfer

    Workshop Motorized Railroad Car For Die Transfer


    Workshop Motorized Railroad Car For Die Transfer

    2. BEFANBY Company


    Workshop Motorized Railroad Car For Die Transfer


    Our customers from all over ther world, and BEFANBY product has exported to Thailand, Indonesia, Malaysia, Singapore, UAE, Saudi Arabia, South Korea, Mexico, etc.



    Workshop Motorized Railroad Car For Die Transfer

    Workshop Motorized Railroad Car For Die Transfer


    Tag: Railway Transfer Trolley, Cable Drum Power Transfer Trolley
