    12T Railway Motorized Transfer Trolley Flat Cargo Carriage

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPJ-12T
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : 30% deposit by T/T in advance, 70%balance by T/T before dispatch
    Supply Ability : 600 sets one year
    Delivery Time : 50-60 days as usual delivery,40-50days for urgent delivery
    • Product Details
    • Company Profile

    12T Railway Motorized Transfer Trolley Flat Cargo Carriage

    12T Railway Flat Cargo Carriage Manufacturer

    About BEFANBY product


    Working principle:The railway flat cargo carriage is powered by cable reels at the bottom of the carriages. One end of AC 380V cable is connected with the power source and the other end is linked to the ac motor. The cable is wound around cable reel.

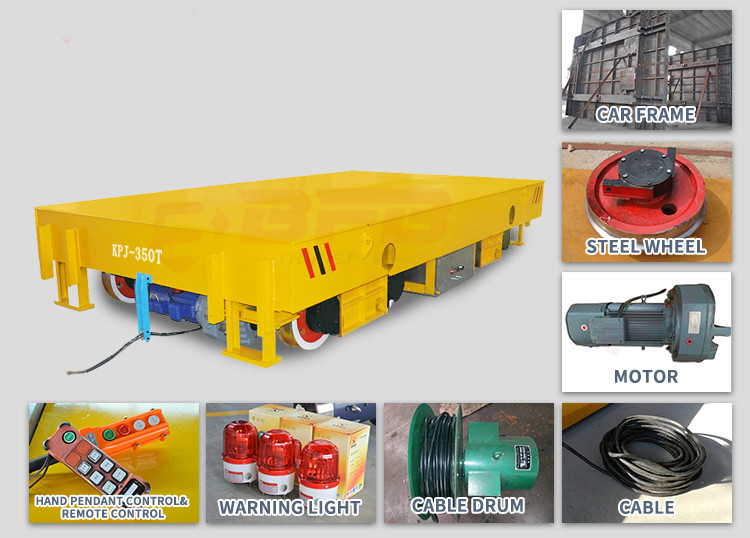

    Main parts: Cart frame, railway wheels, AC motor, gear reducer, cable drum, cable arranger, electrical control box,hand-held pendant, remote controller, alarm light

    Advantages:

    1. Simple structure

    2. Low cost

    3. Unlimited using time

    4. No strict requirements of the railway's construction.

    Technical parameter

    ModelKPJ-12T
    Rated Load(t)12T
    Table Size(mm)5500*2500*700
    Wheel Base(mm)4200
    Rail Gauge(mm)1435
    Wheel Diameter(mm)300
    Wheel Quantity4
    Ground Clearance(mm)50
    Running Speed(m/min)20
    Motor Power5.5
    Running Distance50
    Max Wheel Load(KN)174
    Reference Weight(t)7.8
    Recommended Rail ModelP38

    If you are interrested in our product, pls contact us.

    Thank you very much, and have a good time!
