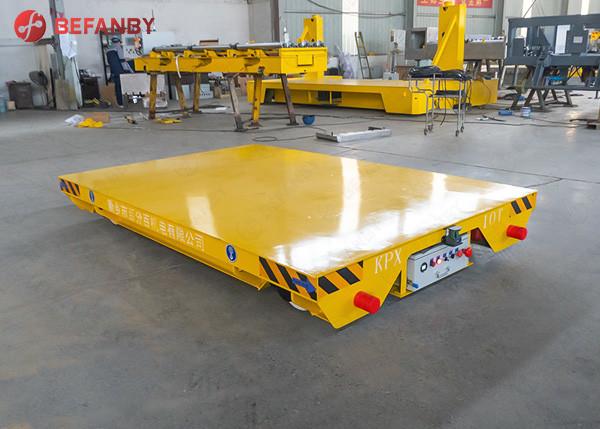

    20T Steel Pipe Battery Transfer Cart Lifting With Rail Wheel

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : KPX
    Certification : CE,SGS,ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 800 set/sets, per year
    Delivery Time : 40-50 days as usual delivery,30-40days for urgent delivery
    • Product Details
    • Company Profile

    20T Steel Pipe Battery Transfer Cart Lifting With Rail Wheel

    20T Steel Pipe Transport Rail Wheel Transfer Car With Lifting

    Rail wheel transfer car is an advanced electric transfer cart transport vehicle for short distance construction in enterprises, which can effectively solve the freight transportation between workshops. it is mainly composed of four-wheel steering system, battery, dc motor, high-voltage bearing, lifting device, cart body frame, driving control device, electrical components, etc. the whole frame is easy to split and transport. rail wheel transfer car has the characteristics of smooth driving, easy lifting control, large torque, large bearing capacity and long service life. it is widely used in equipment manufacturing, mining, machinery, heavy industry and textile light industry. in the use of rail wheel transfer car, it has the advantages of simple operation, easy to move, maintenance and not limited by the distance, low noise, strong power, strong bearing capacity, strong mobility, large traction, and can operate normally in harsh environment. in the construction process, the hydraulic lifting rail wheel transfer car not only has high safety performance, but also is easy to operate and master, which can effectively improve the work efficiency and reduce the construction cost.


    Technique Parameter
    ModelKPX-10tKPX-16tKPX-25tKPX-30tKPX-40tKPX-50tKPX-63tKPX-80tKPX-100tKPX-150t
    Rated Load1016253040506380100150
    Table sizeLength(L)36004000450045005000550056006000650010000
    Width(W)2000200022002200250025002500260028003000
    Height(H)5005506006006506507008009001200
    Wheel Base2600280032003200380042004300470049007000
    Rail Inner Gauage1435143514351435143514351435180020002000
    Wheel Diameter300350400400500500600600600600
    Wheel Quantity4444444448
    Ground Clearance50505050505075757575
    Running Speed25202020202020202018
    Motor Power22.23.5456.38101515
    Battery Capacity160180250250300330400400440600
    Battery Voltage48484848484848727272
    Max Wheel Load42.664.594.5110.4142.8174221.4278.4343.8265.2
    Reference Weight4.25.56.56.87.6810.812.814.626.8

    Application


    Transporting Cargoes: the rail transfer car is suitable for various industries, steel mill, transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc.


    From one location to another; paper roll plant: transfer paper coil painting shops: transfer work piece into the painting room sand blasting room other industries: shipbuilding, quarries, warehouses and multi-bay workshops, etc


    20T Steel Pipe Battery Transfer Cart Lifting With Rail Wheel20T Steel Pipe Battery Transfer Cart Lifting With Rail Wheel

    All can be customized as per customers’ requirement.And BEFANBY business is meeting your business need, hope our professional team can help you well with rich experience.
