    Easy Operation No Powered Transfer Trolley

    Ask Lasest Price
    Brand Name : BEFANBY
    Model Number : BWT
    Certification : CE, SGS, ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1500 sets per year
    Delivery Time : 15-20 working days for usual delivery
    • Product Details
    • Company Profile

    Easy Operation No Powered Transfer Trolley

    Easy Operation No Powered Transfer Trolley

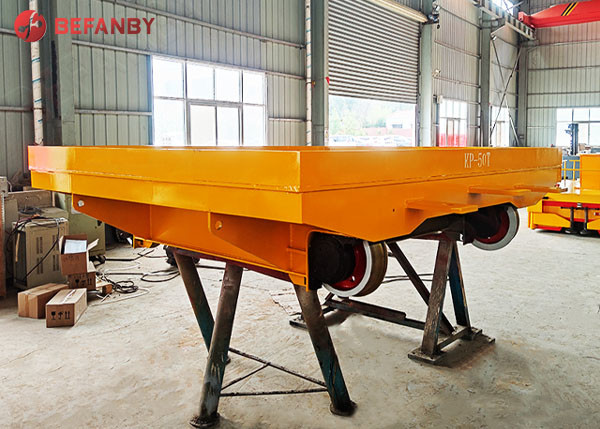

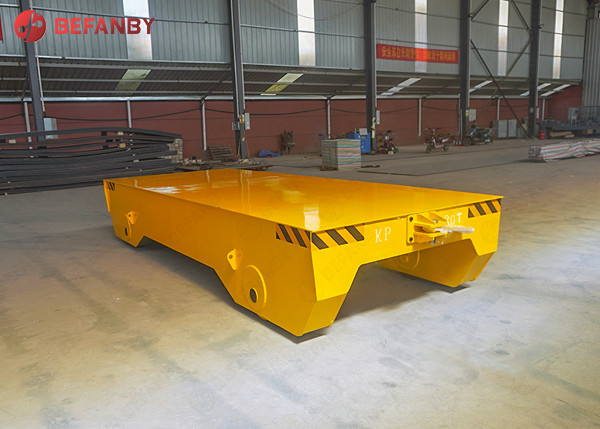

    The no powered rail transfer cart is a kind of handling equipment that runs on the track by external traction or human push. It has a simple structure and stable operation. It is widely used in the medium and short distance transportation of workpieces and materials. The rail trailer body has no drive system, so the maintenance cost is low. It is suitable for material turnover workshops or scenes that require multi-vehicle collaborative transportation.


    The equipment has the advantages of strong bearing capacity, stable operation, and solid structure. It is suitable for a variety of handling occasions, such as: machinery manufacturing, metallurgical casting, mold transfer and other industries. According to the shape of the transported material and the working conditions, the car table can be customized with V-frames, guardrails, roller devices and other structures to meet the needs of various material handling.


    Advantages of unpowered transfer vehicle

    • Box girder structure, not easy to deform
    • Low cost with high frequency
    • Anti-explosion and anti- high temperature
    • Cab be towed or push by worker
    • Durable and environmental

    Easy Operation No Powered Transfer Trolley


    Main of no power transfer vehicle

    The main parts of the forklift transfer cart includes cart frame, towed hook, cast wheel, control box, etc.


    Easy Operation No Powered Transfer Trolley

    The parameter of non power steel coil trailer
    ModelKP-2tKP-20tKP-50tKP-100tKP-150t
    Rated Load(t)22050100150
    Table Size(mm)Length(L)200040005500650010000
    Width(W)15002200250028003000
    Heigth(H)4505506508501200
    Wheel Base(mm)12002800420049007000
    Rail Inner Gauge(mm)12001435143520002000
    Wheel Diameter(mm)270350500600600
    Wheel Quantity44448
    Ground Clearance(mm)5050507575
    Max Wheel Load(KN)14.477.7174343.8265.2
    Reference Weight(t)2.85.9814.626.8
    Recommended Rail ModelP15P24P43QU100QU100

    Easy Operation No Powered Transfer Trolley

    Company Introduce


    Xinxiang Hundred Percent Electrical and Mechanical Co., Ltd is a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 40 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.

    Easy Operation No Powered Transfer TrolleyEasy Operation No Powered Transfer TrolleyEasy Operation No Powered Transfer Trolley

    You can copy the following options and click here to select your specific requirement for the transfer cart to send us. And then the proper solution and price will be sent to you.


    1. The load capacity of the transfer cart is ( ) ton.


    2. The table size is ( ) mm (L) * ( ) mm (W)*( ) mm (H).


    3. The transfer cart runs on the rails or common floor?


    4. Whether exist turning?


    5. Whether has other special requirement?
