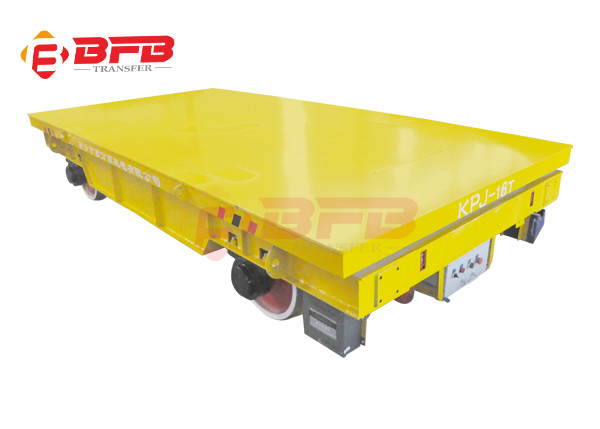

    Steel Sand Blasting Motorized Transfer Trolley Workshop Frame Type

    Workshop Frame Type Sand Blasting Rail Trolley For Sale


    1. About BEFANBY Product


    I. Working principle:The sand blasting rail trolley are powered by spring cable reels which generally installed at the bottom of the trolleys or one side of the trolleys if the table size required smaller. The one side of AC 380V cable is connected with the power source and the other side is linked to the motor. The cable is wound around cable drum.

    II. Main parts: trolley frame, rail wheels, AC motor, Gear Reducer, Cable drum, Cable arranger, Electrical control box,Hand-held pendant, Remote Control, Alarm Light

    Workshop Frame Type Sand Blasting Rail Trolley For Sale


    Workshop Frame Type Sand Blasting Rail Trolley For Sale

    Workshop Frame Type Sand Blasting Rail Trolley For Sale

    Workshop Frame Type Sand Blasting Rail Trolley For Sale


    III. Product Manufacturing Processing


    BEFANBY promise that quality is always the first things for us, and BEFANBY specially set up a quality inspection department. Every time we complete a set transfer trolley, we must carry out strict quality control, including the appearance of electric transfer trolley, the operation of electric transfer trolley, etc.

    rail trolley for sale


    IV. Technical parameter


    ModelKPJ 6TKPJ-50TKPJ-150T
    Rated Load(t)6T50T150T
    Table Size(mm)3500*2000*5505500*2500*70010000*3000*1200
    Wheel Base(mm)260042007000
    Rail Gauge(mm)143514352000
    Wheel Diameter(mm)300500600
    Wheel Quantity448
    Ground Clearance(mm)505075
    Running Speed(m/min)202020
    Motor Power1.55.515
    Max Wheel Load(KN)25.8174265.2
    Reference Weight(t)3.57.826.2
    Recommended Rail ModelP18P43QU100

    If you are interrested in our product, pls contact us.

    Thank you very much, and have a good time!


    workshop rail trolleys


    2. BEFANBY Company


    cable drum rail trolley


    Our customers from all over ther world, and BEFANBY product has exported to Thailand, Australia, Malaysia, Singapore, UAE, Saudi Arabia, South Korea, Mexico, etc.
